CNMM 866-NR2:T8430
CNMM 866-NR2:T8430

CNMM 866-NR2:T8430

UGC DOR7977342
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.79 CAD - $63.79 CAD
$63.79 CAD
$63.79 CAD - $63.79 CAD
$63.79 CAD

Vendu en lots de : 5

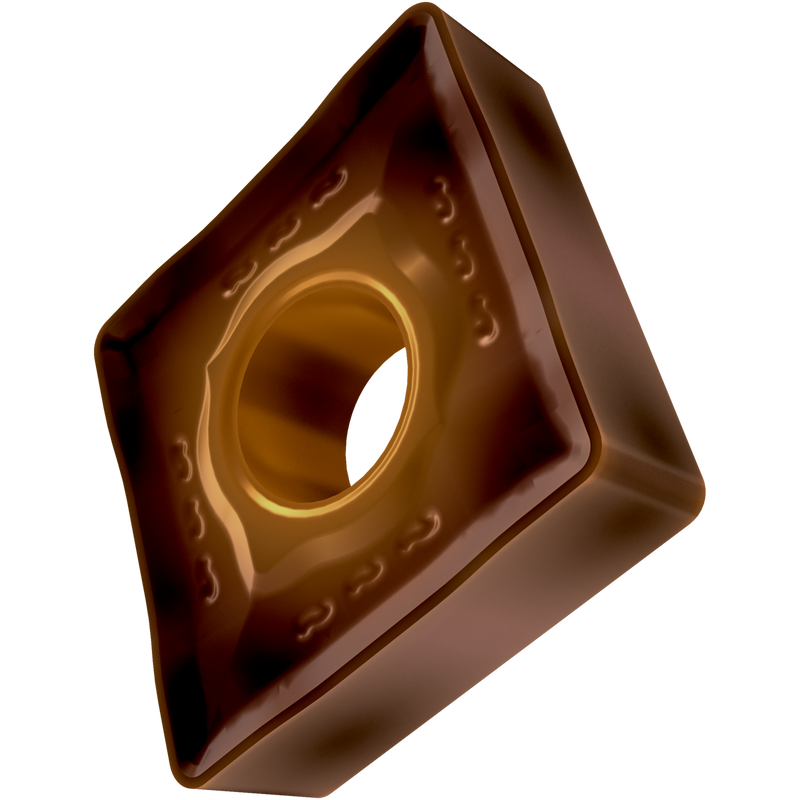

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 25,4 mm, épaisseur de 9,52 mm, rayon de pointe de 2,4 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NR2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20-P40 et M20-M35, pour l'usinage moyen à très lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 866-NR2:T8430
Product Name (ISO)CNMM 250924E-NR2:T8430
GradeT8430
Chipbreaker (CBMD)NR2
Product Number7977342
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle de 80° inclus, rhomboédrique
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Tool Information
Reference Numbers
EDP Number7977342
EAN3603603819283
File Type Download
CNMM 866-NR2:T8430 — Line Drawing PDF Download
