CNMM 866S-923:T8430
CNMM 866S-923:T8430

CNMM 866S-923:T8430

UGC DOR7977344
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.79 CAD - $63.79 CAD
$63.79 CAD
$63.79 CAD - $63.79 CAD
$63.79 CAD

Vendu en lots de : 5

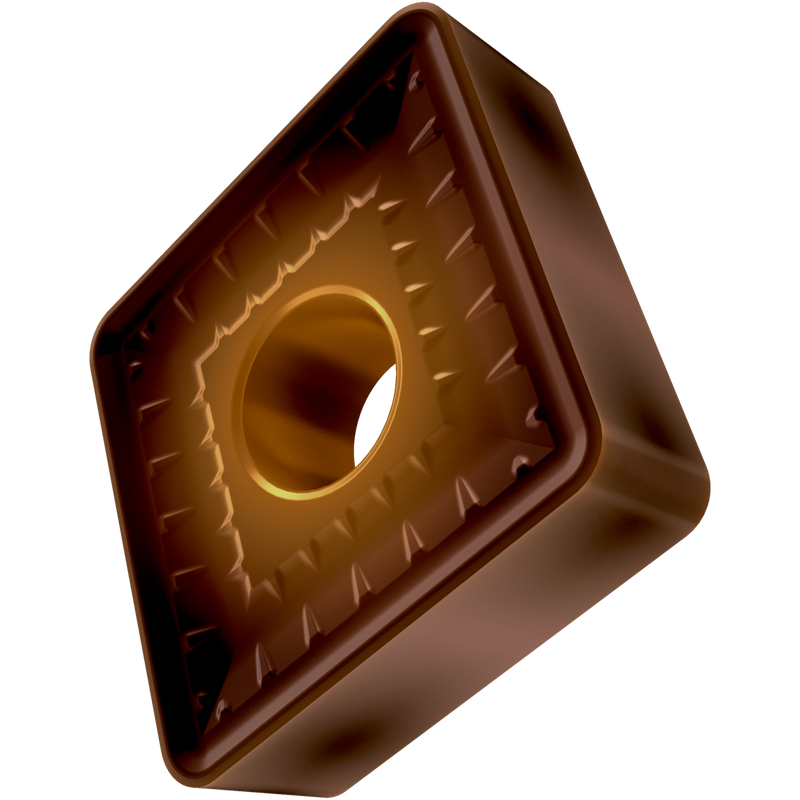

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 25,4mm, 9,52mm d'épaisseur, rayon de bec de 2,4mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux 923 avec arêtes de coupe arrondies et facette, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage lourd à très lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 866S-923:T8430
Product Name (ISO)CNMM 250924S-923:T8430
GradeT8430
Chipbreaker (CBMD)923
Product Number7977344
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle dièdre de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Tool Information
Reference Numbers
EDP Number7977344
EAN3603603819306
File Type Download
CNMM 866S-923:T8430 — Line Drawing PDF Download
