DNMG 331-NF:T8430
DNMG 331-NF:T8430

DNMG 331-NF:T8430

UGC DOR7977347
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.90 CAD - $17.90 CAD
$17.90 CAD
$17.90 CAD - $17.90 CAD
$17.90 CAD

Vendu en lots de : 10

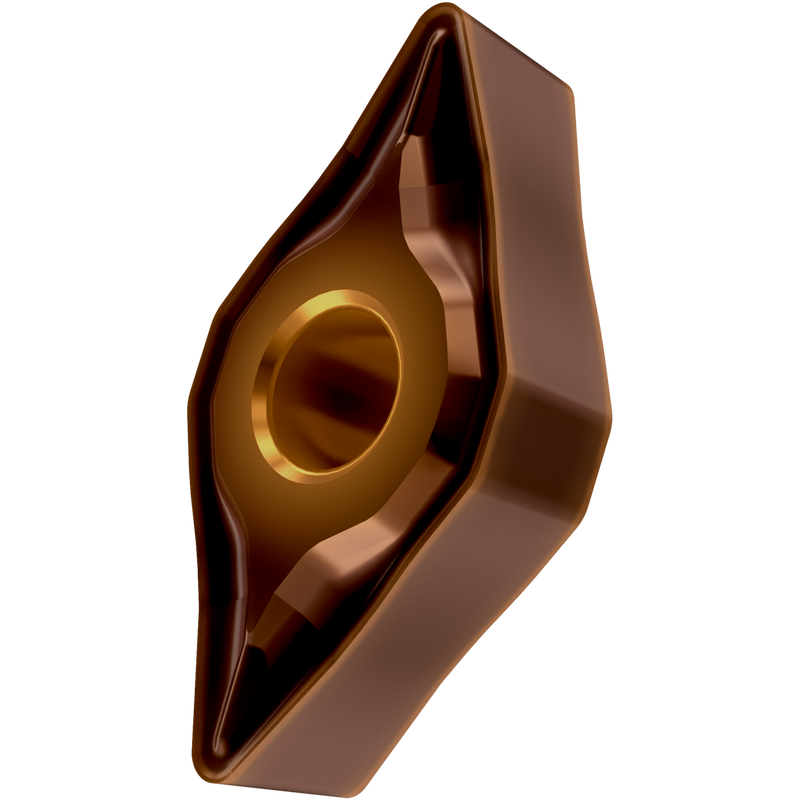

Plaquette négative double face, rhomboïde 55° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm, rayon de bec de 0,4 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux NF avec arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 331-NF:T8430
Product Name (ISO)DNMG 110404E-NF:T8430
GradeT8430
Chipbreaker (CBMD)NF
Product Number7977347
Product FamilyDNMG

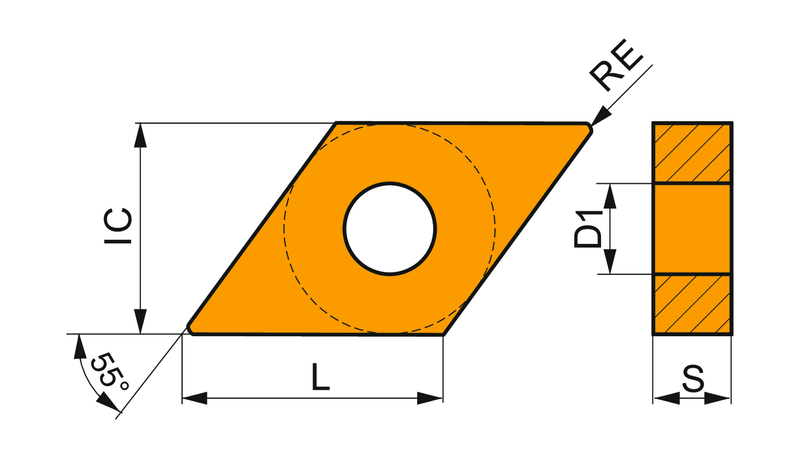

Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle inclus rhombique 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977347
EAN3603603819337
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
DNMG 331-NF:T8430 — Line Drawing PDF Download
