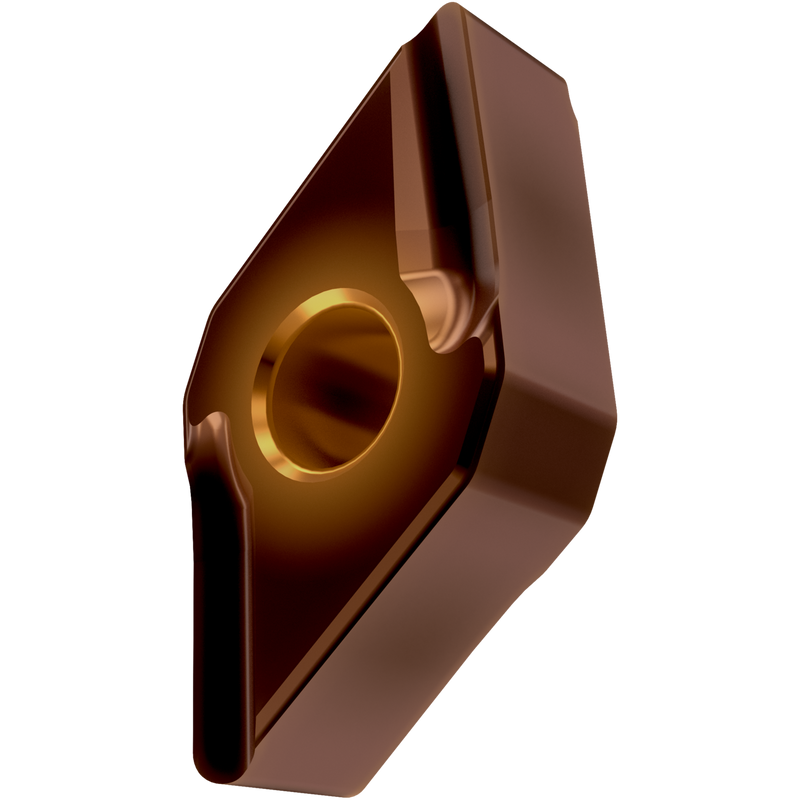

DNMG 432L-SI:T8430
DNMG 432L-SI:T8430

DNMG 432L-SI:T8430

UGC DOR7977364
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.21 CAD - $21.21 CAD
$21.21 CAD
$21.21 CAD - $21.21 CAD
$21.21 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, rayon de bec de 0,8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux SI avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20-P40 et M20-M35, pour l'usinage moyen à lourd des aciers et des aciers inoxydables avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 432L-SI:T8430
Product Name (ISO)DNMG 150408EL-SI:T8430
GradeT8430
Chipbreaker (CBMD)Oui
Product Number7977364
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle inclus rhomboïdal 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977364
EAN3603603819504
File Type Download
DNMG 432L-SI:T8430 — Line Drawing PDF Download
