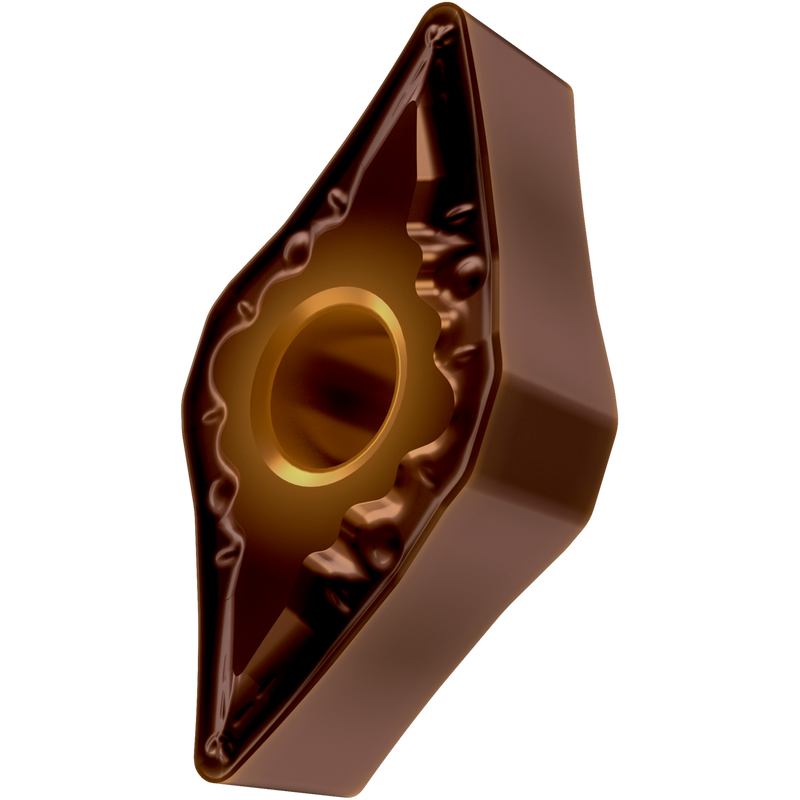

DNMG 443-FM:T8430
DNMG 443-FM:T8430

DNMG 443-FM:T8430

UGC DOR7977377
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.93 CAD - $22.93 CAD
$22.93 CAD
$22.93 CAD - $22.93 CAD
$22.93 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec cercle inscrit de 12,7mm de diamètre, 6,35mm d'épaisseur, rayon de bec 1,2mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20-P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 443-FM:T8430
Product Name (ISO)DNMG 150612E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7977377
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle interne rhomboïdal de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number7977377
EAN3603603819634
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
DNMG 443-FM:T8430 — Line Drawing PDF Download
