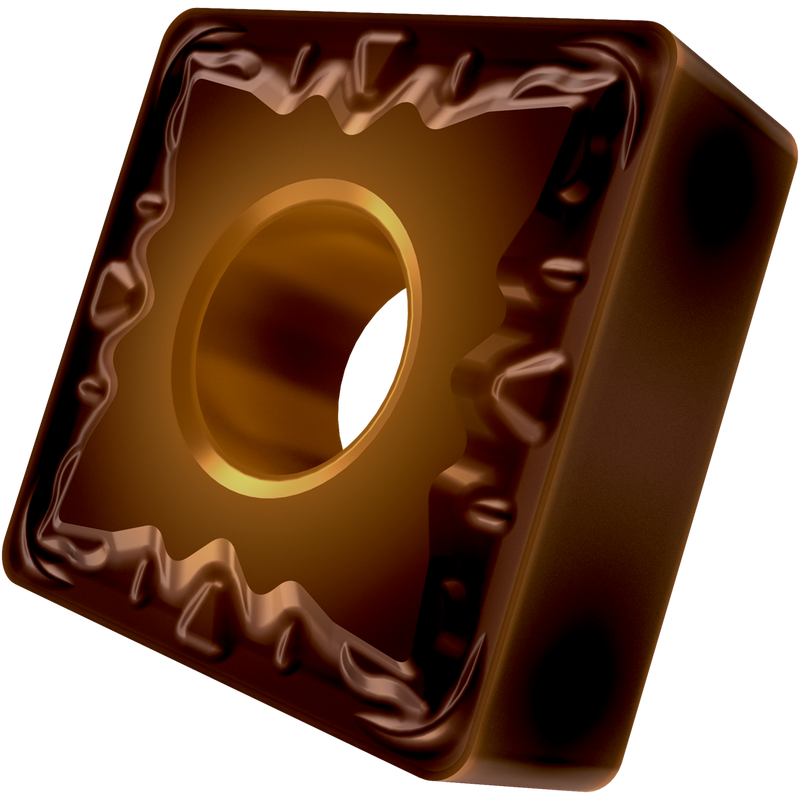

SNMG 434-FM:T8430
SNMG 434-FM:T8430

SNMG 434-FM:T8430

UGC DOR7977389
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette négative double-face, carrée avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, rayon de bec de 1,6 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la plage ISO P20-P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 434-FM:T8430
Product Name (ISO)SNMG 120416E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7977389
Product FamilySNMG
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)S - square
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number7977389
EAN3603603819757
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Possible use
S — High Temperature Alloys Possible use
File Type Download
SNMG 434-FM:T8430 — Line Drawing PDF Download
