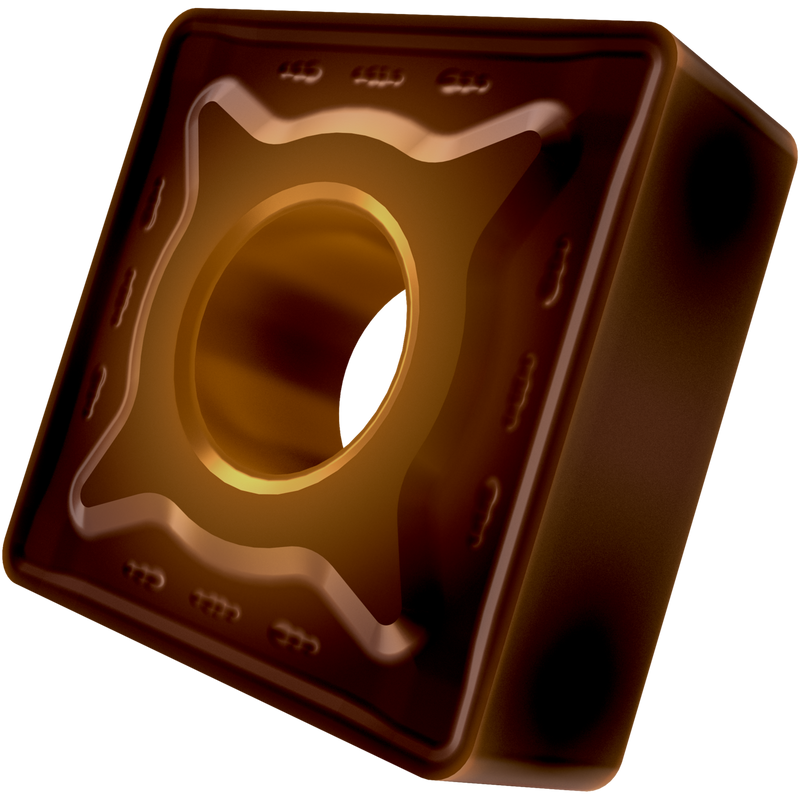

SNMG 434-RM:T8430
SNMG 434-RM:T8430

SNMG 434-RM:T8430

UGC DOR7977390
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, rayon de bec de 1,6 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage moyen à lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 434-RM:T8430
Product Name (ISO)SNMG 120416E-RM:T8430
GradeT8430
Chipbreaker (CBMD)RM
Product Number7977390
Product FamilySNMG
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)S - square
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number7977390
EAN3603603819764
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Possible use
S — High Temperature Alloys Possible use
File Type Download
SNMG 434-RM:T8430 — Line Drawing PDF Download
