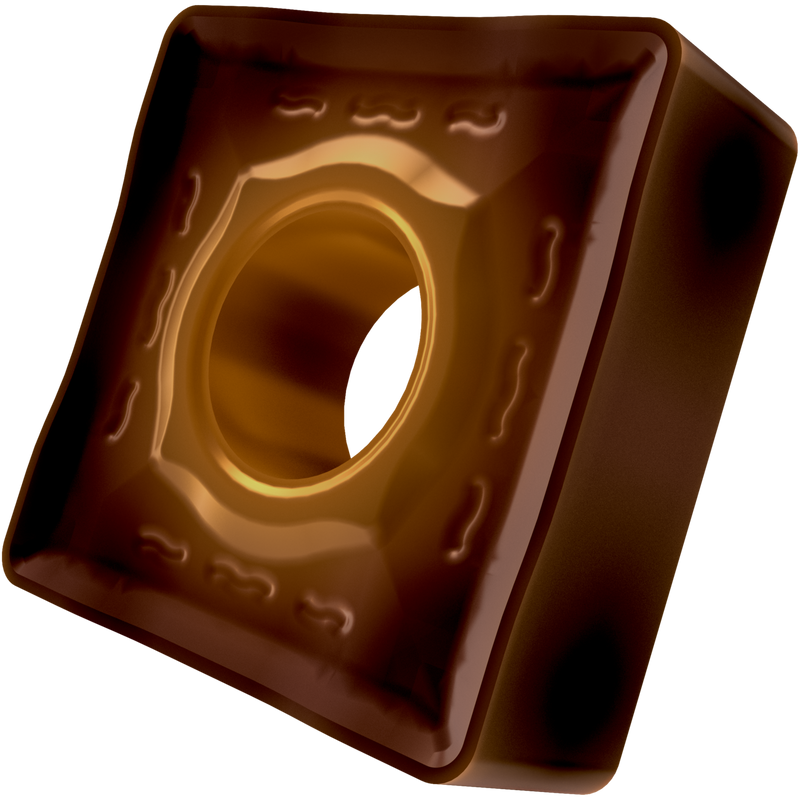

SNMM 433-NR2:T8430
SNMM 433-NR2:T8430

SNMM 433-NR2:T8430

UGC DOR7977392
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette double face négative, carrée, avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, un rayon de bec de 1,2 mm, une précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NR2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage moyen à très lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 433-NR2:T8430
Product Name (ISO)SNMM 120412E-NR2:T8430
GradeT8430
Chipbreaker (CBMD)NR2
Product Number7977392
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number7977392
EAN3603603819788
File Type Download
SNMM 433-NR2:T8430 — Line Drawing PDF Download
