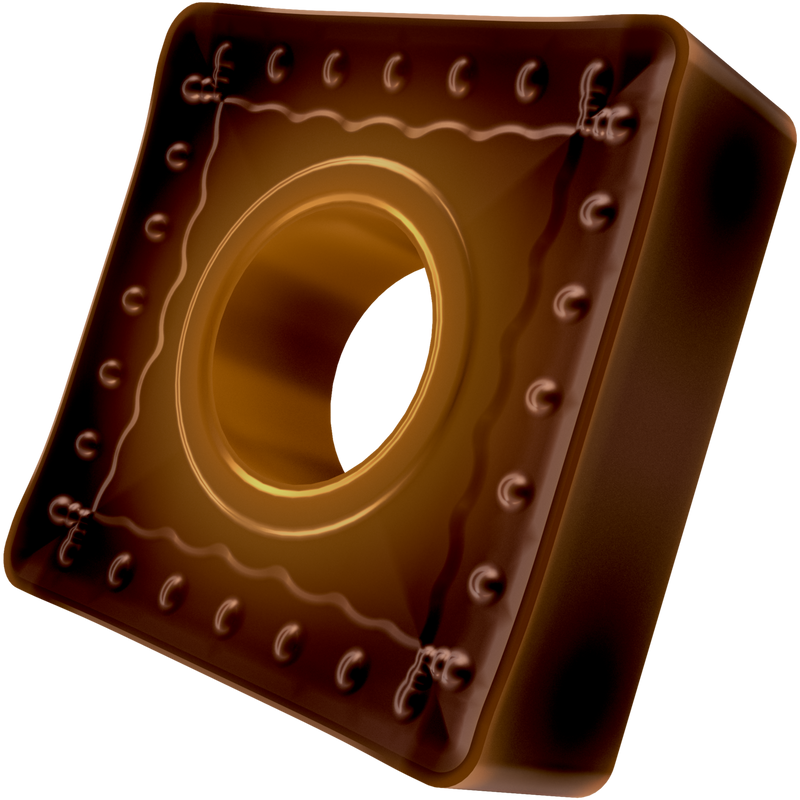

SNMM 643-OR:T8430
SNMM 643-OR:T8430

SNMM 643-OR:T8430

UGC DOR7977394
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.14 CAD - $30.14 CAD
$30.14 CAD
$30.14 CAD - $30.14 CAD
$30.14 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 19,05 mm, 6,35 mm d'épaisseur, un rayon de bec de 1,2 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux OR avec des arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans la plage ISO P20 -P40, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 643-OR:T8430
Product Name (ISO)SNMM 190612E-OR:T8430
GradeT8430
Chipbreaker (CBMD)OU_
Product Number7977394
Product FamilySNMM
Insert Geometry
Insert DesignMMNS
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number7977394
EAN3603603819801
File Type Download
SNMM 643-OR:T8430 — Line Drawing PDF Download
