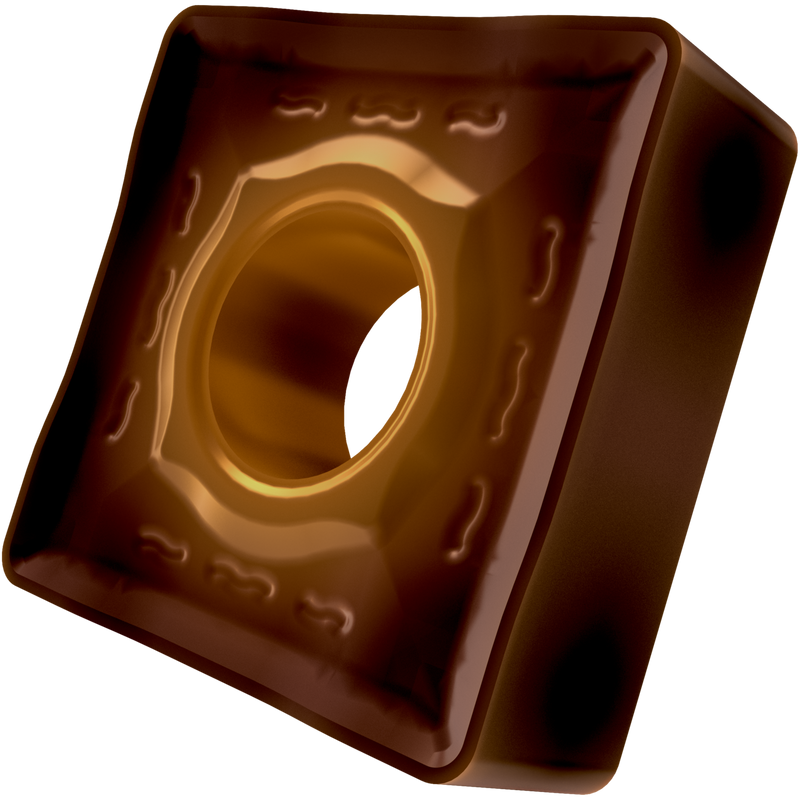

SNMM 644-NR2:T8430
SNMM 644-NR2:T8430

SNMM 644-NR2:T8430

UGC DOR7977395
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.14 CAD - $30.14 CAD
$30.14 CAD
$30.14 CAD - $30.14 CAD
$30.14 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 19,05 mm, de 6,35 mm d'épaisseur, rayon de bec de 1,6 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux NR2 avec des arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage moyen à très lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 644-NR2:T8430
Product Name (ISO)SNMM 190616E-NR2:T8430
GradeT8430
Chipbreaker (CBMD)NR2
Product Number7977395
Product FamilySMNM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number7977395
EAN3603603819818
File Type Download
SNMM 644-NR2:T8430 — Line Drawing PDF Download
