SNMM 644-OR:T8430
SNMM 644-OR:T8430

SNMM 644-OR:T8430

UGC DOR7977396
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.14 CAD - $30.14 CAD
$30.14 CAD
$30.14 CAD - $30.14 CAD
$30.14 CAD

Vendu en lots de : 10

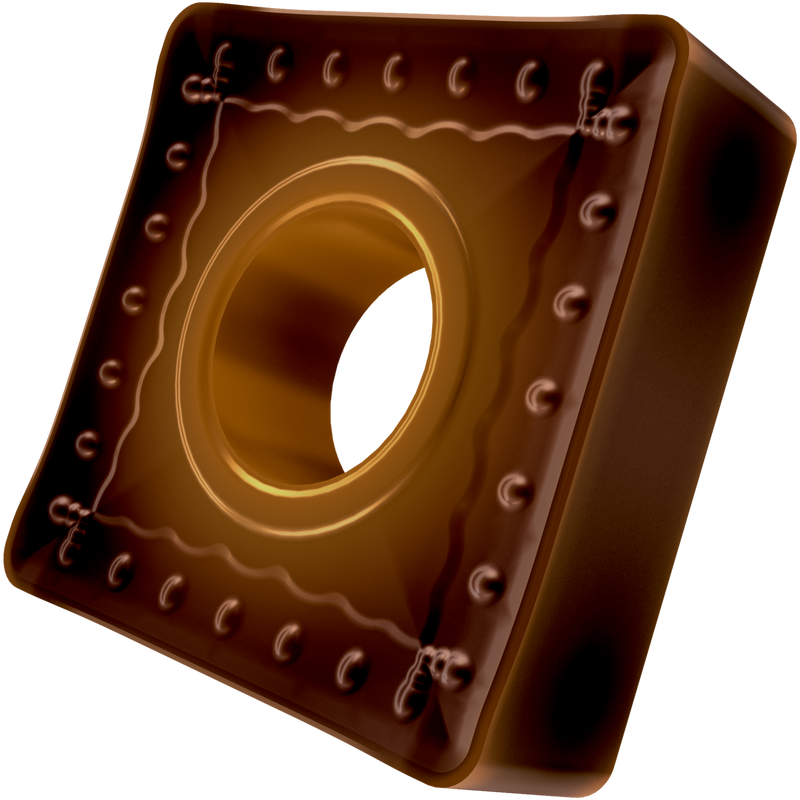

Plaquette négative double face, carrée avec cercle inscrit de 19,05mm de diamètre, 6,35mm d'épaisseur, rayon de bec de 1,6mm, précision de positionnement selon ISO-tolérance classe-M, brise-copeaux OR avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la plage ISO P20 -P40, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 644-OR:T8430
Product Name (ISO)SNMM 190616E-OR:T8430
GradeT8430
Chipbreaker (CBMD)OU_
Product Number7977396
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)S - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number7977396
EAN3603603819825
File Type Download
SNMM 644-OR:T8430 — Line Drawing PDF Download
