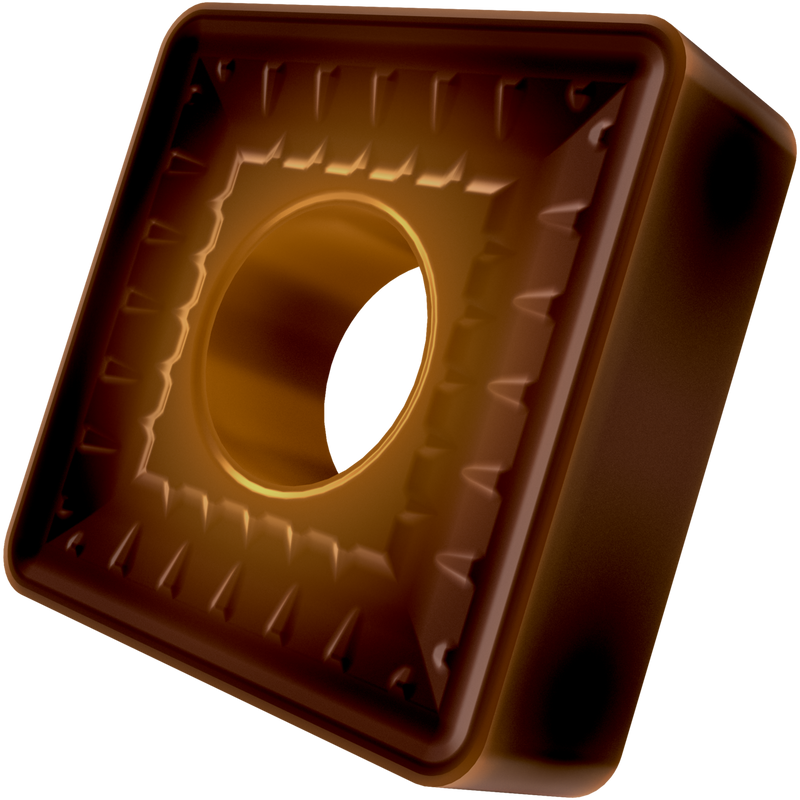

SNMM 644S-923:T8430
SNMM 644S-923:T8430

SNMM 644S-923:T8430

UGC DOR7977397
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.14 CAD - $30.14 CAD
$30.14 CAD
$30.14 CAD - $30.14 CAD
$30.14 CAD

Vendu en lots de : 10

Plaquette négative double face pour tournage, carrée avec cercle inscrit de 19,05 mm de diamètre, 6,35 mm d'épaisseur, rayon de bec de 1,6 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux 923 avec arêtes de coupe arrondies avec facette, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage lourd à très lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 644S-923:T8430
Product Name (ISO)SNMM 190616S-923:T8430
GradeT8430
Chipbreaker (CBMD)923
Product Number7977397
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number7977397
EAN3603603819832
File Type Download
SNMM 644S-923:T8430 — Line Drawing PDF Download
