SNMM 856S-923:T8430
SNMM 856S-923:T8430

SNMM 856S-923:T8430

UGC DOR7977399
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.57 CAD - $55.57 CAD
$55.57 CAD
$55.57 CAD - $55.57 CAD
$55.57 CAD

Vendu en lots de : 10

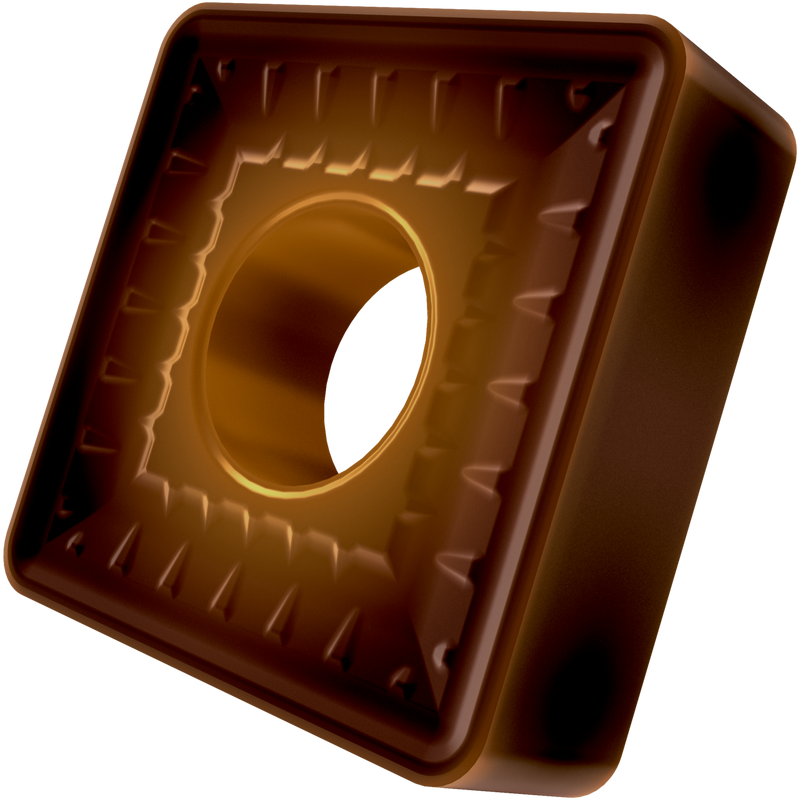

Plaquette négative double-face, carrée avec un cercle inscrit de diamètre 25,4 mm, 7,94 mm d'épaisseur, rayon de pointe de 2,4 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux 923 avec arêtes de coupe arrondies avec facette, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20-P40 et M20-M35, pour l'usinage lourd à extra-lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 856S-923:T8430
Product Name (ISO)SNMM 250724S-923:T8430
GradeT8430
Chipbreaker (CBMD)923
Product Number7977399
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Tool Information
Reference Numbers
EDP Number7977399
EAN3603603819856
File Type Download
SNMM 856S-923:T8430 — Line Drawing PDF Download
