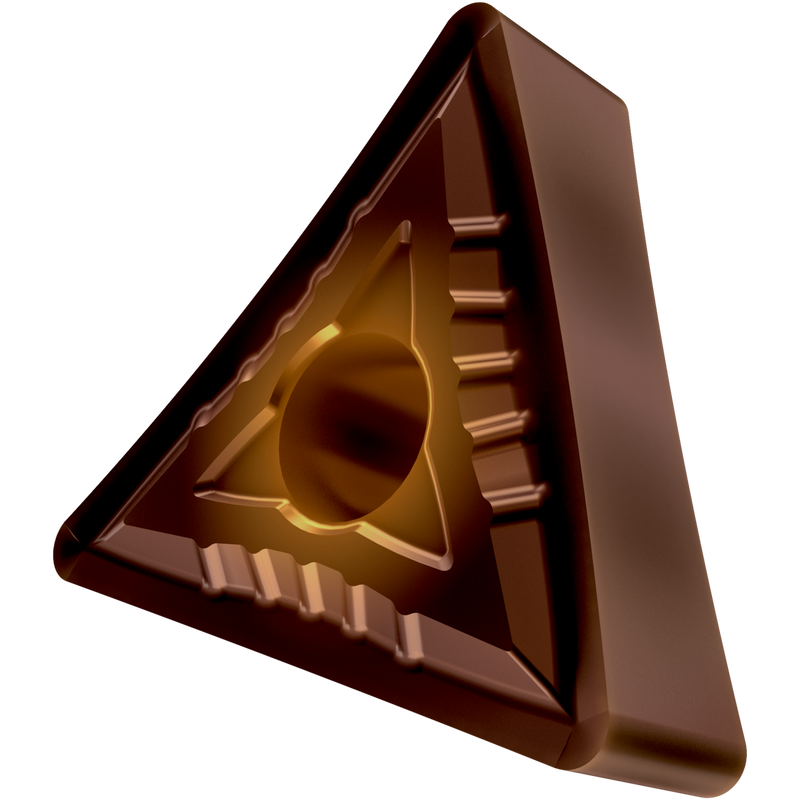

TNMG 332-SF:T8430
TNMG 332-SF:T8430

TNMG 332-SF:T8430

UGC DOR7977407
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.00 CAD - $12.00 CAD
$12.00 CAD
$12.00 CAD - $12.00 CAD
$12.00 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec diamètre du cercle inscrit de 9,525 mm, épaisseur de 4,76 mm, rayon de bec de 0,8 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux SF avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à moyen des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 332-SF:T8430
Product Name (ISO)TNMG 160408E-SF:T8430
GradeT8430
Chipbreaker (CBMD)SF
Product Number7977407
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977407
EAN3603603819931
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Usage possible
File Type Download
TNMG 332-SF:T8430 — Line Drawing PDF Download
