TNMG 432-SF:T8430
TNMG 432-SF:T8430

TNMG 432-SF:T8430

UGC DOR7977412
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.07 CAD - $16.07 CAD
$16.07 CAD
$16.07 CAD - $16.07 CAD
$16.07 CAD

Vendu en lots de : 10

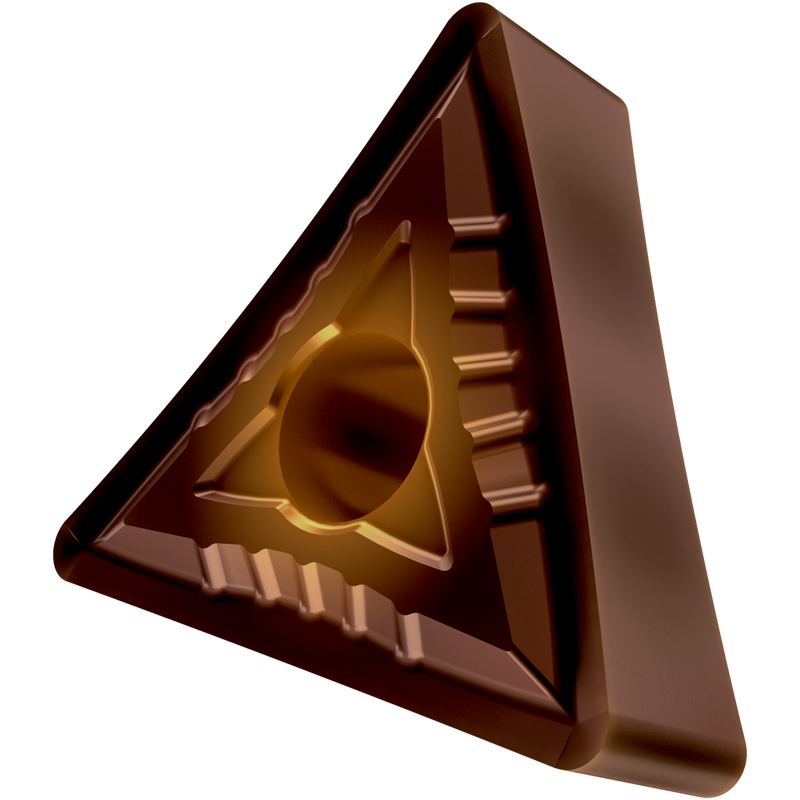

Plaquette négative double face, triangulaire, avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, un rayon de pointe de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO M, un brise-copeaux SF avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 432-SF:T8430
Product Name (ISO)TNMG 220408E-SF:T8430
GradeT8430
Chipbreaker (CBMD)SF
Product Number7977412
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - angulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977412
EAN3603603819986
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
TNMG 432-SF:T8430 — Line Drawing PDF Download
