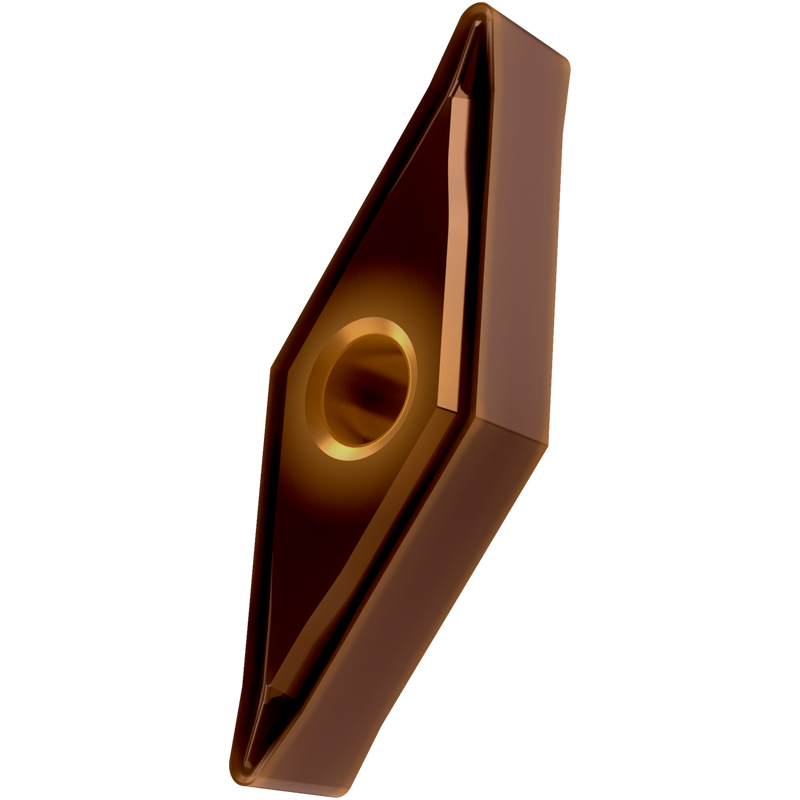

VNMG 331-NF:T8430
VNMG 331-NF:T8430

VNMG 331-NF:T8430

UGC DOR7977413
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.79 CAD - $20.79 CAD
$20.79 CAD
$20.79 CAD - $20.79 CAD
$20.79 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 35° avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur, rayon de bec de 0,4mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux NF avec arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VNMG 331-NF:T8430
Product Name (ISO)VNMG 160404E-NF:T8430
GradeT8430
Chipbreaker (CBMD)NF
Product Number7977413
Product FamilyVNMG
Insert Geometry
Insert DesignVNMG
Insert Shape Code (SC)V - angle 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977413
EAN3603603819993
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
VNMG 331-NF:T8430 — Line Drawing PDF Download
