VNMG 333-NMR:T8430
VNMG 333-NMR:T8430

VNMG 333-NMR:T8430

UGC DOR7977421
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.79 CAD - $20.79 CAD
$20.79 CAD
$20.79 CAD - $20.79 CAD
$20.79 CAD

Vendu en lots de : 10

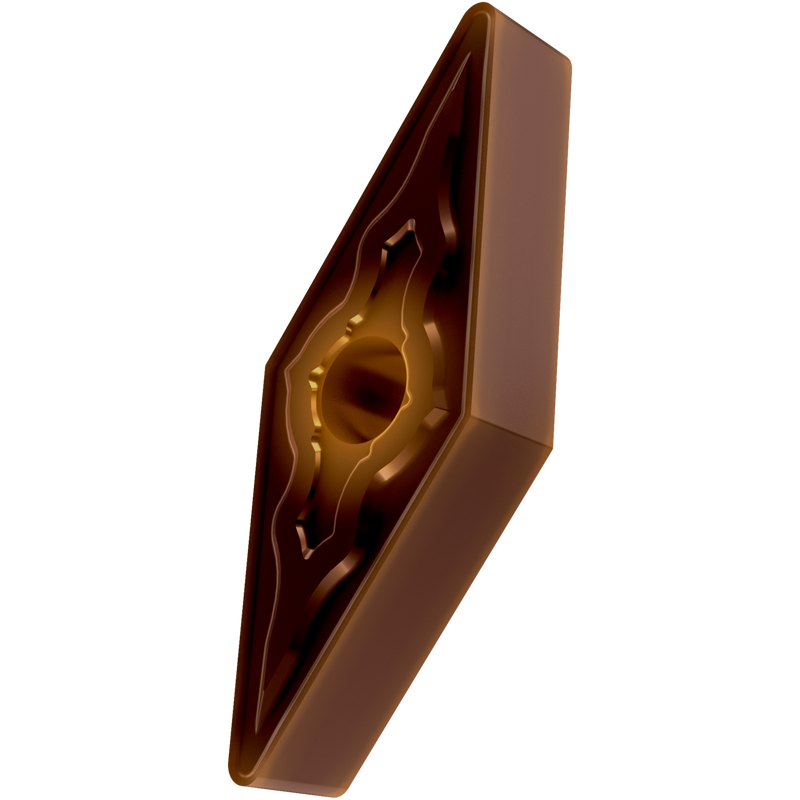

Plaquette double face négative à 35° en forme de losange avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 4,76 mm, un rayon de pointe de 1,2 mm, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux NMR avec des arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage léger à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VNMG 333-NMR:T8430
Product Name (ISO)VNMG 160412E-NMR:T8430
GradeT8430
Chipbreaker (CBMD)RMN
Product Number7977421
Product FamilyVNMG

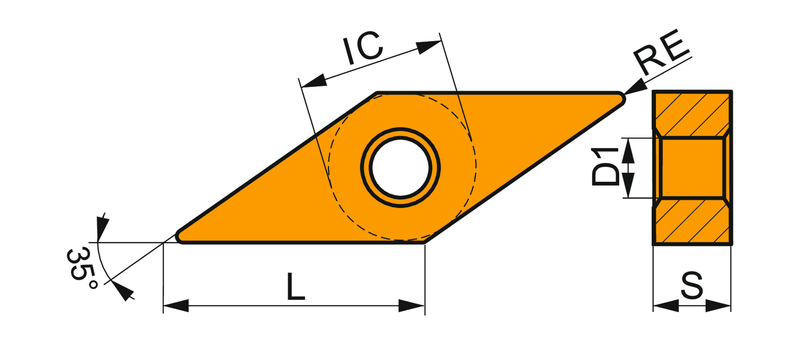

Insert Geometry
Insert DesignVNMG
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number7977421
EAN3603603820074
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
VNMG 333-NMR:T8430 — Line Drawing PDF Download
