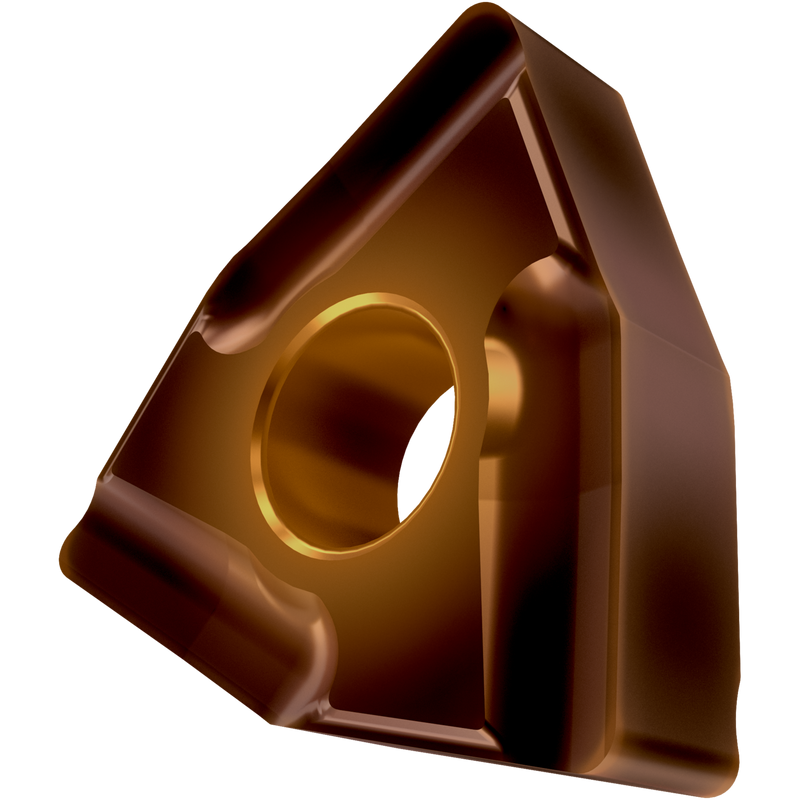

WNMG 331L-SI:T8430
WNMG 331L-SI:T8430

WNMG 331L-SI:T8430

UGC DOR7977423
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.76 CAD - $11.76 CAD
$11.76 CAD
$11.76 CAD - $11.76 CAD
$11.76 CAD

Vendu en lots de : 10

Plaquette négative double face pour tournage, trigon de 80° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm, rayon de bec de 0,4 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SI avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage moyen à lourd des aciers et aciers inoxydables avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 331L-SI:T8430
Product Name (ISO)WNMG 060404EL-SI:T8430
GradeT8430
Chipbreaker (CBMD)Oui
Product Number7977423
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977423
EAN3603603820098
File Type Download
WNMG 331L-SI:T8430 — Line Drawing PDF Download
