WNMG 32.51-FM:T8430
WNMG 32.51-FM:T8430

WNMG 32.51-FM:T8430

UGC DOR7977433
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.71 CAD - $10.71 CAD
$10.71 CAD
$10.71 CAD - $10.71 CAD
$10.71 CAD

Vendu en lots de : 10

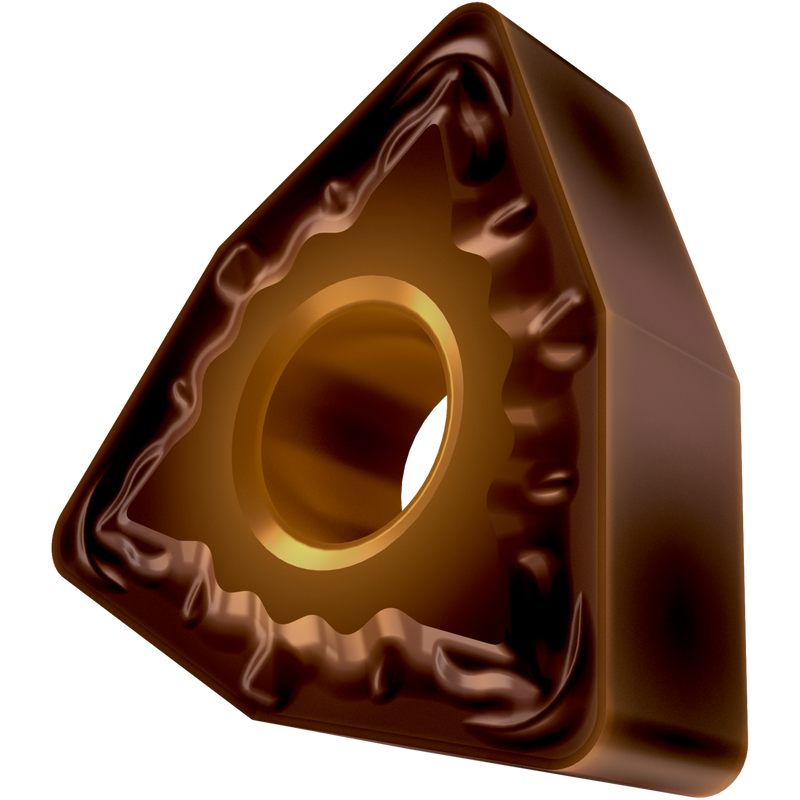

Plaquette négative double face, trigon de 80° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 3,97 mm, rayon de bec de 0,4 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20-P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 32.51-FM:T8430
Product Name (ISO)WNMG 06T304E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7977433
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977433
EAN3603603820197
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
WNMG 32.51-FM:T8430 — Line Drawing PDF Download
