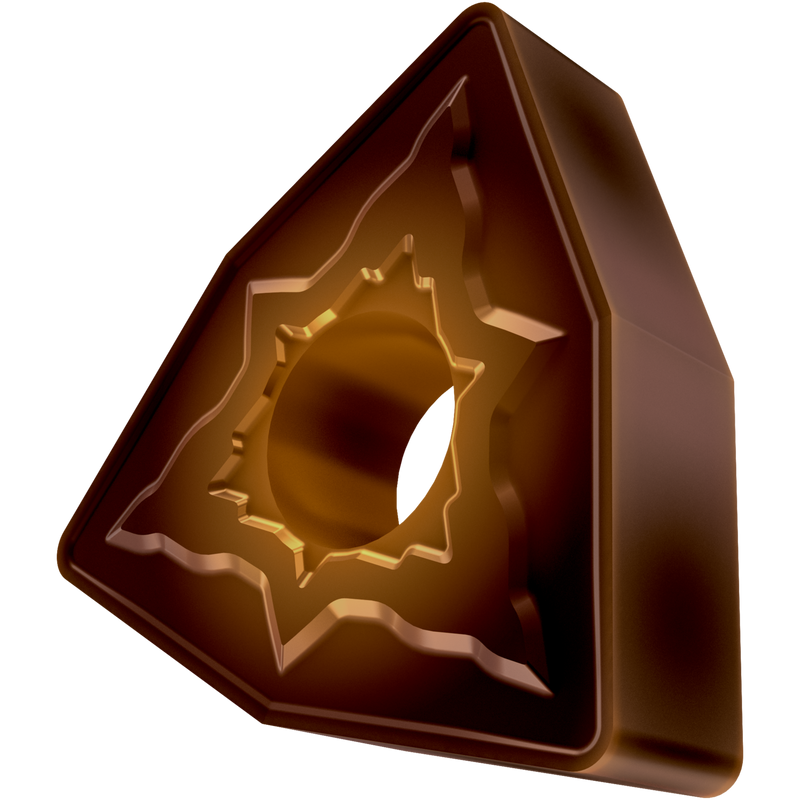

WNMG 433-NMR:T8430
WNMG 433-NMR:T8430

WNMG 433-NMR:T8430

UGC DOR7977442
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.26 CAD - $14.26 CAD
$14.26 CAD
$14.26 CAD - $14.26 CAD
$14.26 CAD

Vendu en lots de : 10

Plaquette négative double face à 80° trigon avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, rayon de bec de 1,2 mm, précision d'indexation selon la classe de tolérance ISO-M, brise-copeaux NMR avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 433-NMR:T8430
Product Name (ISO)WNMG 080412E-NMR:T8430
GradeT8430
Chipbreaker (CBMD)RMN
Product Number7977442
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number7977442
EAN3603603820289
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage possible
File Type Download
WNMG 433-NMR:T8430 — Line Drawing PDF Download
