WNMM 432-OR:T8430
WNMM 432-OR:T8430

WNMM 432-OR:T8430

UGC DOR7977447
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.26 CAD - $14.26 CAD
$14.26 CAD
$14.26 CAD - $14.26 CAD
$14.26 CAD

Vendu en lots de : 10

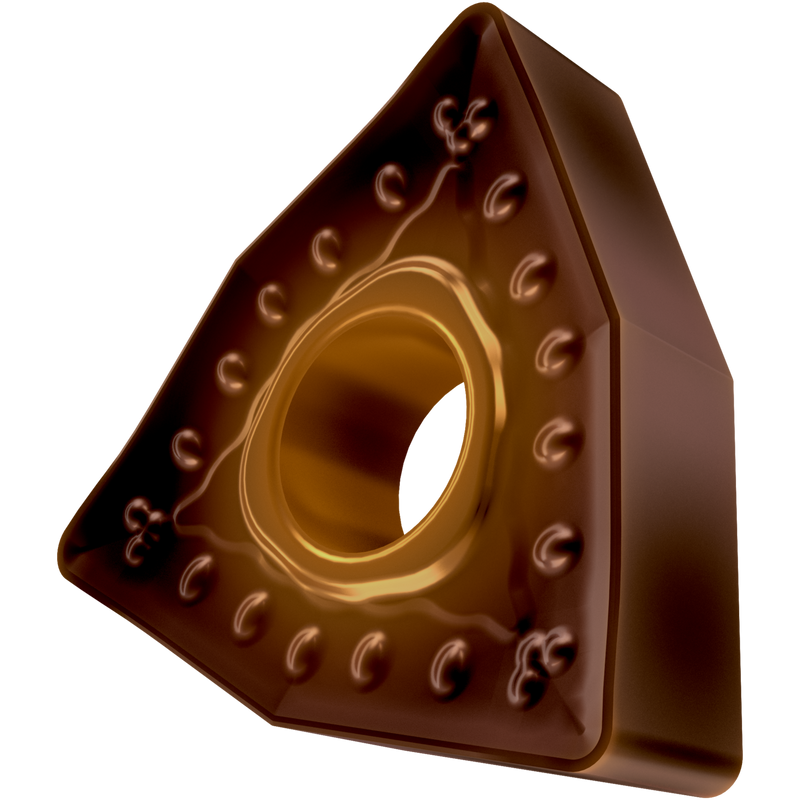

Plaquette négative double face, trigon 80° avec diamètre de cercle inscrit de 12,7mm, 4,76mm d'épaisseur, rayon de bec de 0,8mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux OR avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la plage ISO P20-P40, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMM 432-OR:T8430
Product Name (ISO)WNMM 080408E-OR:T8430
GradeT8430
Chipbreaker (CBMD)OU_
Product Number7977447
Product FamilyGMVN

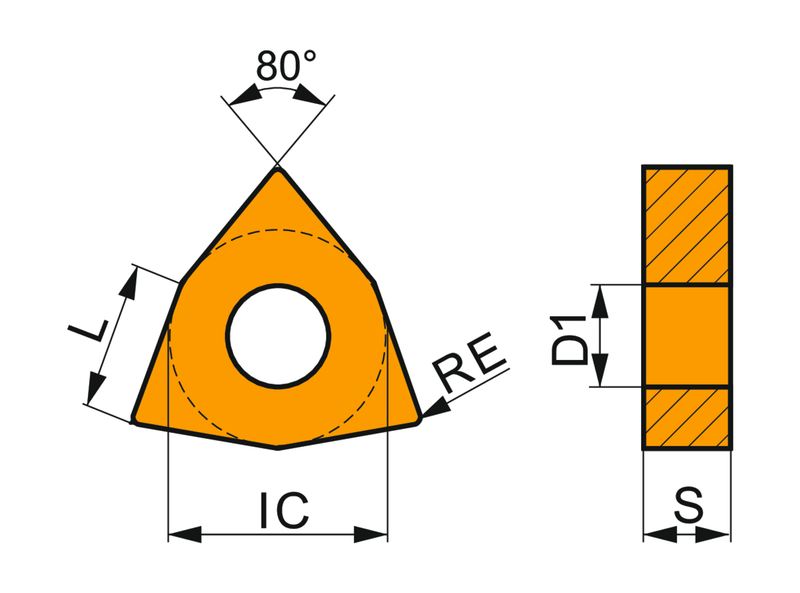

Insert Geometry
Insert DesignWNMM
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977447
EAN3603603820333
File Type Download
WNMM 432-OR:T8430 — Line Drawing PDF Download
