150E3R169M16-ISCRD12-CF
150E3R169M16-ISCRD12-CF
150E3R169M16-ISCRD12-CF

150E3R169M16-ISCRD12-CF

UGC DOR7979737
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$345.00 CAD - $345.00 CAD
$345.00 CAD
$345.00 CAD - $345.00 CAD
$345.00 CAD

Vendu en lots de : 1

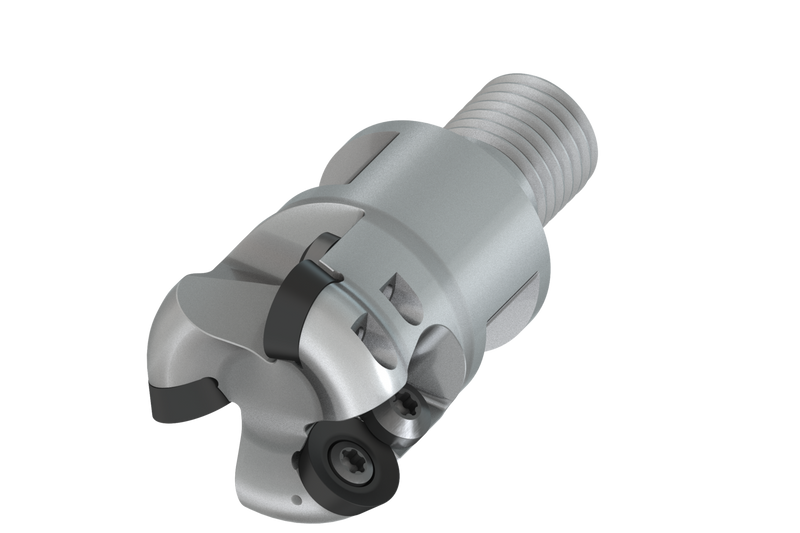

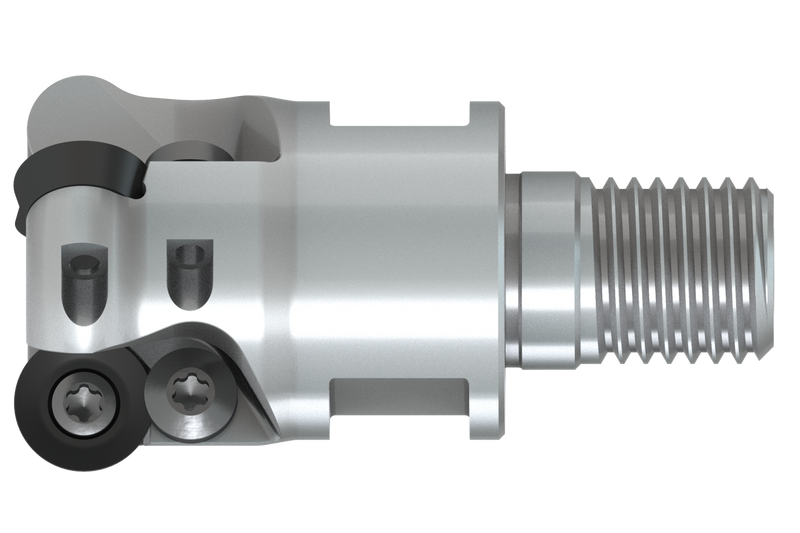

Fraise à copier avec double géométrie négative qui utilise 3 plaquettes simple-face RD.. 12T3MOT ou RDHT 12T3MO-FA, diamètre de coupe maximal de 1.500" avec queue filetée M16 pour porte-outils modulaires standards, longueur fonctionnelle de 1.693" et longueur de dépassement de 2.598", arrosage interne pour le surfaçage, le copiage, l'usinage en rampe, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 0.118"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)150E3R169M16-ISCRD12-CF
Product Number7979737
Product FamilyRISD12
Insert Geometry
Depth of Cut Max — in (APMX)0.118"

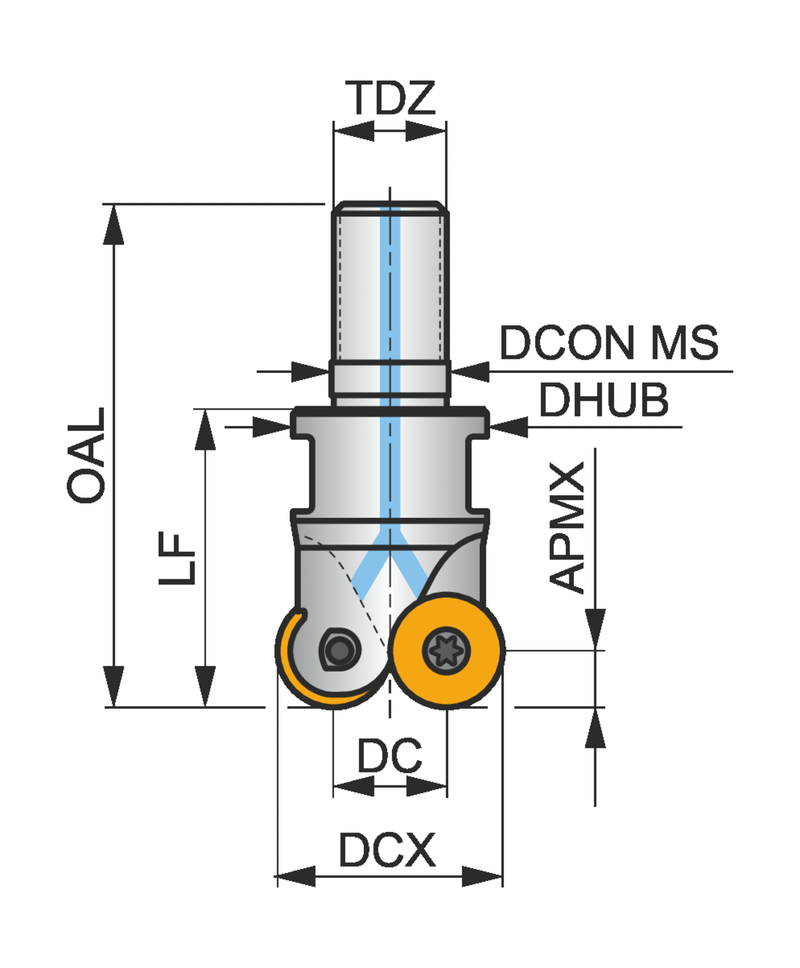

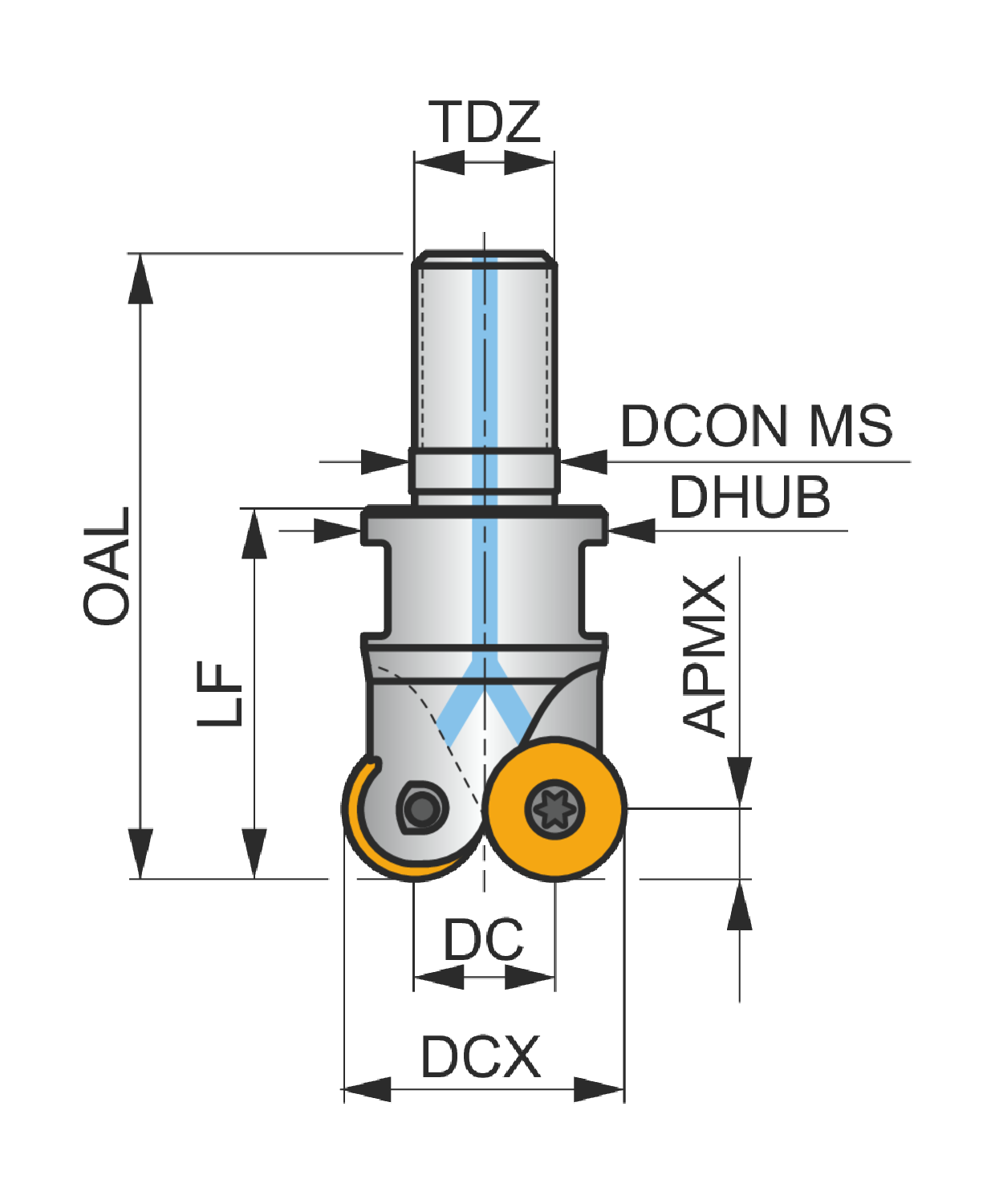

Dimensions
Cutting Diameter — in (DC)1.028"
Cutting Diameter — mm (DC)26.11 mm
Overall Length — in (OAL)2.598"
Overall Length — mm (OAL)66.0 mm
Functional Length — in (LF)1.693"
Functional Length — mm (LF)43.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSRD12
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7979737
EAN3603603816084
File Type Download
150E3R169M16-ISCRD12-CF — 3D Model STP Download
150E3R169M16-ISCRD12-CF — 2D Model DXF Download
150E3R169M16-ISCRD12-CF — Line Drawing PDF Download
