200A05R-ISCMORD12-CF
200A05R-ISCMORD12-CF
200A05R-ISCMORD12-CF

200A05R-ISCMORD12-CF

UGC DOR7979738
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$583.00 CAD - $583.00 CAD
$583.00 CAD
$583.00 CAD - $583.00 CAD
$583.00 CAD

Vendu en lots de : 1

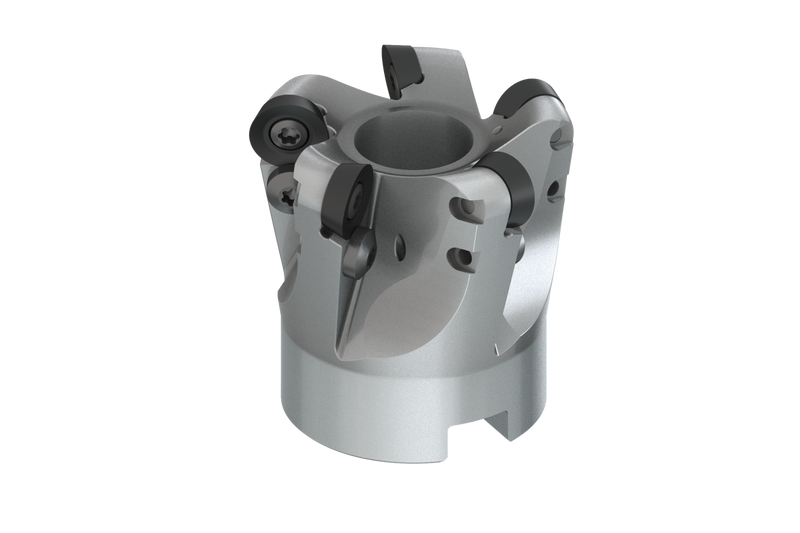

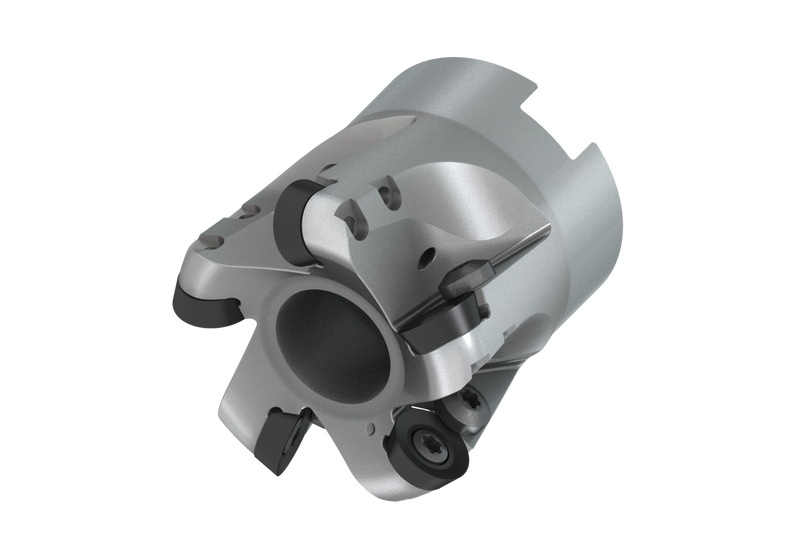

Fraise à copier avec une géométrie double positive qui utilise 5 plaquettes simple face RD.. 12T3MOT ou RDHT 12T3MO-FA, diamètre de coupe maximal de 2,000" avec alésage de connexion de 0,750" selon DIN 8030-A, longueur fonctionnelle de 1,968" et arrosage central pour le surfaçage, le fraisage en plongée, le fraisage en ramping, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 0,118"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200A05R-ISCMORD12-CF
Product Number7979738
Product FamilyISRD12
Insert Geometry

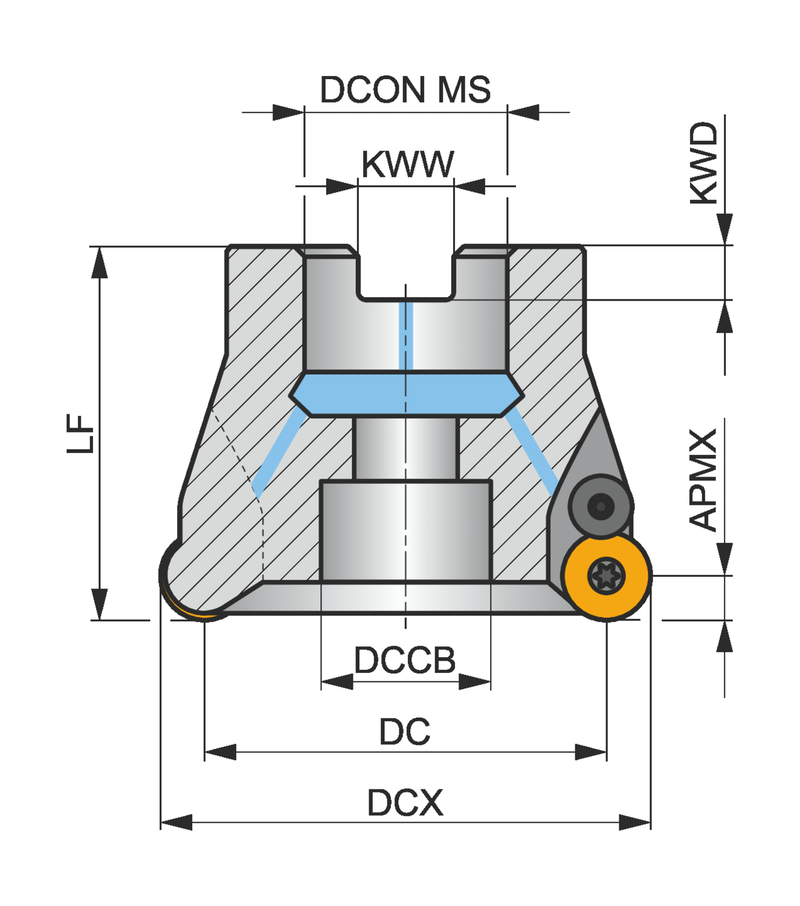

Depth of Cut Max — in (APMX)0.118"
Dimensions
Cutting Diameter — in (DC)1.528"
Cutting Diameter — mm (DC)38.81 mm
Functional Length — in (LF)1.968"
Functional Length — mm (LF)49.99 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSRD12
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7979738
EAN3603603816091
File Type Download
200A05R-ISCMORD12-CF — 3D Model STP Download
200A05R-ISCMORD12-CF — 2D Model DXF Download
200A05R-ISCMORD12-CF — Line Drawing PDF Download
