GL3-D300MMO-MM:T7325
GL3-D300MMO-MM:T7325

GL3-D300MMO-MM:T7325

UGC DOR7983474
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.19 CAD - $37.19 CAD
$37.19 CAD
$37.19 CAD - $37.19 CAD
$37.19 CAD

Vendu en lots de : 10

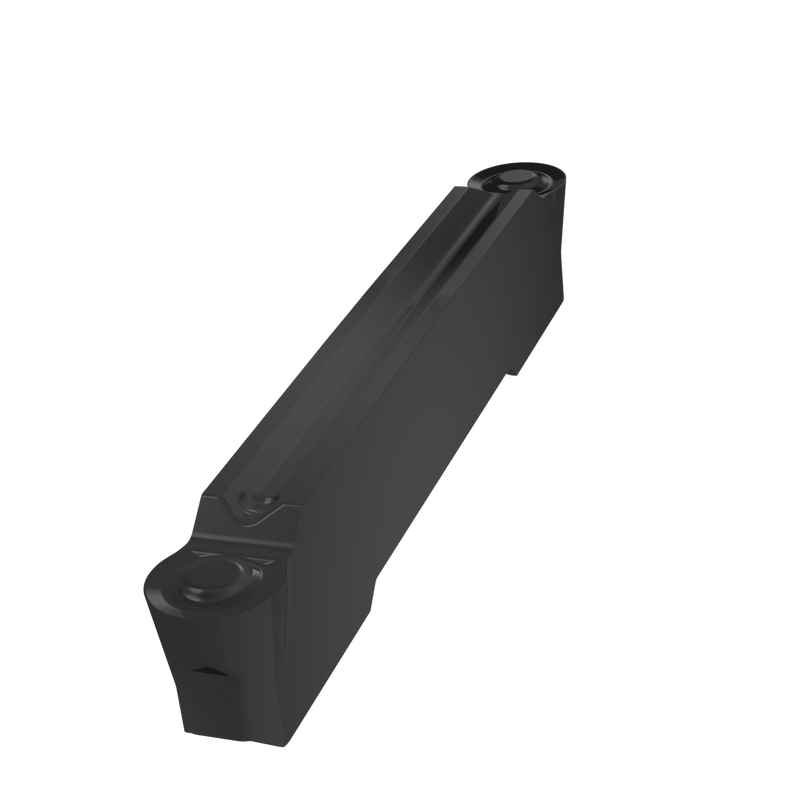

Plaquette de tronçonnage et rainurage double face, d'une longueur de 25 mm et d'une largeur de coupe de 3 mm avec un rayon complet de 1,5 mm. Nuance T7325, carbure WC-Co à gradient fonctionnel, revêtu MT-CVD, dans les plages de nuances ISO M10-M25 et K15-K25, pour l'usinage des aciers inoxydables et des fontes. Géométrie MM, avec rayon complet pour le copiage et le chariotage, et coupes continues à interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-D300MMO-MM:T7325
GradeT7325
Chipbreaker (CBMD)MM
Product Number7983474
Product FamilyGL. J - MM
Insert Geometry
Insert DesignGL. D
Corner Radius — in (RE)0.059"
Corner Radius — mm (RE)1.5 mm
Tool Information
Reference Numbers
EDP Number7983474
EAN3603603816183
File Type Download

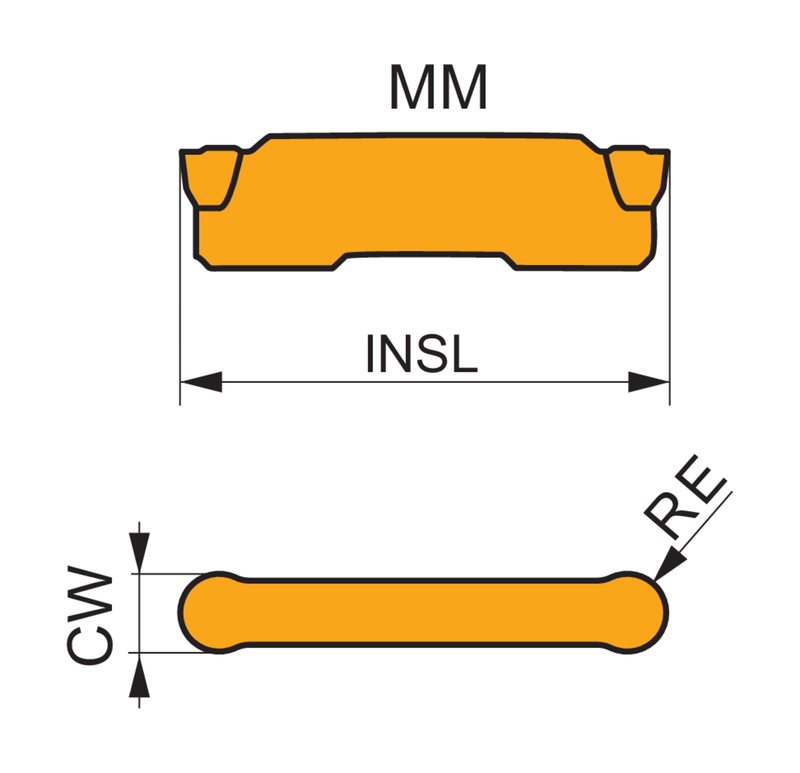

GL3-D300MMO-MM:T7325 — Line Drawing PDF Download
