GL4-D400M04-GM:G8330
GL4-D400M04-GM:G8330

GL4-D400M04-GM:G8330

UGC DOR7983475
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.51 CAD - $39.51 CAD
$39.51 CAD
$39.51 CAD - $39.51 CAD
$39.51 CAD

Vendu en lots de : 10

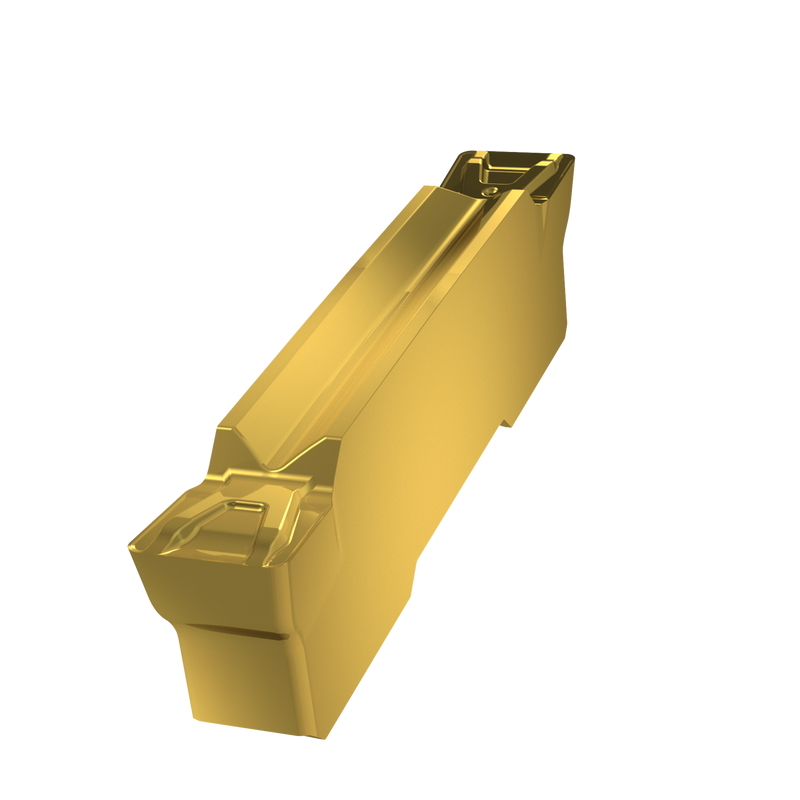

Plaquette de tronçonnage et gorge double face, de 24,99 mm de long avec une largeur de coupe de 3,99 mm et un rayon de bec de 0,41 mm. Carbure WC-Co à grains fins revêtu PVD nuance G8330 dans les plages de nuances ISO P25 -P40/M20 -M35 et K20 -K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte. Géométrie polyvalente GM pour le rainurage et le chariotage longitudinal, et pour les coupes continues à interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL4-D400M04-GM:G8330
GradeG8330
Chipbreaker (CBMD)Bonjour
Product Number7983475
Product FamilyGL. D - M.G
Insert Geometry
Insert DesignGL. D
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7983475
EAN3603603816190
File Type Download

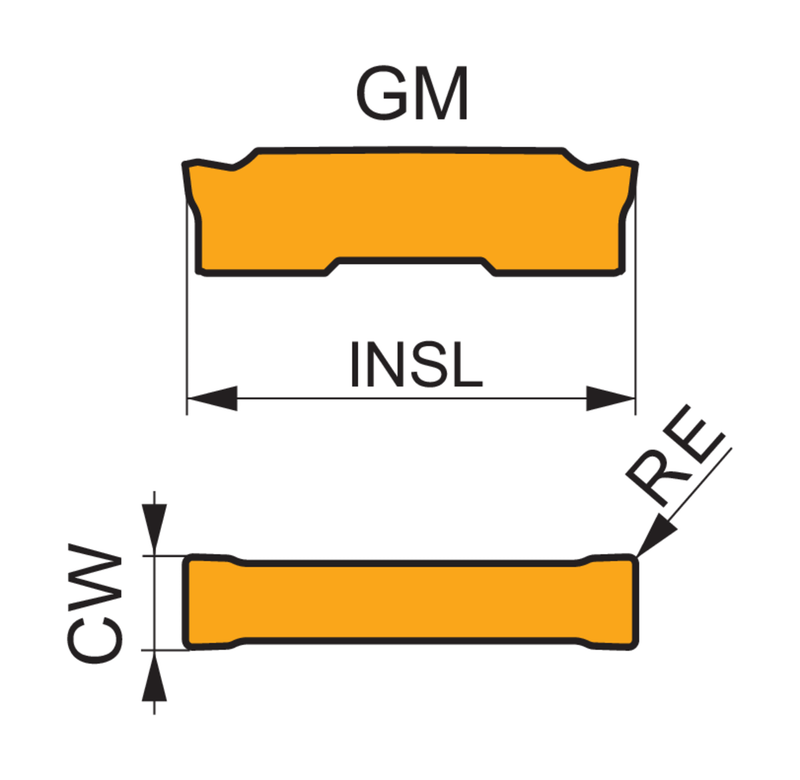

GL4-D400M04-GM:G8330 — Line Drawing PDF Download
