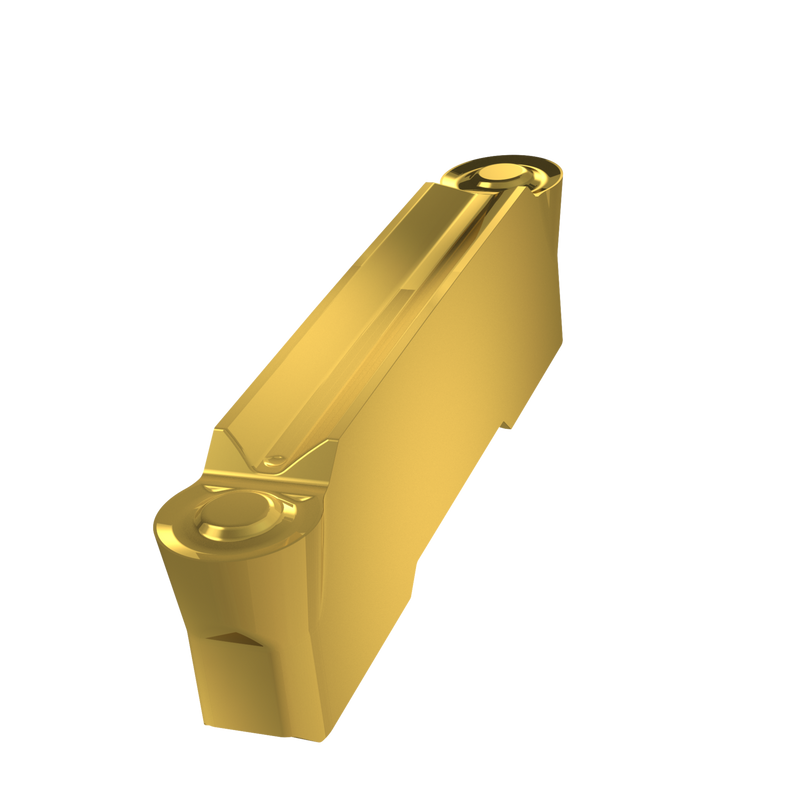

GL4-D400MMO-MM:G8330
GL4-D400MMO-MM:G8330

GL4-D400MMO-MM:G8330

UGC DOR7983477
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.51 CAD - $39.51 CAD
$39.51 CAD
$39.51 CAD - $39.51 CAD
$39.51 CAD

Vendu en lots de : 10

Plaquette de tronçonnage et de gorge double face, de 24,99 mm de long avec une largeur de coupe de 3,98 mm et un rayon complet de 2,00 mm. Nuance G8330 en carbure WC-Co à grains fins revêtu PVD dans les plages de nuances ISO P25-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte. Géométrie MM, avec un rayon complet pour le profilage et le tournage longitudinal, et des coupes continues à interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL4-D400MMO-MM:G8330
GradeG8330
Chipbreaker (CBMD)MM
Product Number7983477
Product FamilyGL. D - MM
Insert Geometry
Insert DesignGL. D
Corner Radius — in (RE)0.079"
Corner Radius — mm (RE)2 mm
Tool Information
Reference Numbers
EDP Number7983477
EAN3603603816213
File Type Download

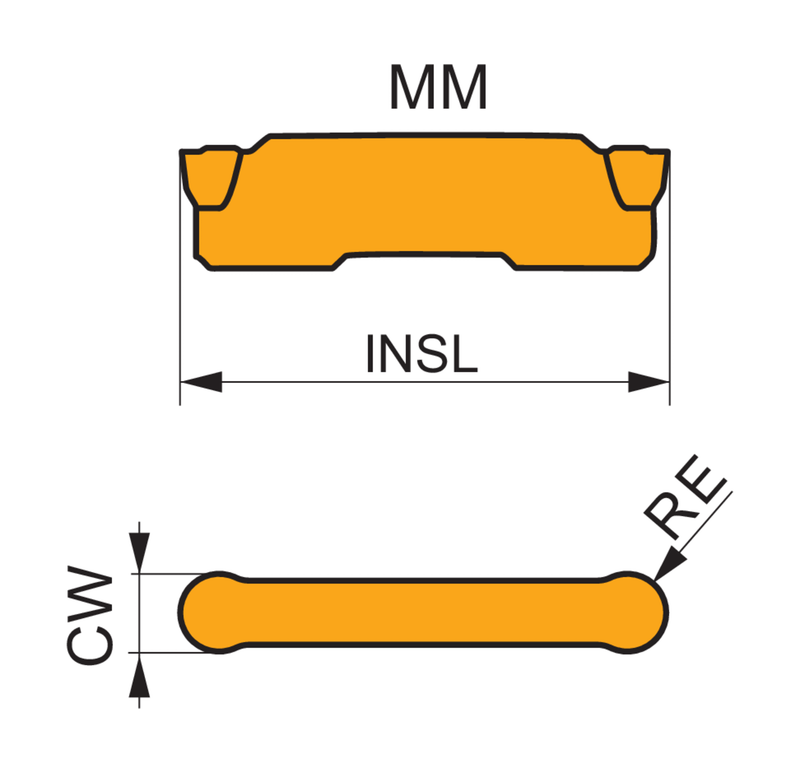

GL4-D400MMO-MM:G8330 — Line Drawing PDF Download
