GL2-S2525MFL-24-80
GL2-S2525MFL-24-80
GL2-S2525MFL-24-80

GL2-S2525MFL-24-80

UGC DOR7983492
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$327.00 CAD - $327.00 CAD
$327.00 CAD
$327.00 CAD - $327.00 CAD
$327.00 CAD

Vendu en lots de : 1

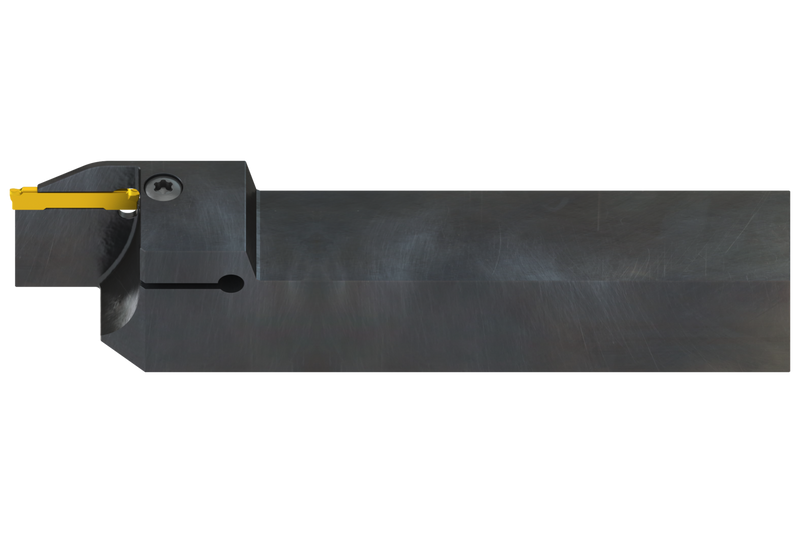

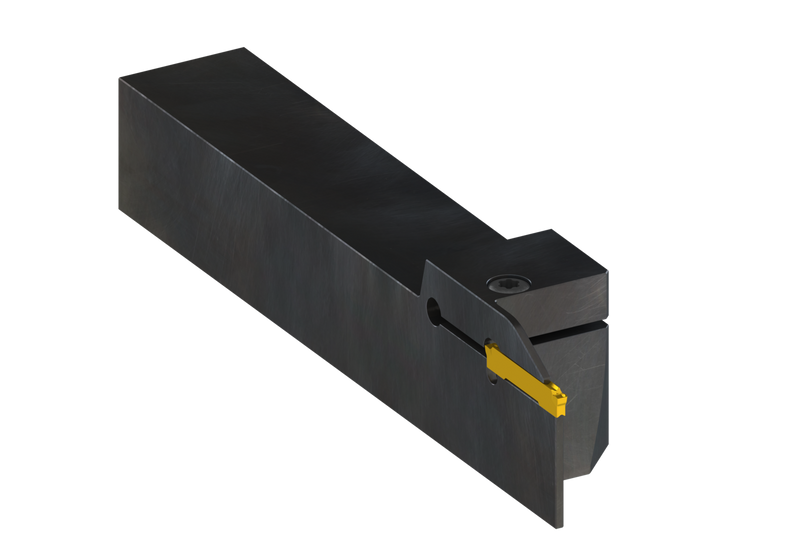

GL2-S2525MFL-24-80 est un outil externe à gauche pour les plaquettes GL. Adapté aux applications de rainurage radial, tronçonnage, tournage et profilage. Conception du corps renforcée pour une durée de vie de l'outil prolongée et de faibles vibrations. Corps traité pour une durée de vie de l'outil plus longue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL2-S2525MFL-24-80
Product Number7983492
Product FamilyGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.9449"

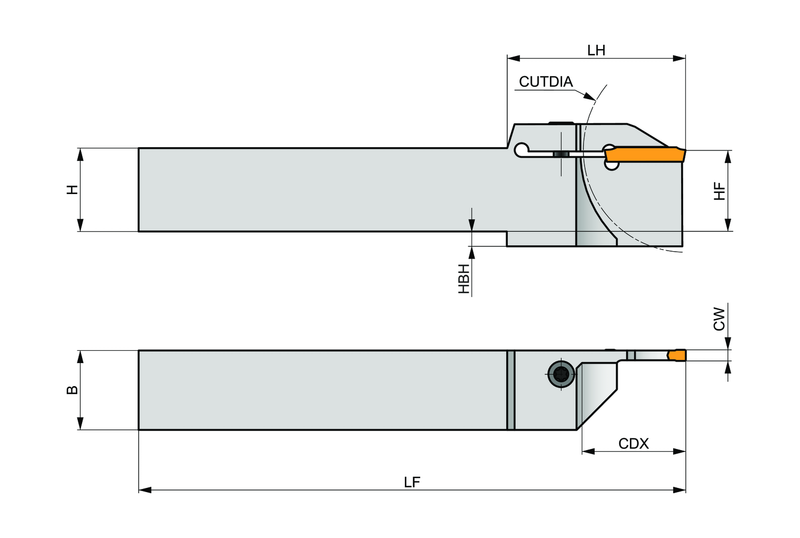

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number7983492
EAN3603603816251
File Type Download
GL2-S2525MFL-24-80 — 3D Model STP Download
GL2-S2525MFL-24-80 — Line Drawing PDF Download
