GL3-S2525MFL-24-80
GL3-S2525MFL-24-80
GL3-S2525MFL-24-80

GL3-S2525MFL-24-80

UGC DOR7983496
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$327.00 CAD - $327.00 CAD
$327.00 CAD
$327.00 CAD - $327.00 CAD
$327.00 CAD

Vendu en lots de : 1

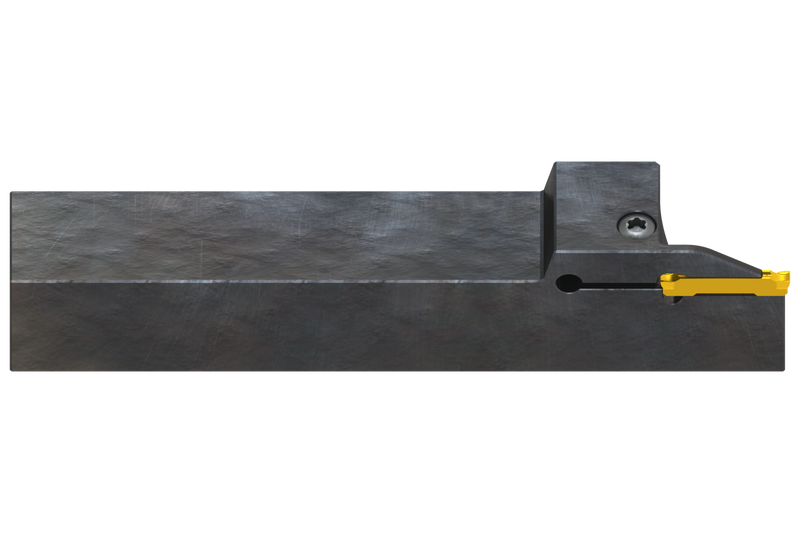

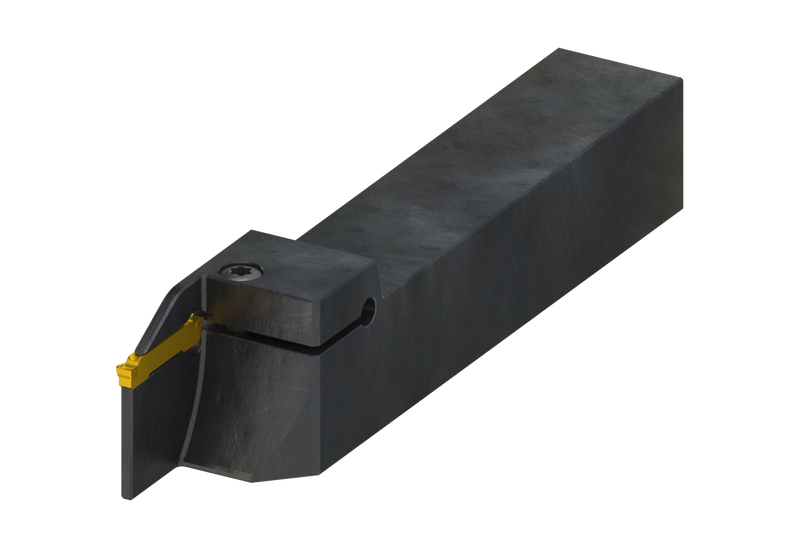

Le GL3-S2525MFL-24-80 est un outil externe gaucher pour les plaquettes GL. Il convient aux applications de rainurage radial, de tronçonnage, de tournage et de profilage. La conception du corps est renforcée pour une durée de vie prolongée de l'outil et de faibles vibrations. Le corps est traité pour une plus longue durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-S2525MFL-24-80
Product Number7983496
Product FamilyGLSF(RL) EXT
Insert Geometry
Depth of Cut Max — in (APMX)0.9449"

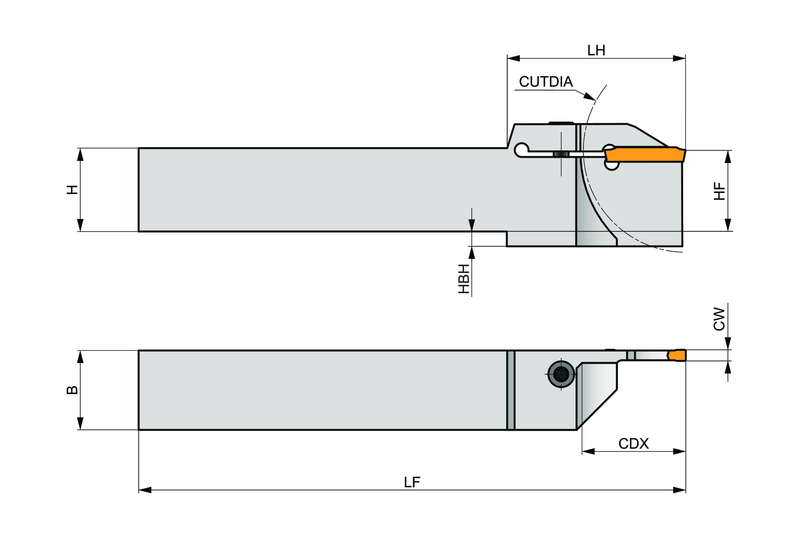

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number7983496
EAN3603603816299
File Type Download
GL3-S2525MFL-24-80 — 3D Model STP Download
GL3-S2525MFL-24-80 — Line Drawing PDF Download
