GL2-S1212HFL-12-40
GL2-S1212HFL-12-40
GL2-S1212HFL-12-40

GL2-S1212HFL-12-40

UGC DOR7983506
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$268.00 CAD - $268.00 CAD
$268.00 CAD
$268.00 CAD - $268.00 CAD
$268.00 CAD

Vendu en lots de : 1

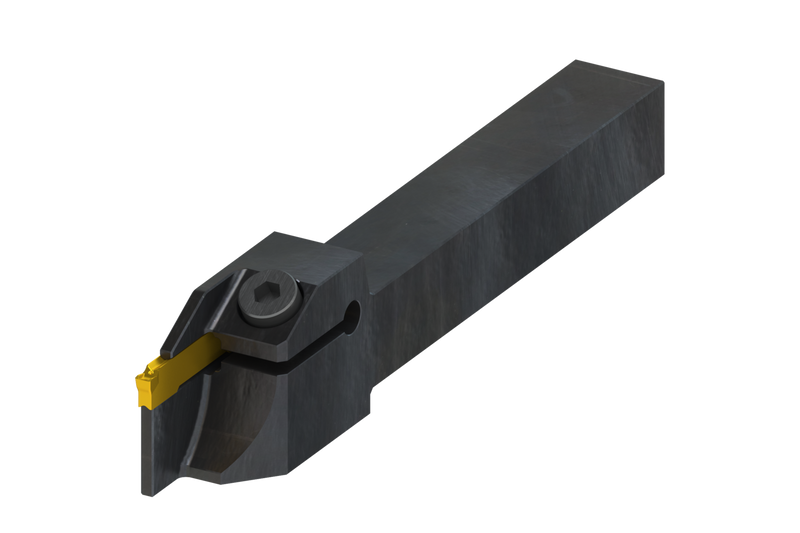

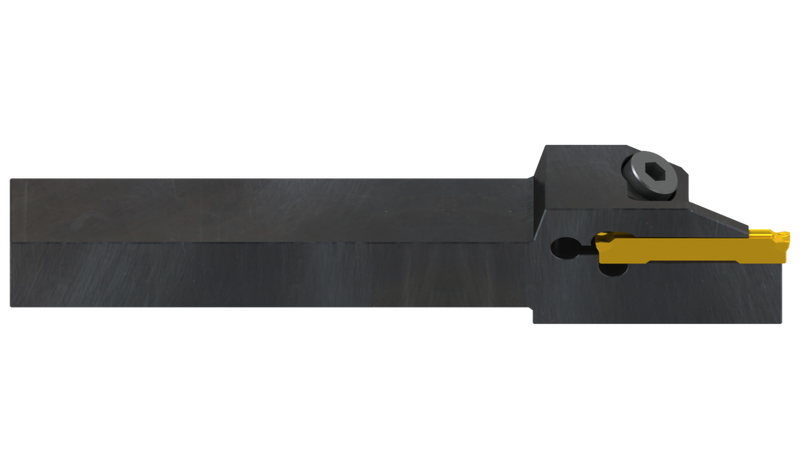

Le GL2-S1212HFL-12-40 est un porte-outil externe à gauche pour les plaquettes GL, conçu pour les machines à tête coulissante et offrant un accès facile au serrage de la plaquette. Il est adapté aux applications de rainurage radial, de tronçonnage, de tournage et de profilage. Le corps est traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL2-S1212HFL-12-40
Product Number7983506
Product FamilyGLSF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.4724"

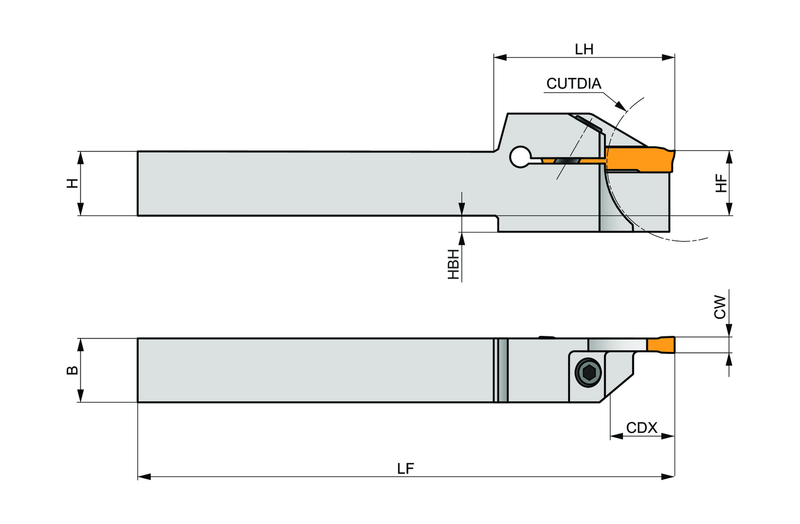

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.472 mm
Tool Information
Reference Numbers
EDP Number7983506
EAN3603603816398
File Type Download
GL2-S1212HFL-12-40 — 3D Model STP Download
GL2-S1212HFL-12-40 — Line Drawing PDF Download
