GL2-S1212HFR-12-40
GL2-S1212HFR-12-40
GL2-S1212HFR-12-40

GL2-S1212HFR-12-40

UGC DOR7983507
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$268.00 CAD - $268.00 CAD
$268.00 CAD
$268.00 CAD - $268.00 CAD
$268.00 CAD

Vendu en lots de : 1

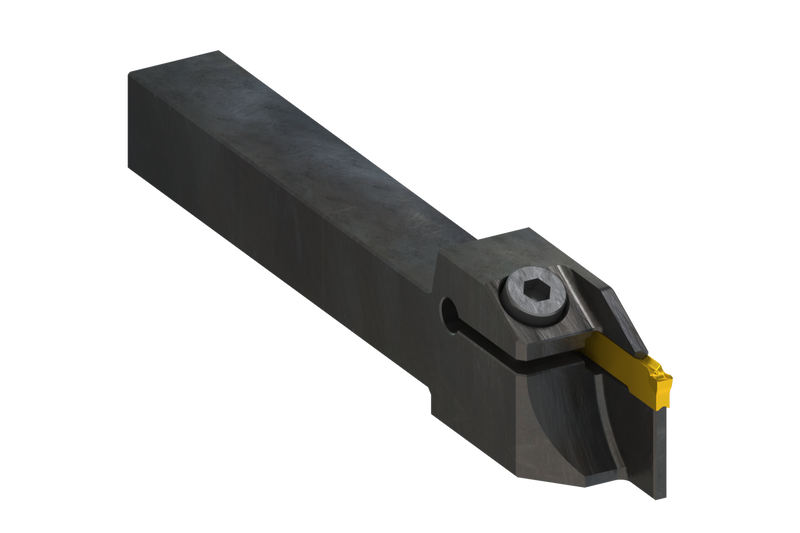

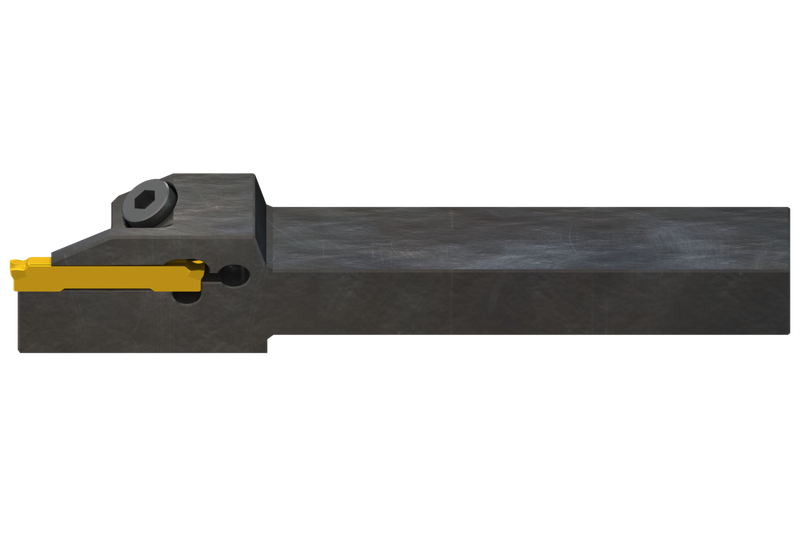

Le GL2-S1212HFR-12-40 est un outil externe droit pour les plaquettes GL, conçu pour les machines à poupée mobile et un accès facile au serrage des plaquettes. Il est adapté aux applications de gorge radiale, de tronçonnage, de tournage et de profilage. Le corps est traité pour une durée de vie plus longue de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL2-S1212HFR-12-40
Product Number7983507
Product FamilyGLSF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.4724"
Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.472 mm
Tool Information
Reference Numbers
EDP Number7983507
EAN3603603816404
File Type Download
GL2-S1212HFR-12-40 — 3D Model STP Download

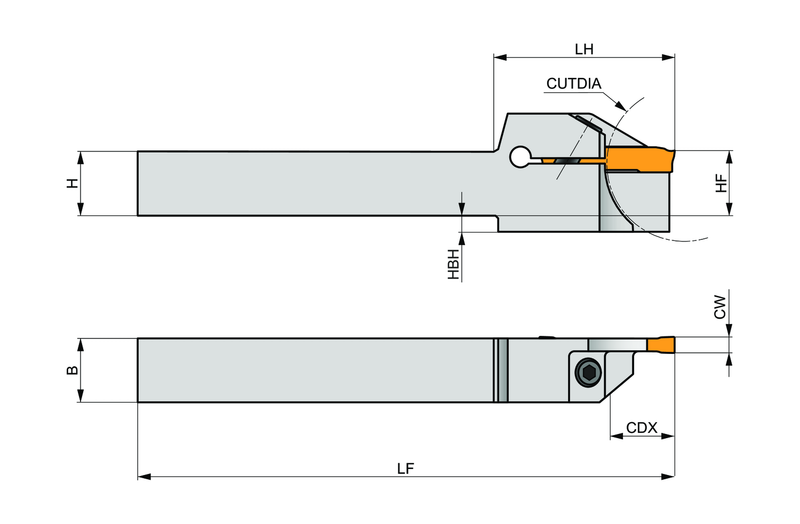

GL2-S1212HFR-12-40 — Line Drawing PDF Download
