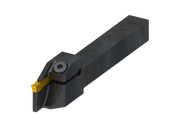

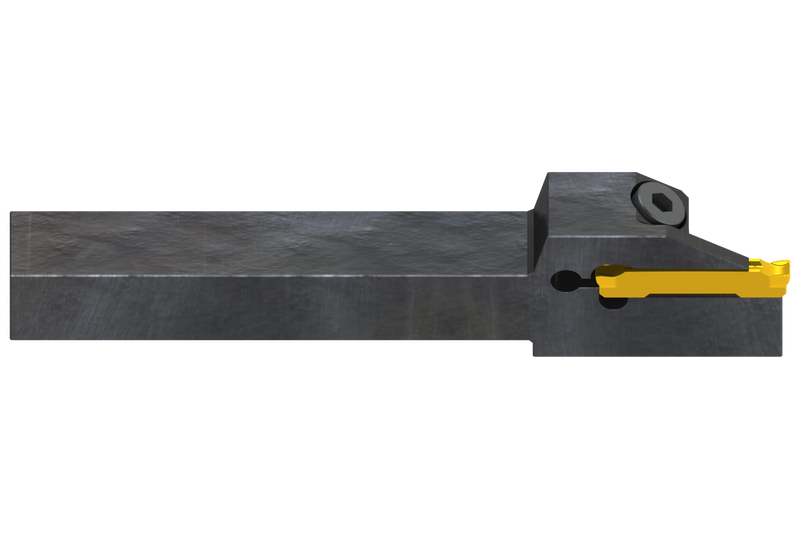

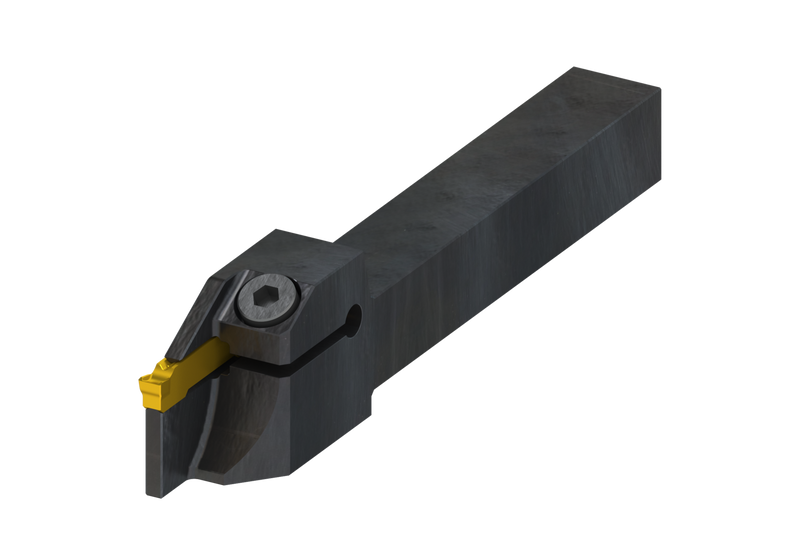

GL3-S1212HFL-12-40
GL3-S1212HFL-12-40
GL3-S1212HFL-12-40

GL3-S1212HFL-12-40

UGC DOR7983522
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$268.00 CAD - $268.00 CAD
$268.00 CAD
$268.00 CAD - $268.00 CAD
$268.00 CAD

Vendu en lots de : 1

GL3-S1212HFL-12-40 est un outil externe pour inserts GL, à gauche, conçu pour les tours automatiques à poupée mobile et un accès facile au serrage des inserts. Convient aux applications de gorge radiale, de tronçonnage, de tournage et de profilage. Corps traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL3-S1212HFL-12-40
Product Number7983522
Product FamilyGLSF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.4724"

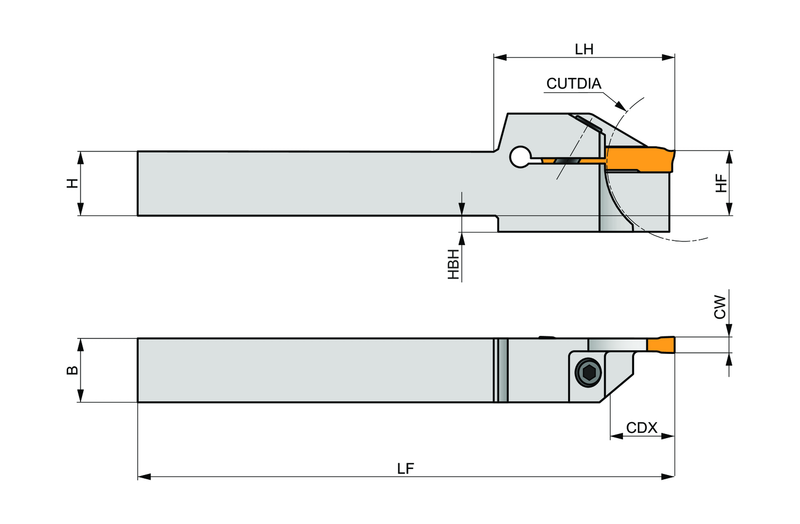

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.472 mm
Tool Information
Reference Numbers
EDP Number7983522
EAN3603603816459
File Type Download
GL3-S1212HFL-12-40 — 3D Model STP Download
GL3-S1212HFL-12-40 — Line Drawing PDF Download
