100E3R130M12-ISRD10-CF
100E3R130M12-ISRD10-CF
100E3R130M12-ISRD10-CF

100E3R130M12-ISRD10-CF

UGC DOR7999189
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$310.00 CAD - $310.00 CAD
$310.00 CAD
$310.00 CAD - $310.00 CAD
$310.00 CAD

Vendu en lots de : 1

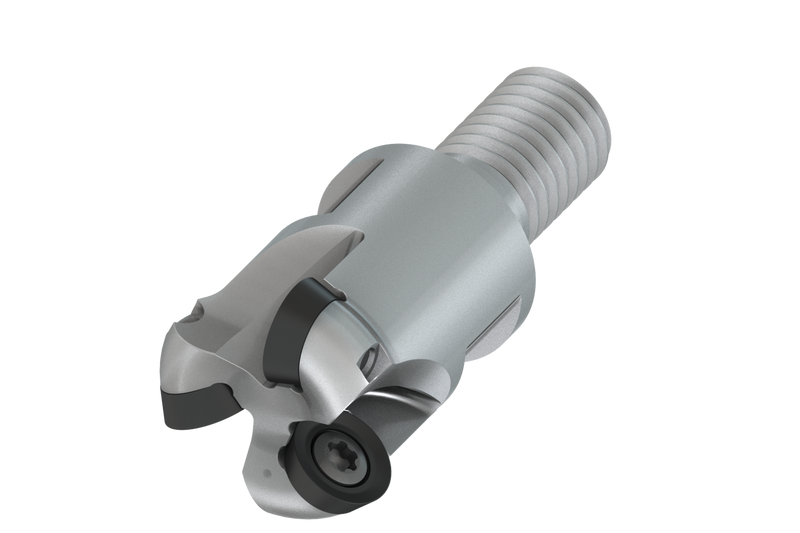

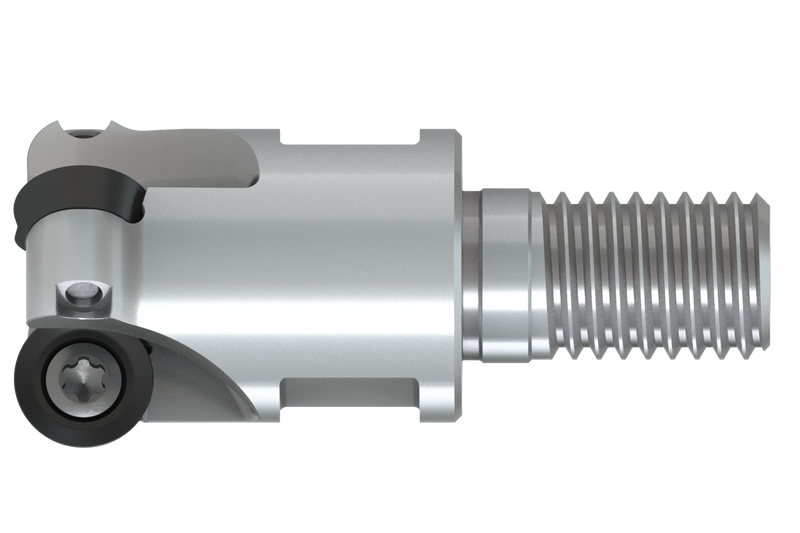

Fraise à copier double positive qui utilise 3 plaquettes simple face RD.. 1003MOT ou RDHT 1003MO-FA, diamètre de coupe maximum de 1.000" avec queue filetée M12 pour porte-outils modulaires standards, longueur fonctionnelle de 1.300" et longueur de dépassement de 2.165", arrosage interne pour le surfaçage, la copie, la plongée progressive, le fraisage en rampe et le fraisage hélicoïdal avec une profondeur de coupe maximale de 0.098"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100E3R130M12-ISRD10-CF
Product Number7999189
Product FamilyISRD10
Insert Geometry
Depth of Cut Max — in (APMX)0.098"

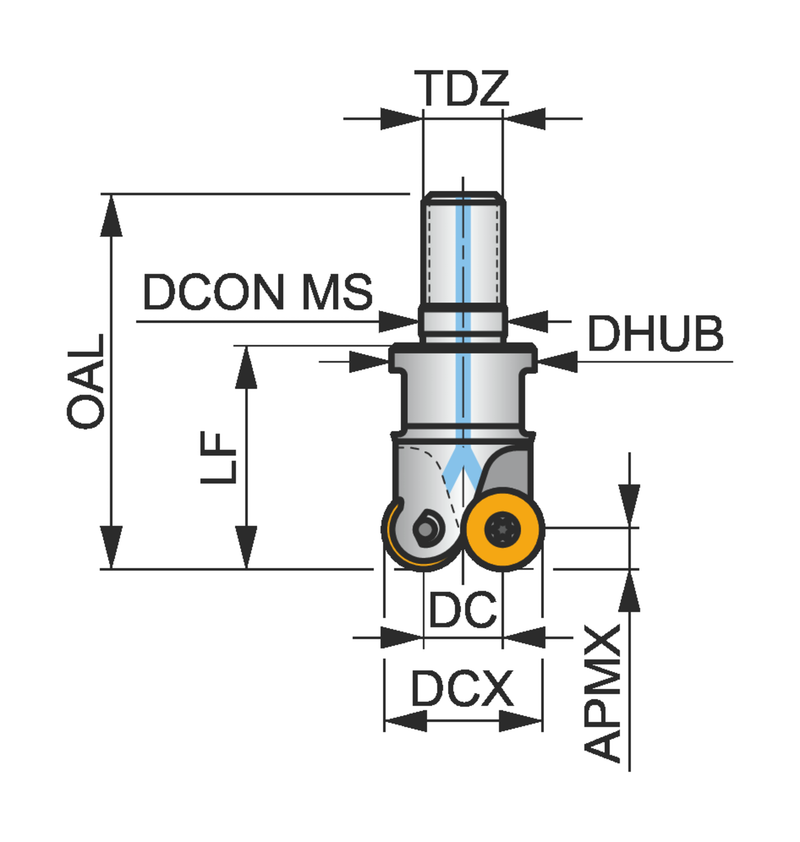

Dimensions
Cutting Diameter — in (DC)0.607"
Cutting Diameter — mm (DC)15.42 mm
Overall Length — in (OAL)2.165"
Overall Length — mm (OAL)55.0 mm
Functional Length — in (LF)1.3"
Functional Length — mm (LF)33.02 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)M12
Tool Information
Tool DesignDRS10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999189
EAN3603603827714
File Type Download
100E3R130M12-ISRD10-CF — 3D Model STP Download
100E3R130M12-ISRD10-CF — 2D Model DXF Download
100E3R130M12-ISRD10-CF — Line Drawing PDF Download
