150E5R169M16-ISRD10-CF
150E5R169M16-ISRD10-CF
150E5R169M16-ISRD10-CF

150E5R169M16-ISRD10-CF

UGC DOR7999211
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$523.00 CAD - $523.00 CAD
$523.00 CAD
$523.00 CAD - $523.00 CAD
$523.00 CAD

Vendu en lots de : 1

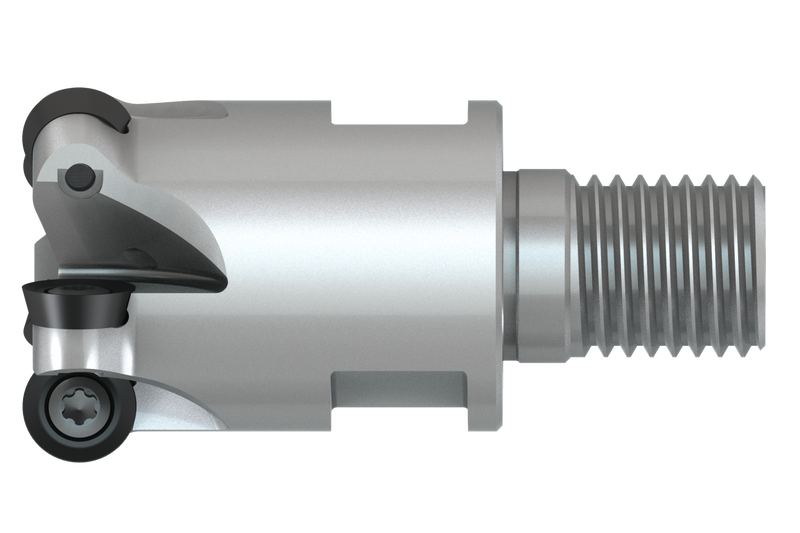

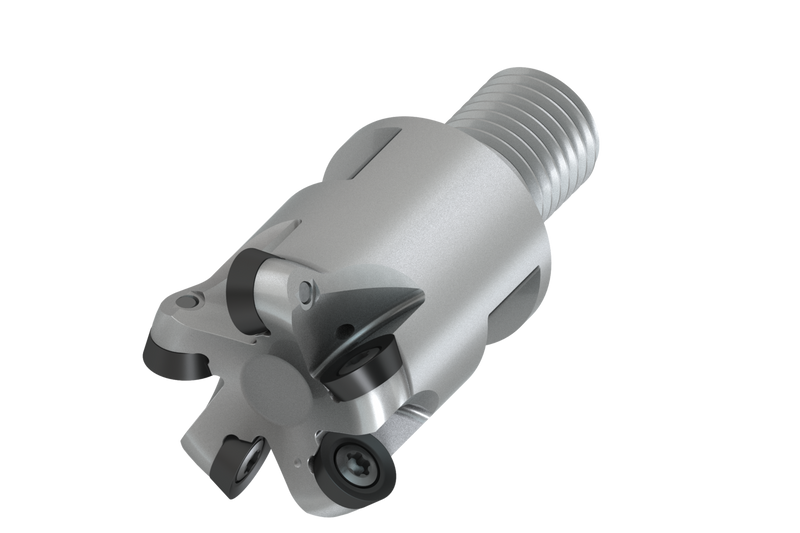

Fraise à copier avec géométrie double négative utilisant 5 plaquettes simple-face de type RD.. 1003MOT ou RDHT 1003MO-FA, diamètre de coupe maximal de 1,500" avec queue filetée M16 pour porte-outils modulaires standards, longueur fonctionnelle de 1,693" et longueur de dépassement de 2,598", arrosage interne pour le surfaçage, le copiage, le ramping, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 0,098".

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)150E5R169M16-ISRD10-CF
Product Number7999211
Product FamilyISRD10
Insert Geometry
Depth of Cut Max — in (APMX)0.098"

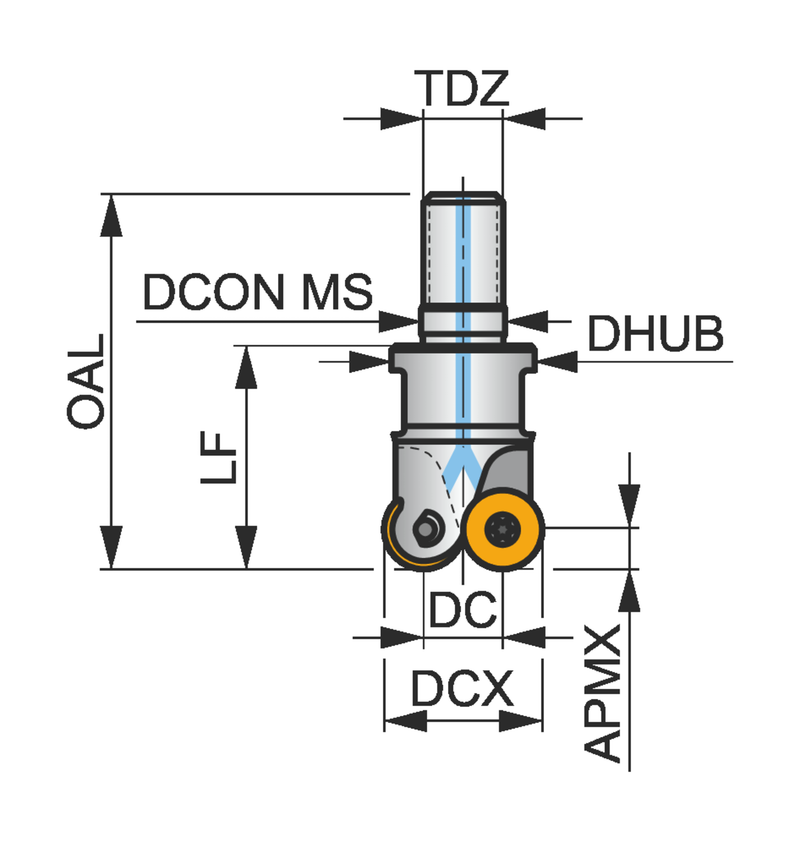

Dimensions
Cutting Diameter — in (DC)1.107"
Cutting Diameter — mm (DC)28.12 mm
Overall Length — in (OAL)2.598"
Overall Length — mm (OAL)66.0 mm
Functional Length — in (LF)1.693"
Functional Length — mm (LF)43.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignDRS10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999211
EAN3603603827738
File Type Download
150E5R169M16-ISRD10-CF — 3D Model STP Download
150E5R169M16-ISRD10-CF — 2D Model DXF Download
150E5R169M16-ISRD10-CF — Line Drawing PDF Download
