20E2R040B20-SRD10-CF
20E2R040B20-SRD10-CF
20E2R040B20-SRD10-CF

20E2R040B20-SRD10-CF

UGC DOR7999217
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$251.00 CAD - $251.00 CAD
$251.00 CAD
$251.00 CAD - $251.00 CAD
$251.00 CAD

Vendu en lots de : 1

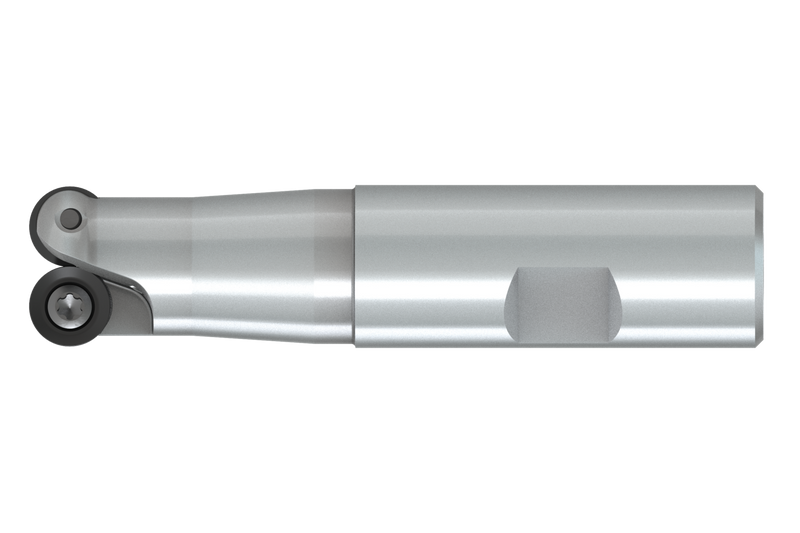

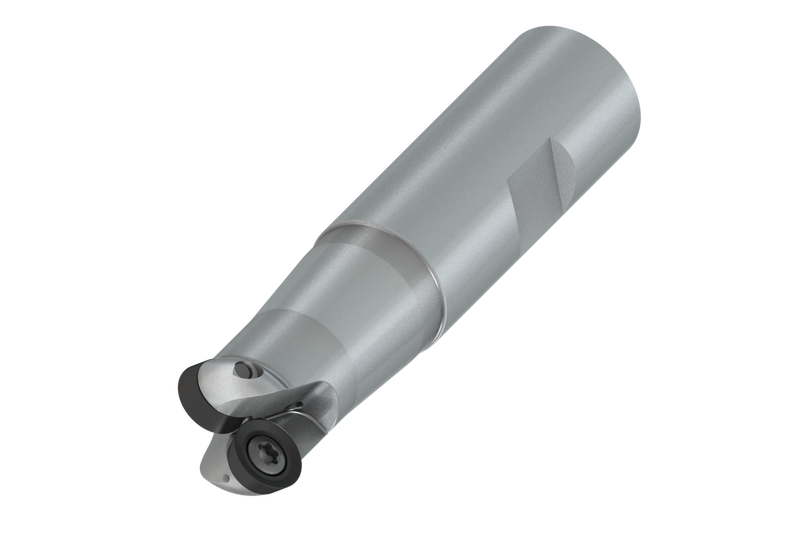

Fraise à surfacer-copier avec une double géométrie négative qui utilise 2 plaquettes simple face RD.. 1003MOT ou RDHT 1003MO-FA, diamètre de coupe maximum 20mm avec queue Weldon 20mm selon DIN 1835B, longueur utile de 40mm et longueur totale de 90mm, arrosage par l'intérieur pour le surfaçage, le fraisage de copie, l'usinage en rampe, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 2,5mm

For more information about this product, click here

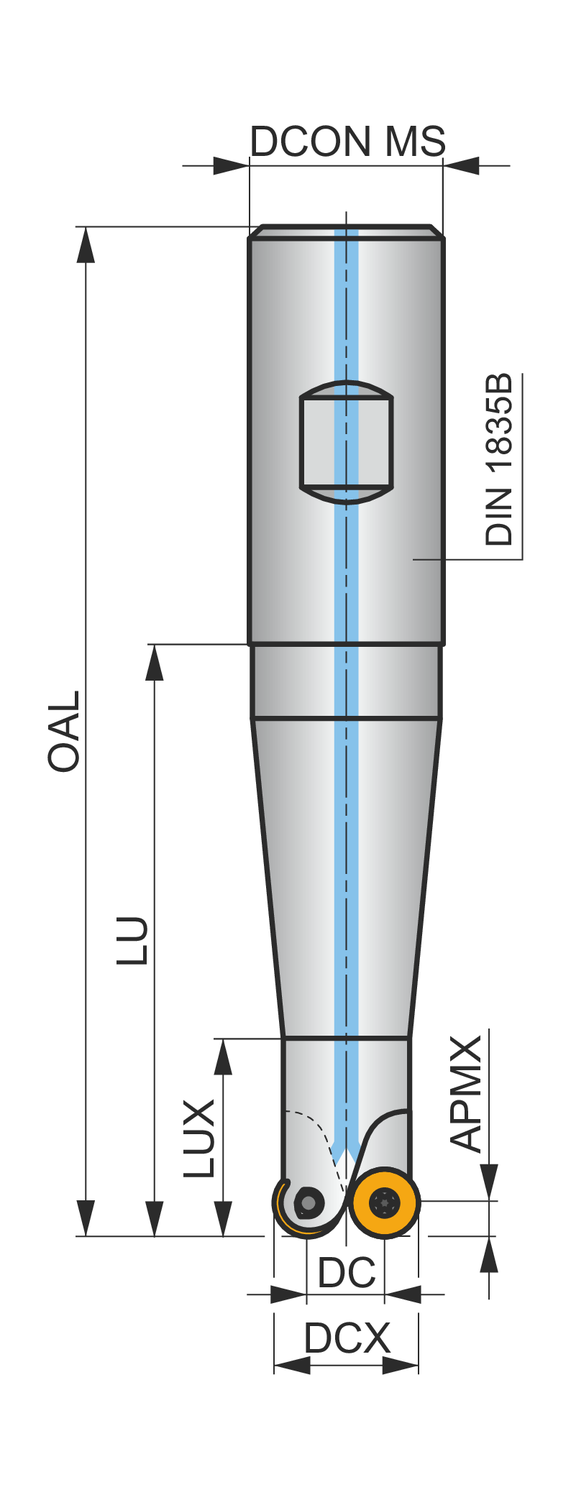

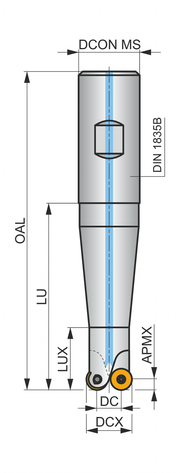

Identification
Ordering Code (ANSI/ISO)20E2R040B20-SRD10-CF
Product Number7999217
Product FamilyDRS10
Insert Geometry
Depth of Cut Max — mm (APMX)2.5 mm
Dimensions
Cutting Diameter — in (DC)0.394"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)90.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignDRS10
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999217
EAN3603603827745
File Type Download
20E2R040B20-SRD10-CF — 3D Model STP Download
20E2R040B20-SRD10-CF — 2D Model DXF Download
20E2R040B20-SRD10-CF — Line Drawing PDF Download
