20E2R060B20-SRD10-CF
20E2R060B20-SRD10-CF
20E2R060B20-SRD10-CF

20E2R060B20-SRD10-CF

UGC DOR7999218
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$259.00 CAD - $259.00 CAD
$259.00 CAD
$259.00 CAD - $259.00 CAD
$259.00 CAD

Vendu en lots de : 1

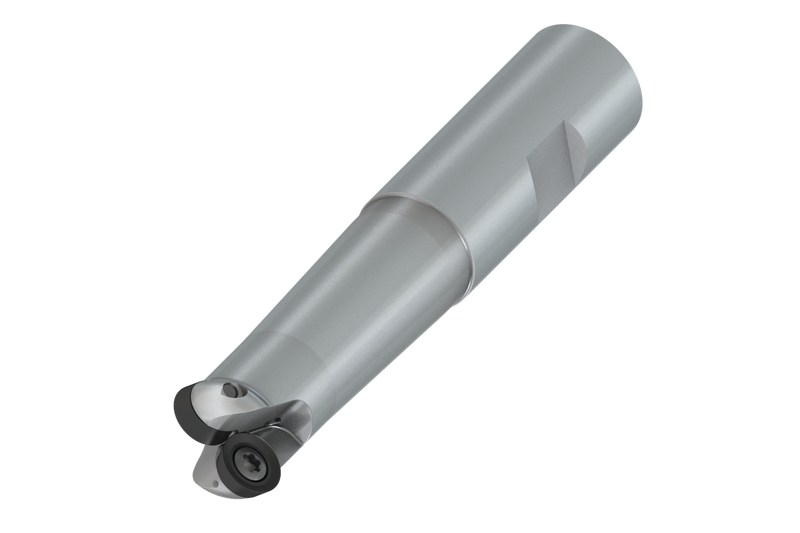

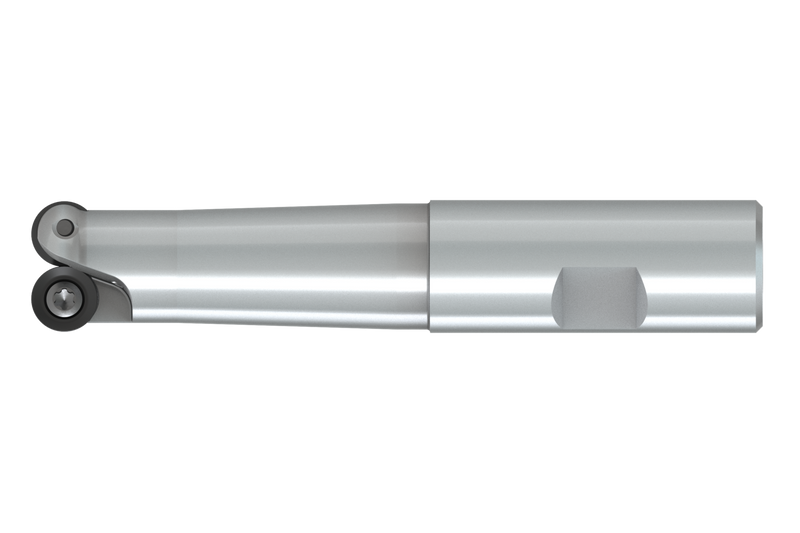

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face RD.. 1003MOT ou RDHT 1003MO-FA, diamètre de coupe maximum de 20 mm avec queue Weldon de 20 mm selon DIN 1835B, 60 mm utilisables et 110 mm de longueur totale, arrosage par l'intérieur pour le surfaçage, le copiage, l'usinage en rampe, le plongée progressive et l'interpolation hélicoïdale avec une profondeur de coupe maximale de 2,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20E2R060B20-SRD10-CF
Product Number7999218
Product FamilyDRS10
Insert Geometry
Depth of Cut Max — mm (APMX)2.5 mm

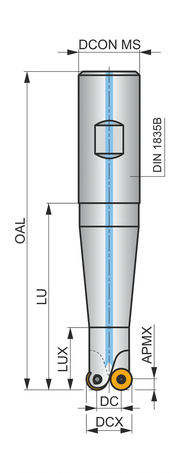

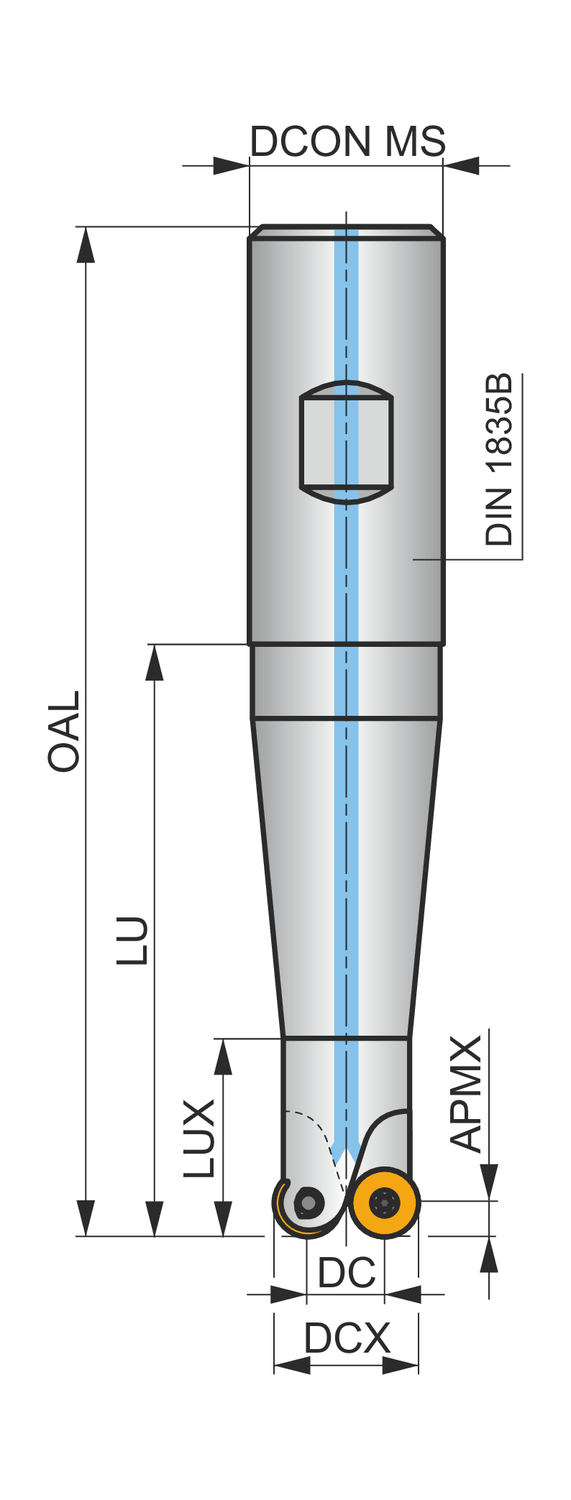

Dimensions
Cutting Diameter — in (DC)0.394"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignDRS10
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999218
EAN3603603827752
File Type Download
20E2R060B20-SRD10-CF — 3D Model STP Download
20E2R060B20-SRD10-CF — 2D Model DXF Download
20E2R060B20-SRD10-CF — Line Drawing PDF Download
