20E2R100B25-SRD10-CF
20E2R100B25-SRD10-CF
20E2R100B25-SRD10-CF

20E2R100B25-SRD10-CF

UGC DOR7999250
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$282.00 CAD - $282.00 CAD
$282.00 CAD
$282.00 CAD - $282.00 CAD
$282.00 CAD

Vendu en lots de : 1

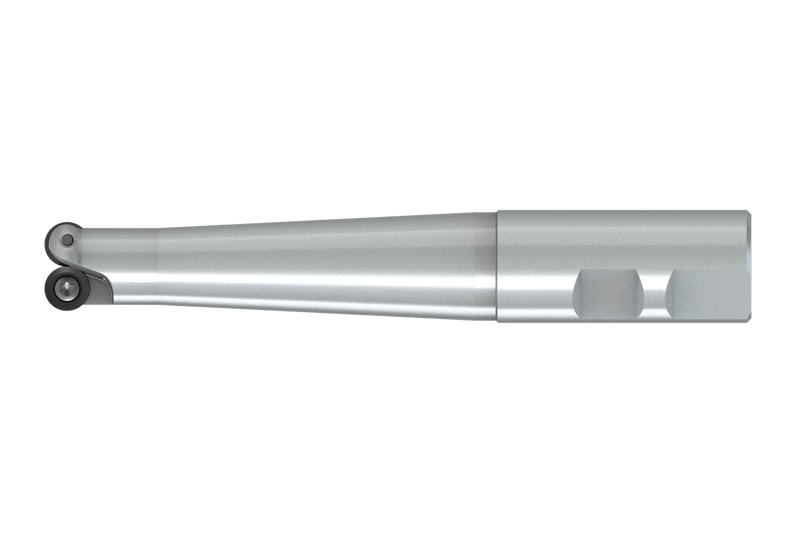

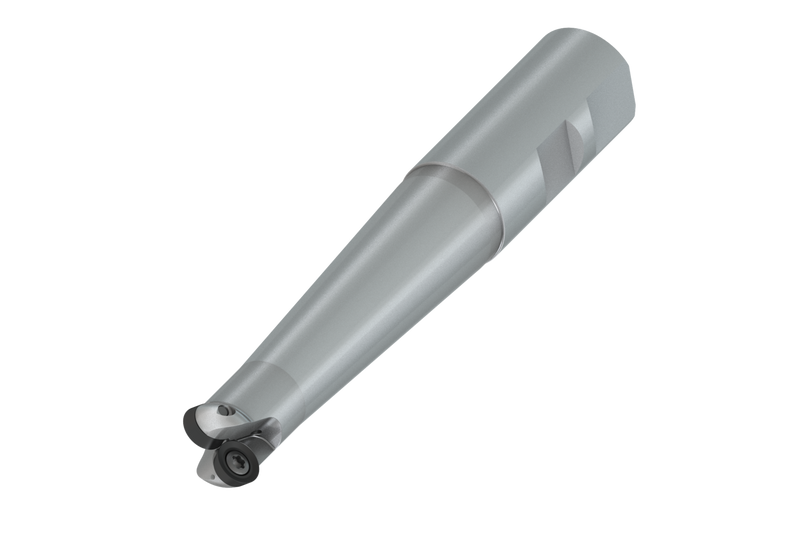

Fraise à surfacer à copier avec géométrie doublement négative qui utilise 2 plaquettes simple face RD.. 1003MOT ou RDHT 1003MO-FA, diamètre de coupe jusqu'à 20mm maximum avec queue Weldon de 25mm selon DIN 1835B, 100mm utilisables et 156mm de longueur totale, arrosage central pour le surfaçage, le copiage, le fraisage en rampe, le fraisage progressif en plongée et le fraisage hélicoïdal avec une profondeur de coupe maximale de 2,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI)20E2R100B25-SRD10-CF
Product Name (ISO)20E2R100B25-SRD10--CF
Product Number7999250
Product FamilyDRS10
Insert Geometry
Depth of Cut Max — mm (APMX)2.5 mm

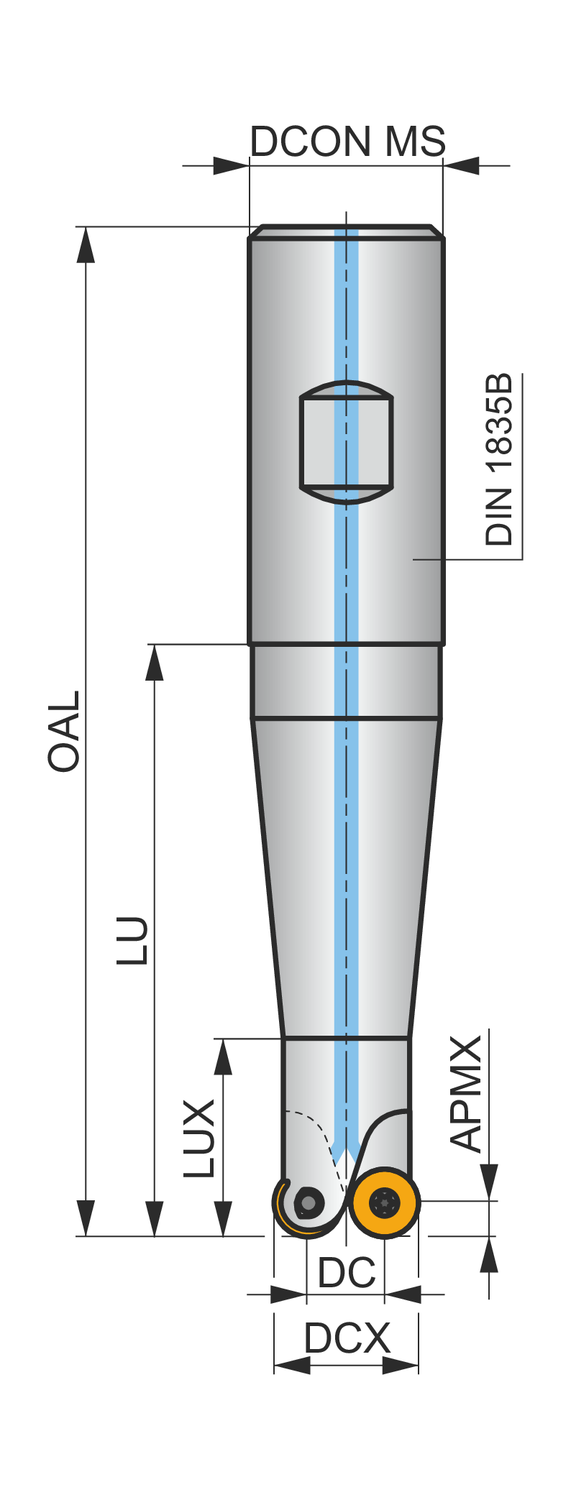

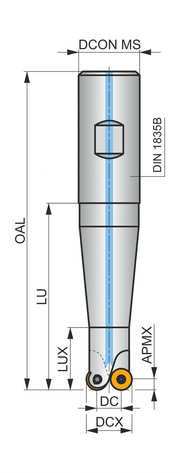

Dimensions
Cutting Diameter — in (DC)0.394"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)6.142"
Overall Length — mm (OAL)156.0 mm
Usable Length — mm (LU)100.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignDRS10
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999250
EAN3603603827776
File Type Download
20E2R100B25-SRD10-CF — 3D Model STP Download
20E2R100B25-SRD10-CF — 2D Model DXF Download
20E2R100B25-SRD10-CF — Line Drawing PDF Download
