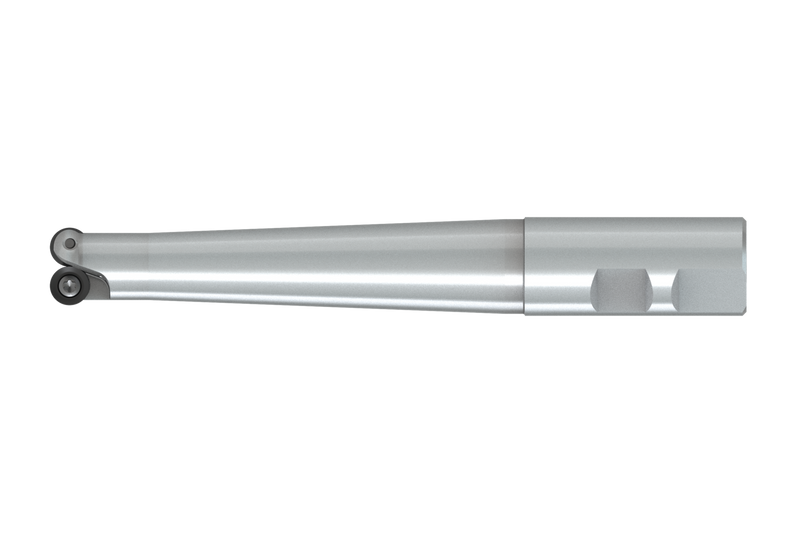

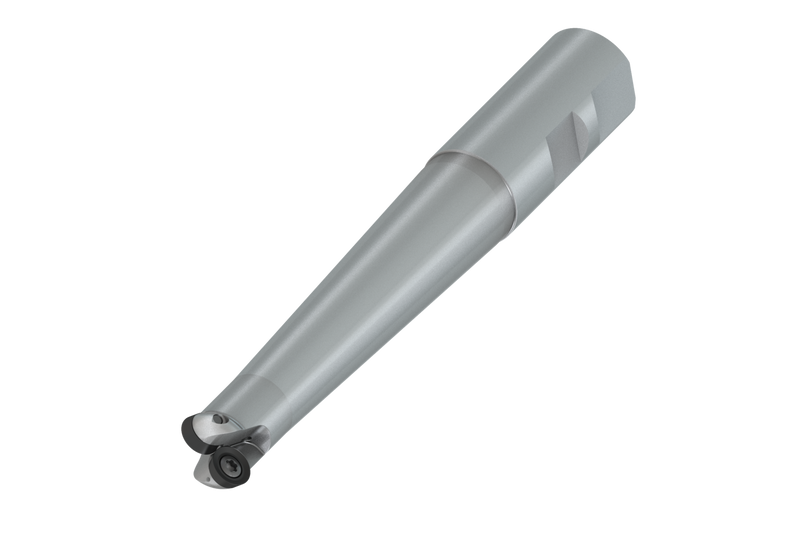

20E2R120B25-SRD10-CF
20E2R120B25-SRD10-CF
20E2R120B25-SRD10-CF

20E2R120B25-SRD10-CF

UGC DOR7999251
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$302.00 CAD - $302.00 CAD
$302.00 CAD
$302.00 CAD - $302.00 CAD
$302.00 CAD

Vendu en lots de : 1

Fraise à copier avec double géométrie négative utilisant 2 plaquettes simple face RD.. 1003MOT ou RDHT 1003MO-FA, diamètre de coupe maximum 20mm avec queue Weldon de 25mm selon DIN 1835B, longueur utile de 120mm et longueur totale de 176mm, arrosage central pour le surfaçage, la copiage, l'interpolation hélicoïdale, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 2.5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20E2R120B25-SRD10-CF
Product Number7999251
Product FamilyDRS10
Insert Geometry
Depth of Cut Max — mm (APMX)2.5 mm

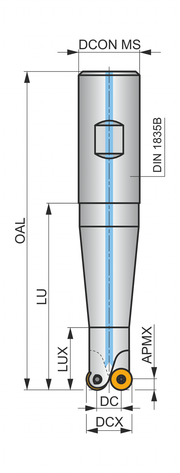

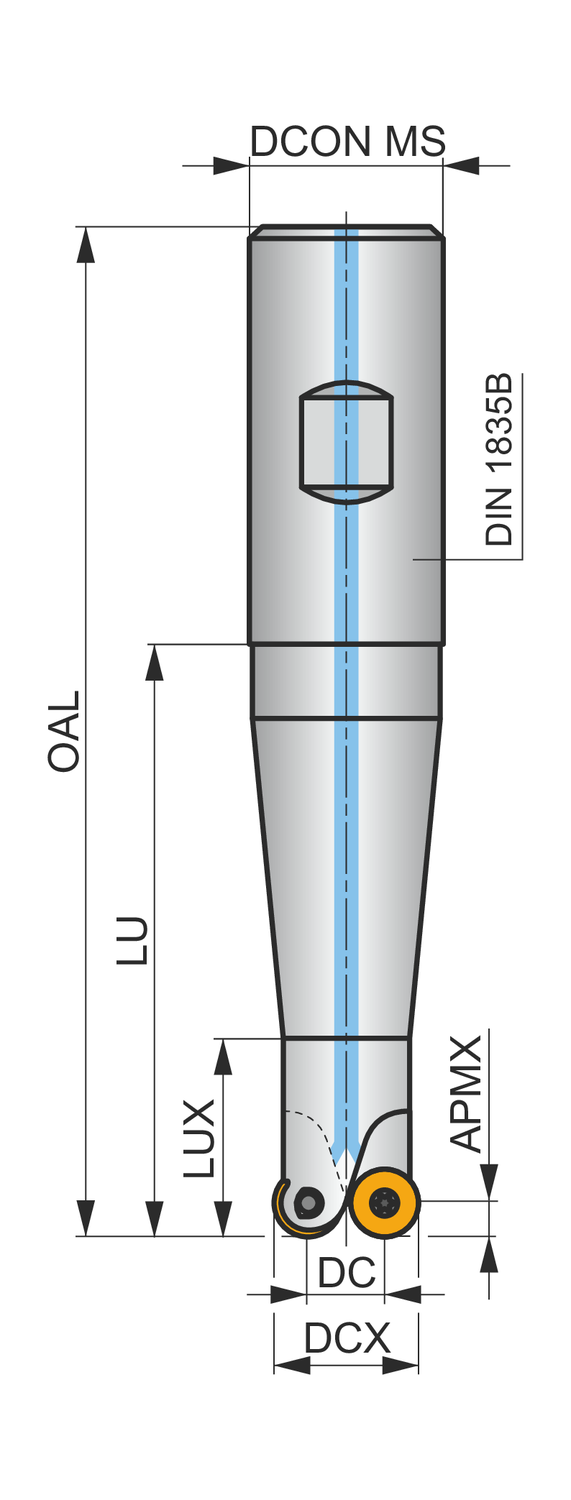

Dimensions
Cutting Diameter — in (DC)0.394"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)6.929"
Overall Length — mm (OAL)176.0 mm
Usable Length — mm (LU)120.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignDRS10
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999251
EAN3603603827783
File Type Download
20E2R120B25-SRD10-CF — 3D Model STP Download
20E2R120B25-SRD10-CF — 2D Model DXF Download
20E2R120B25-SRD10-CF — Line Drawing PDF Download
