20E2R028M10-SRD10-CF
20E2R028M10-SRD10-CF
20E2R028M10-SRD10-CF

20E2R028M10-SRD10-CF

UGC DOR7999252
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$273.00 CAD - $273.00 CAD
$273.00 CAD
$273.00 CAD - $273.00 CAD
$273.00 CAD

Vendu en lots de : 1

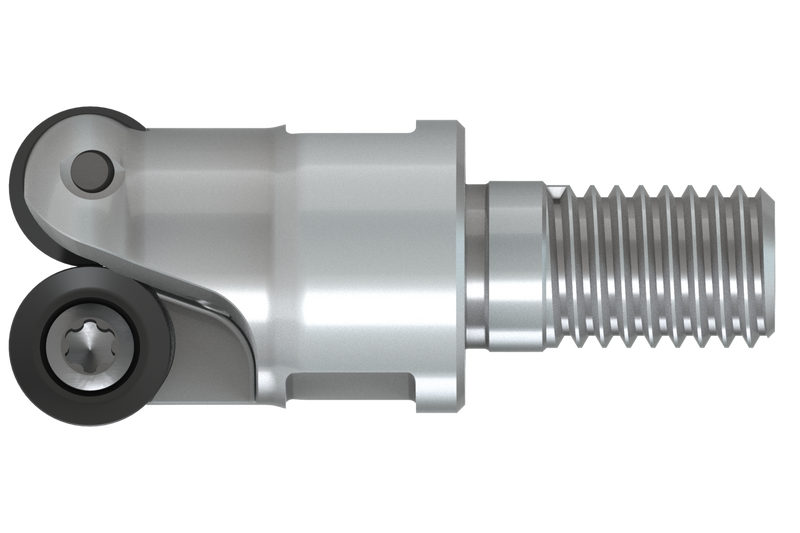

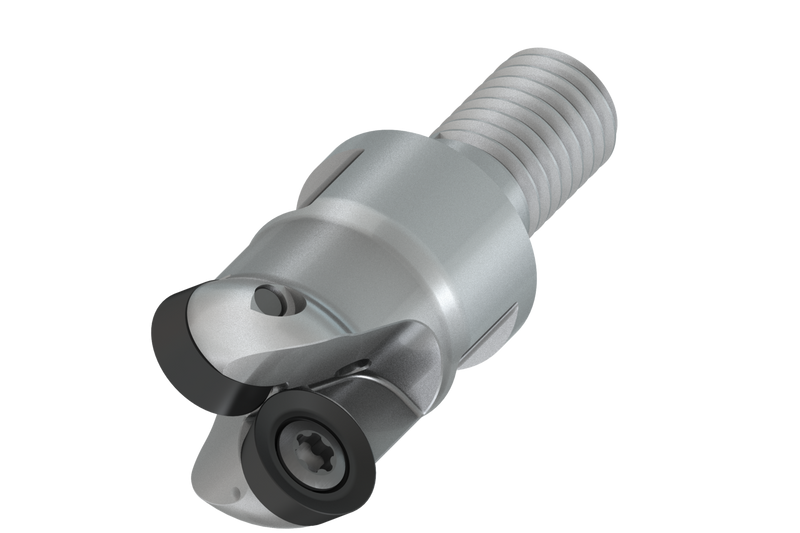

Fraise à copier avec géométrie double négative qui utilise 2 plaquettes simple face RD.. 1003MOT ou RDHT 1003MO-FA, diamètre de coupe maximal de 20 mm avec queue filetée M10 pour porte-outils modulaires standard, longueur fonctionnelle de 28 mm et longueur de dépassement de 47 mm, arrosage central pour le surfaçage, le fraisage en plongée, le fraisage en hélice, le fraisage en ramping et le fraisage progressif avec une profondeur de coupe maximale de 2,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20E2R028M10-SRD10-CF
Product Number7999252
Product FamilyDRS10
Insert Geometry
Depth of Cut Max — mm (APMX)2.5 mm

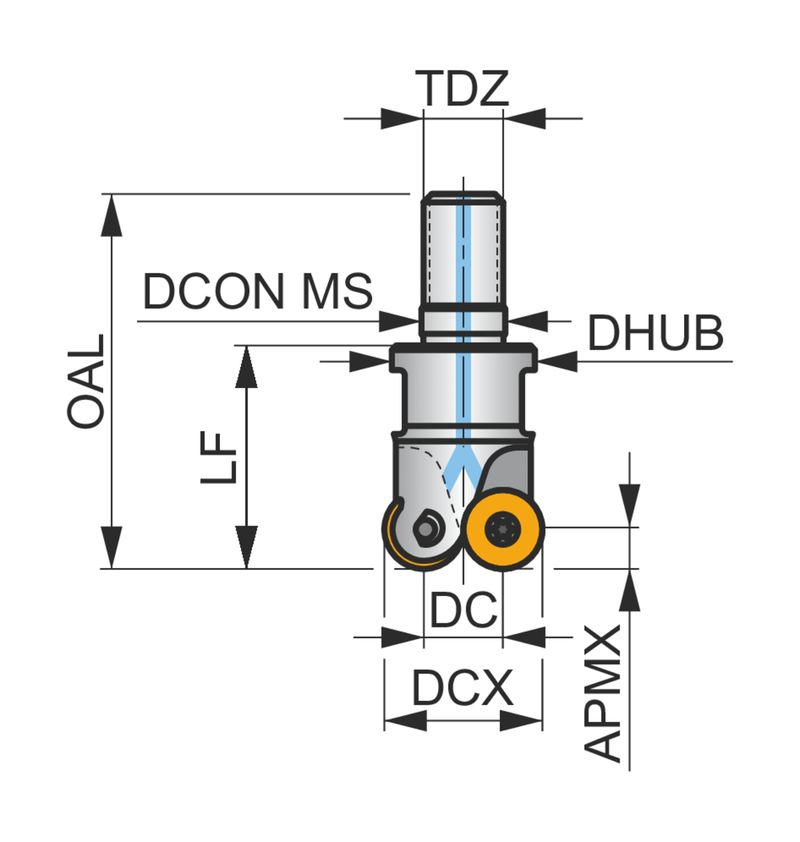

Dimensions
Cutting Diameter — in (DC)0.394"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)1.85"
Overall Length — mm (OAL)47.0 mm
Functional Length — mm (LF)28.0 mm
Connection Dia. — in (DCON)0.413"
Connection Dia. — mm (DCON)10.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M10
Tool Information
Tool DesignDRS10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999252
EAN3603603827790
File Type Download
20E2R028M10-SRD10-CF — 3D Model STP Download
20E2R028M10-SRD10-CF — 2D Model DXF Download
20E2R028M10-SRD10-CF — Line Drawing PDF Download
