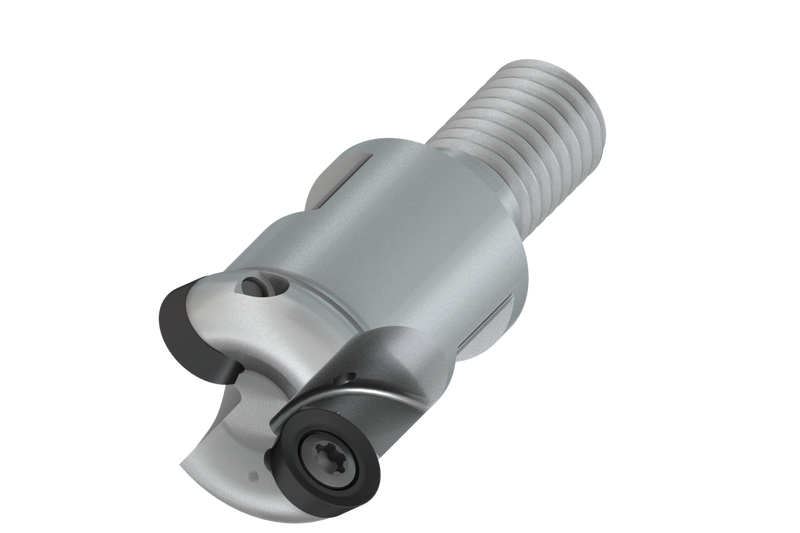

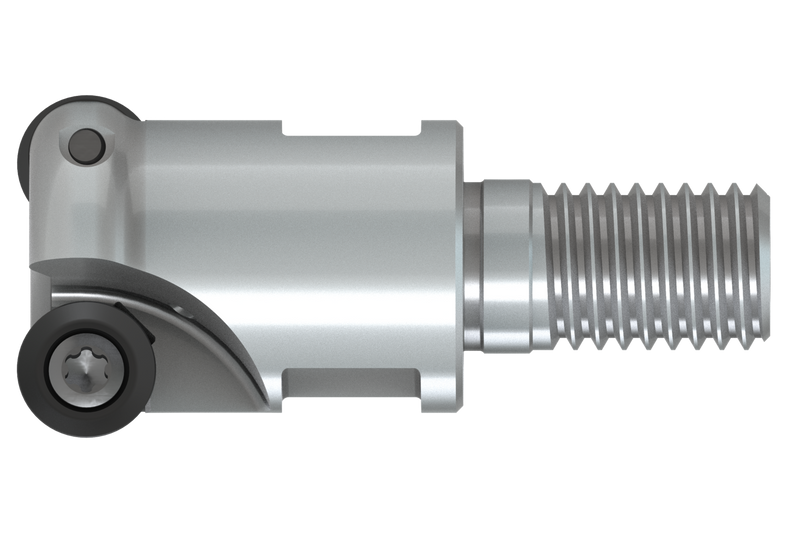

25E2R032M12-SRD10-CF
25E2R032M12-SRD10-CF
25E2R032M12-SRD10-CF

25E2R032M12-SRD10-CF

UGC DOR7999253
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$273.00 CAD - $273.00 CAD
$273.00 CAD
$273.00 CAD - $273.00 CAD
$273.00 CAD

Vendu en lots de : 1

Fraise à copier avec une géométrie doublement positive qui utilise 2 plaquettes simple face RD... 1003MOT ou RDHT 1003MO-FA, diamètre de coupe jusqu'à 25 mm maximum avec queue filetée M12 pour porte-outils modulaires standard, longueur fonctionnelle de 32 mm et longueur de dépassement de 54 mm, arrosage central pour le surfaçage, le fraisage en plongée, le fraisage en ramping, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 2,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25E2R032M12-SRD10-CF
Product Number7999253
Product FamilyDRS10
Insert Geometry
Depth of Cut Max — mm (APMX)2.5 mm

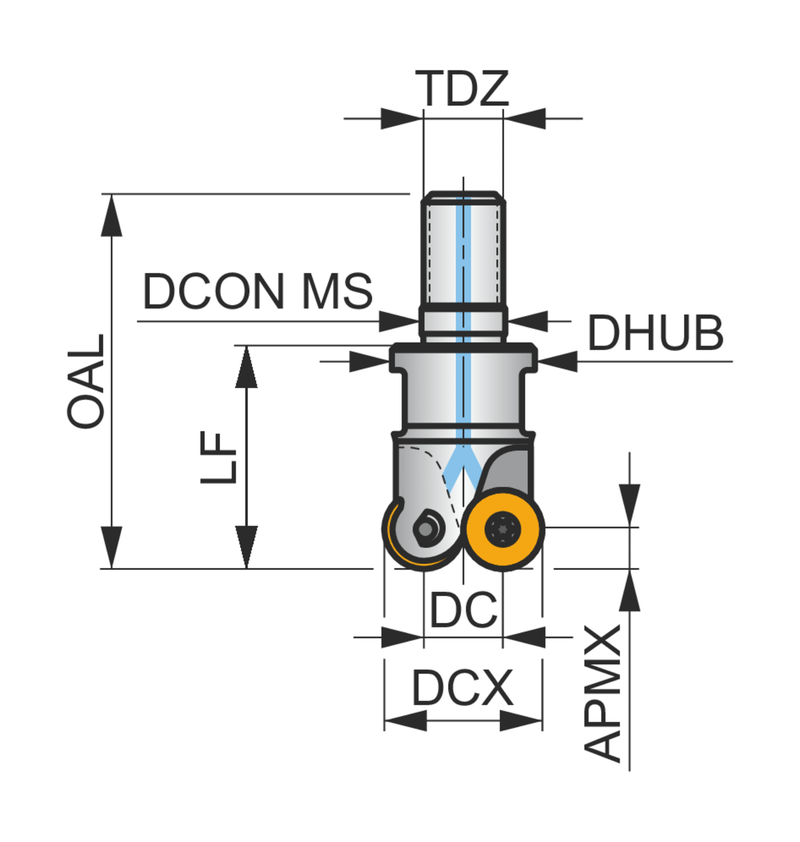

Dimensions
Cutting Diameter — in (DC)0.591"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Functional Length — mm (LF)32.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M12
Tool Information
Tool DesignDRS10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999253
EAN3603603827806
File Type Download
25E2R032M12-SRD10-CF — 3D Model STP Download
25E2R032M12-SRD10-CF — 2D Model DXF Download
25E2R032M12-SRD10-CF — Line Drawing PDF Download
