30E4R042M16-SRD10-CF
30E4R042M16-SRD10-CF
30E4R042M16-SRD10-CF

30E4R042M16-SRD10-CF

UGC DOR7999255
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$379.00 CAD - $379.00 CAD
$379.00 CAD
$379.00 CAD - $379.00 CAD
$379.00 CAD

Vendu en lots de : 1

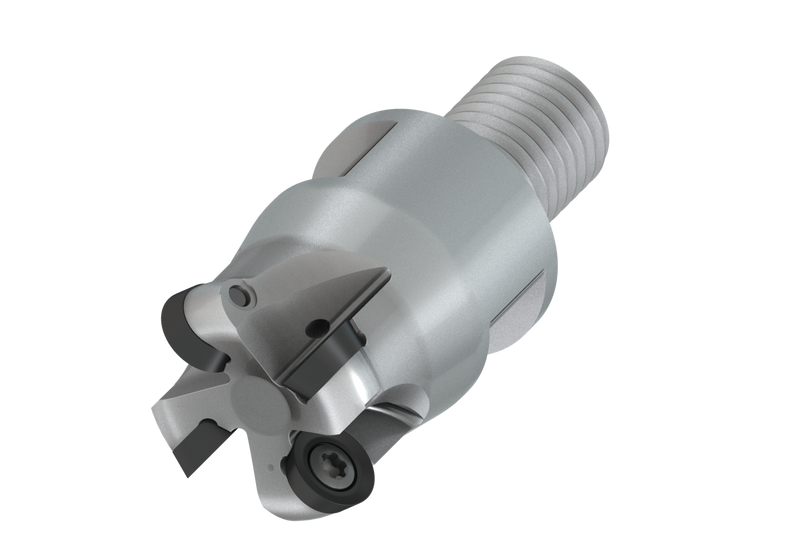

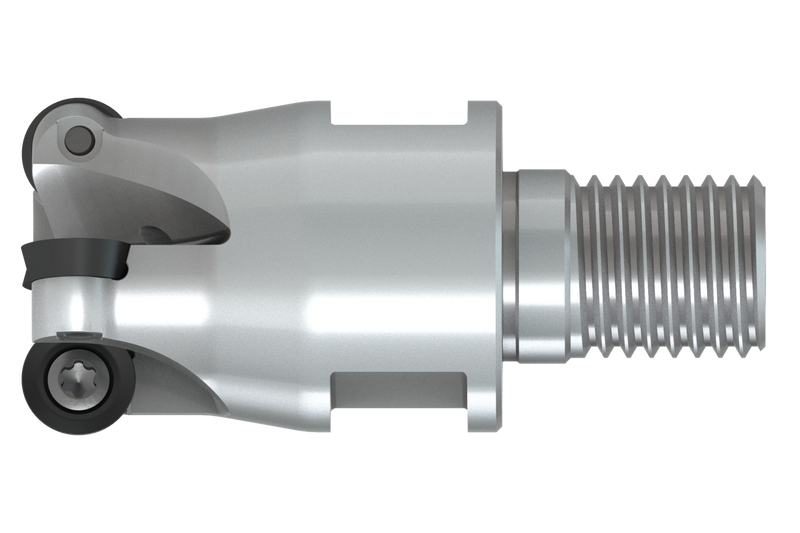

Fraise à surfacer-dresser à copier avec géométrie doublement négative, utilisant 4 plaquettes unilatérales RD.. 1003MOT ou RDHT 1003MO-FA, diamètre de coupe maximal de 30 mm avec queue filetée M16 pour porte-outils modulaires standards, longueur fonctionnelle de 42 mm et longueur en porte-à-faux de 65 mm, arrosage central pour le surfaçage, la copie, l'usinage en rampe, le plongée progressive et l'usinage hélicoïdal avec une profondeur de coupe maximale de 2,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)30E4R042M16-SRD10-CF
Product Number7999255
Product FamilyDRS10
Insert Geometry
Depth of Cut Max — mm (APMX)2.5 mm

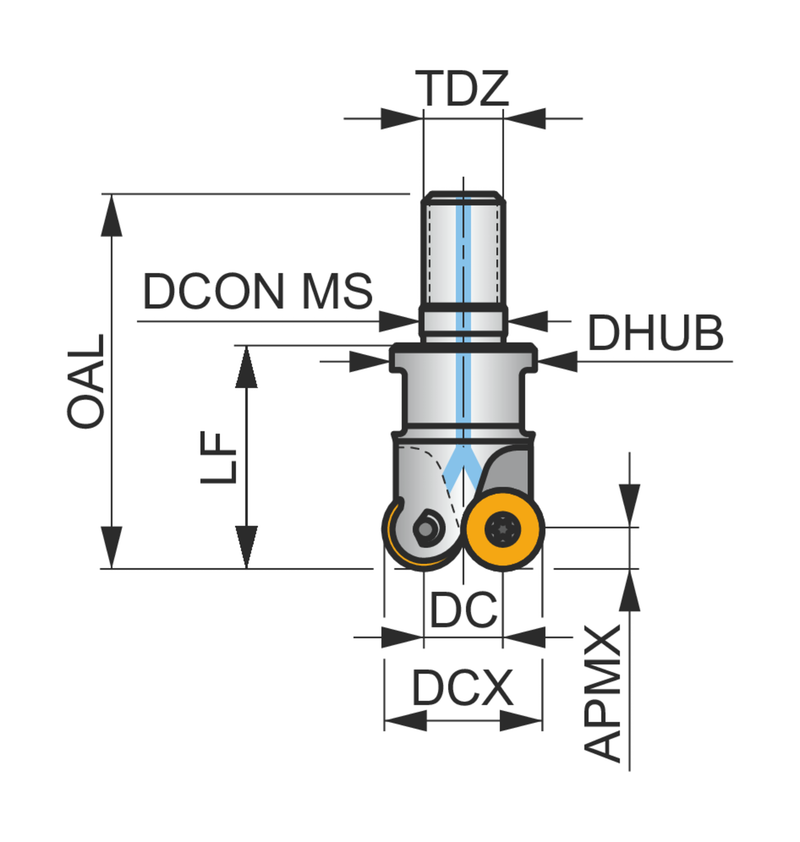

Dimensions
Cutting Diameter — in (DC)0.787"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)2.559"
Overall Length — mm (OAL)65.0 mm
Functional Length — mm (LF)42.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignDRS10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999255
EAN3603603827820
File Type Download
30E4R042M16-SRD10-CF — 3D Model STP Download
30E4R042M16-SRD10-CF — 2D Model DXF Download
30E4R042M16-SRD10-CF — Line Drawing PDF Download
