35E5R042M16-SRD10-CF
35E5R042M16-SRD10-CF
35E5R042M16-SRD10-CF

35E5R042M16-SRD10-CF

UGC DOR7999256
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$476.00 CAD - $476.00 CAD
$476.00 CAD
$476.00 CAD - $476.00 CAD
$476.00 CAD

Vendu en lots de : 1

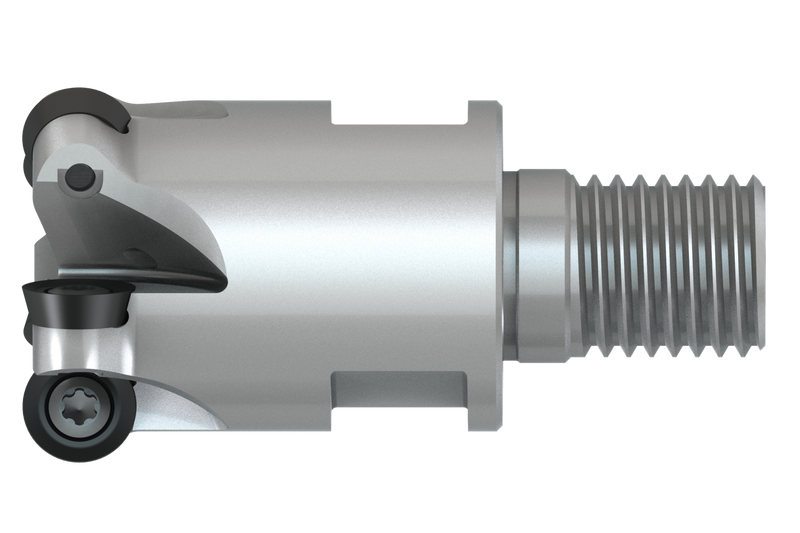

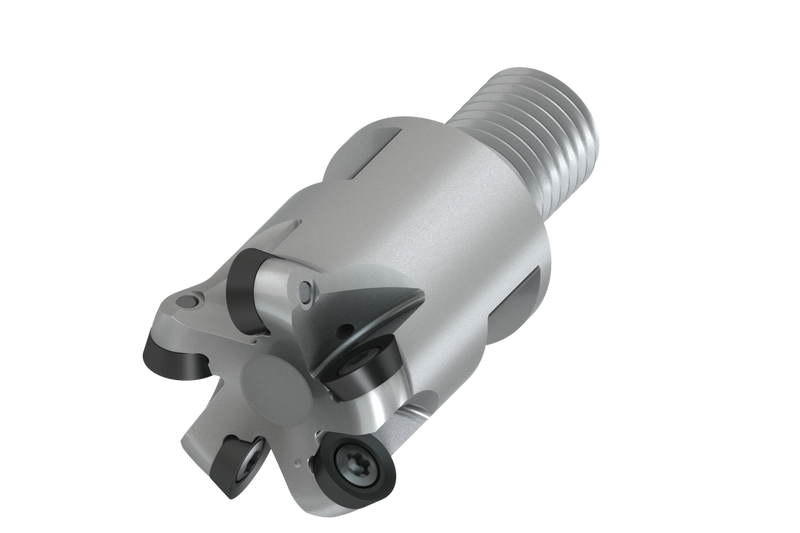

Fraise à surfacer-copier avec géométrie doublement négative, utilisant 5 plaquettes simple-face RD.. 1003MOT ou RDHT 1003MO-FA, diamètre de coupe jusqu'à 35mm maximum avec queue filetée M16 pour porte-outils modulaires standards, longueur fonctionnelle de 42mm et longueur en porte-à-faux de 65mm, arrosage central pour le surfaçage, la copie, le rampement, le fraisage par plongées progressives et le fraisage hélicoïdal avec une profondeur de passe maximale de 2,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)35E5R042M16-SRD10-CF
Product Number7999256
Product FamilyDRS10
Insert Geometry
Depth of Cut Max — mm (APMX)2.5 mm

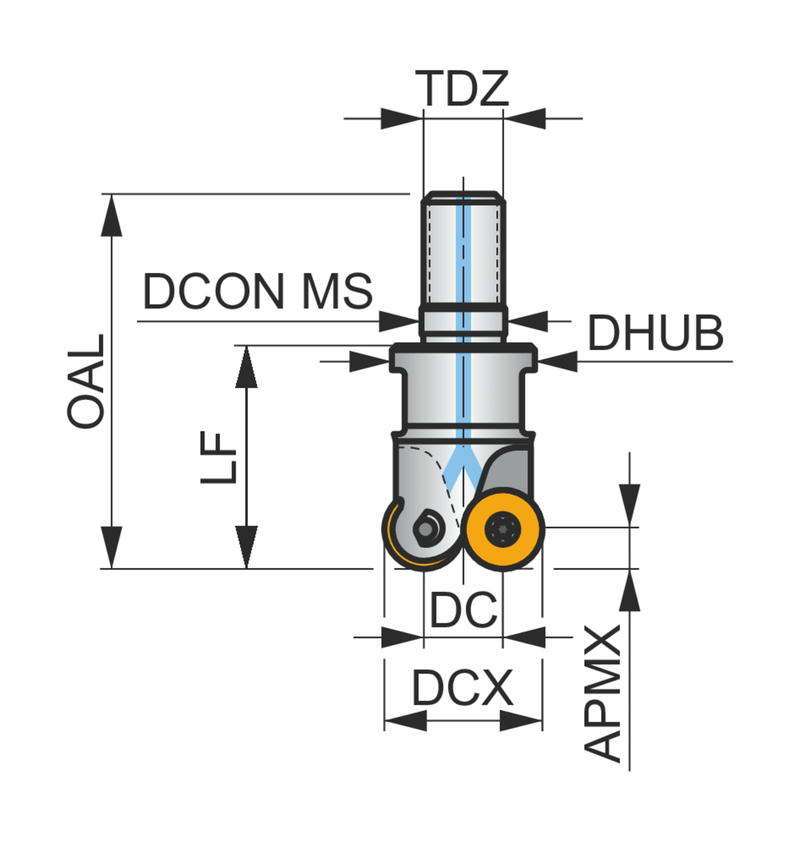

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)2.559"
Overall Length — mm (OAL)65.0 mm
Functional Length — mm (LF)42.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignDRS10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999256
EAN3603603827837
File Type Download
35E5R042M16-SRD10-CF — 3D Model STP Download
35E5R042M16-SRD10-CF — 2D Model DXF Download
35E5R042M16-SRD10-CF — Line Drawing PDF Download
