15E2R060B16-SRD07-CF
15E2R060B16-SRD07-CF
15E2R060B16-SRD07-CF

15E2R060B16-SRD07-CF

UGC DOR7999259
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$235.00 CAD - $235.00 CAD
$235.00 CAD
$235.00 CAD - $235.00 CAD
$235.00 CAD

Vendu en lots de : 1

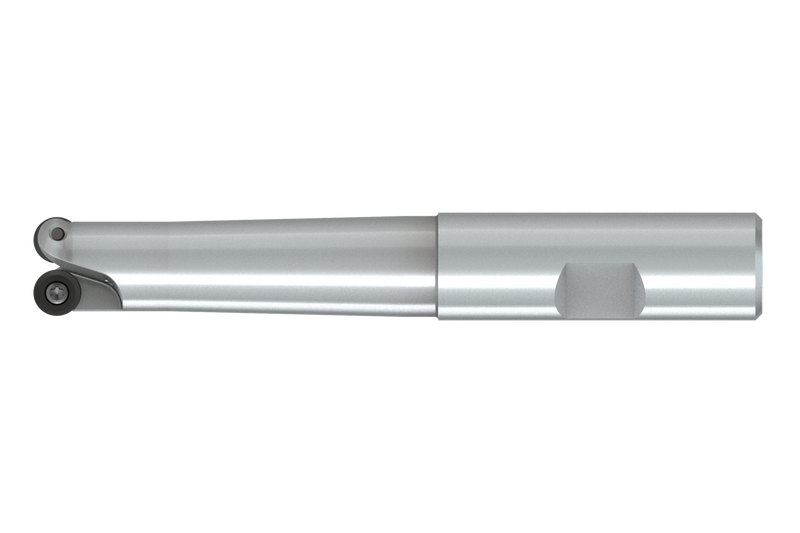

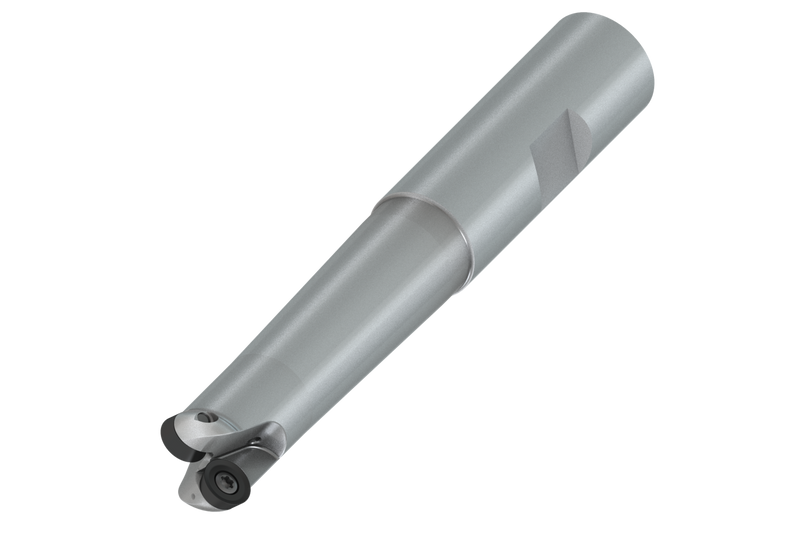

Fraise à copier avec géométrie positive/négative qui utilise 2 plaquettes simple face RD.. 0702MO.. ou RD.. 07T1MO.., diamètre de coupe maximal de 15 mm avec queue Weldon de 16 mm selon DIN 1835B, longueur utile de 60 mm et longueur totale de 108 mm, arrosage par l'intérieur pour le surfaçage, le copiage, l'usinage en ramping, l'usinage en plongée progressive et l'usinage hélicoïdal avec une profondeur de coupe maximale de 2 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)15E2R060B16-SRD07-CF
Product Number7999259
Product FamilySRD07
Insert Geometry
Depth of Cut Max — mm (APMX)2.0 mm

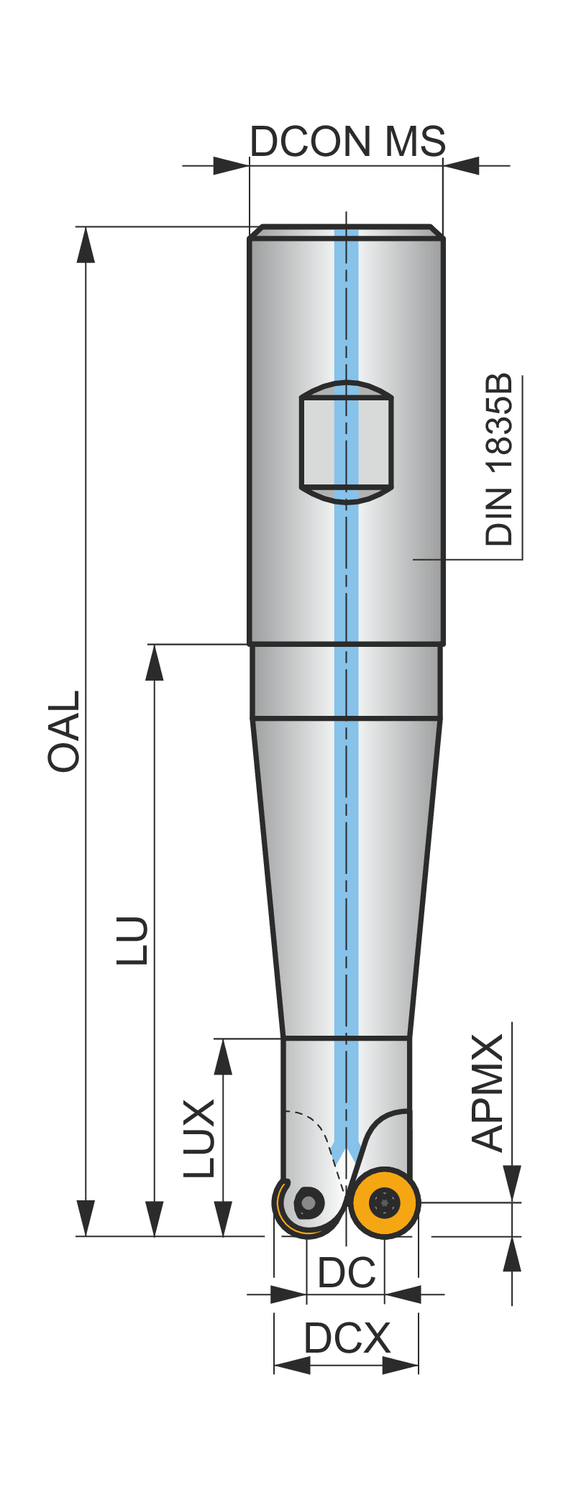

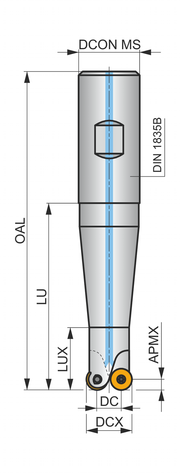

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)4.252"
Overall Length — mm (OAL)108.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSRD07
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999259
EAN3603603827851
File Type Download
15E2R060B16-SRD07-CF — 3D Model STP Download
15E2R060B16-SRD07-CF — 2D Model DXF Download
15E2R060B16-SRD07-CF — Line Drawing PDF Download
