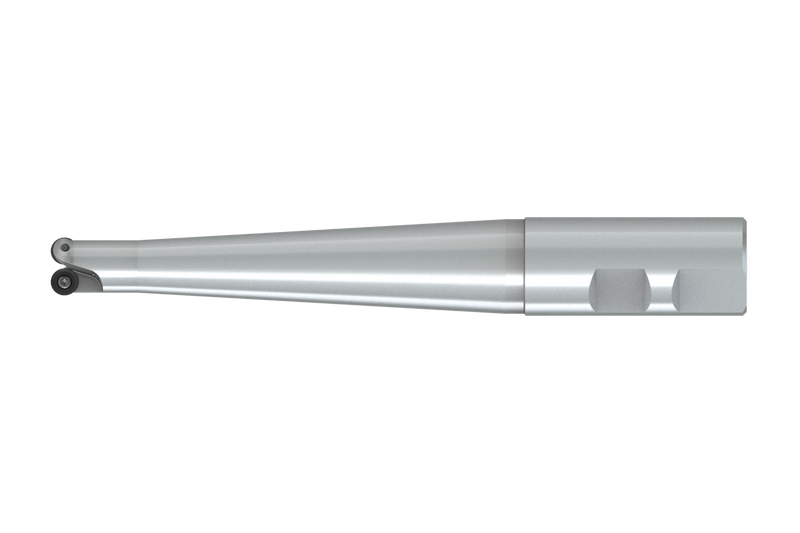

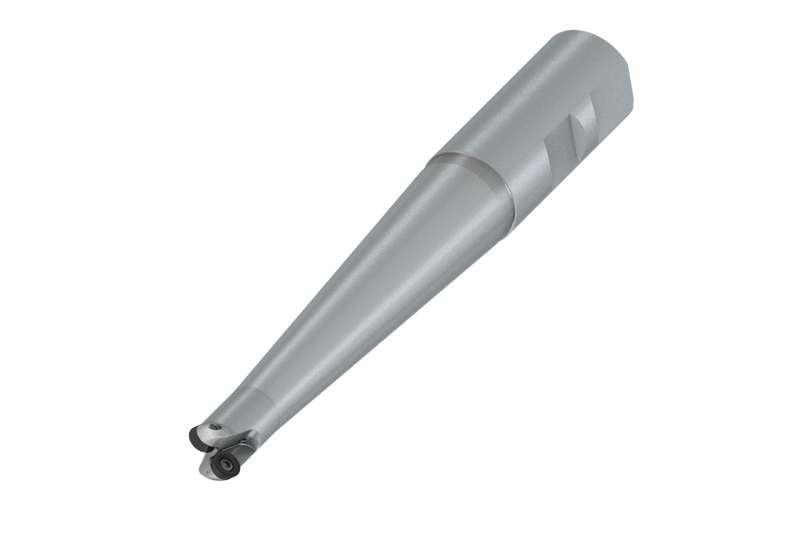

15E2R120B25-SRD07-CF
15E2R120B25-SRD07-CF
15E2R120B25-SRD07-CF

15E2R120B25-SRD07-CF

UGC DOR7999272
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$282.00 CAD - $282.00 CAD
$282.00 CAD
$282.00 CAD - $282.00 CAD
$282.00 CAD

Vendu en lots de : 1

Fraise à surfacer à copier avec géométrie positive/négative utilisant 2 plaquettes simple face RD.. 0702MO.. ou RD.. 07T1MO.., diamètre de coupe jusqu'à 15 mm maximum avec queue Weldon de 25 mm selon DIN 1835B, longueur utile de 120 mm et longueur totale de 176 mm, arrosage par l'intérieur pour le surfaçage, le copiage, l'usinage en rampe, le fraisage par plongées successives et le fraisage hélicoïdal avec une profondeur de coupe maximale de 2 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)15E2R120B25-SRD07-CF
Product Number7999272
Product FamilySRD07
Insert Geometry
Depth of Cut Max — mm (APMX)2.0 mm

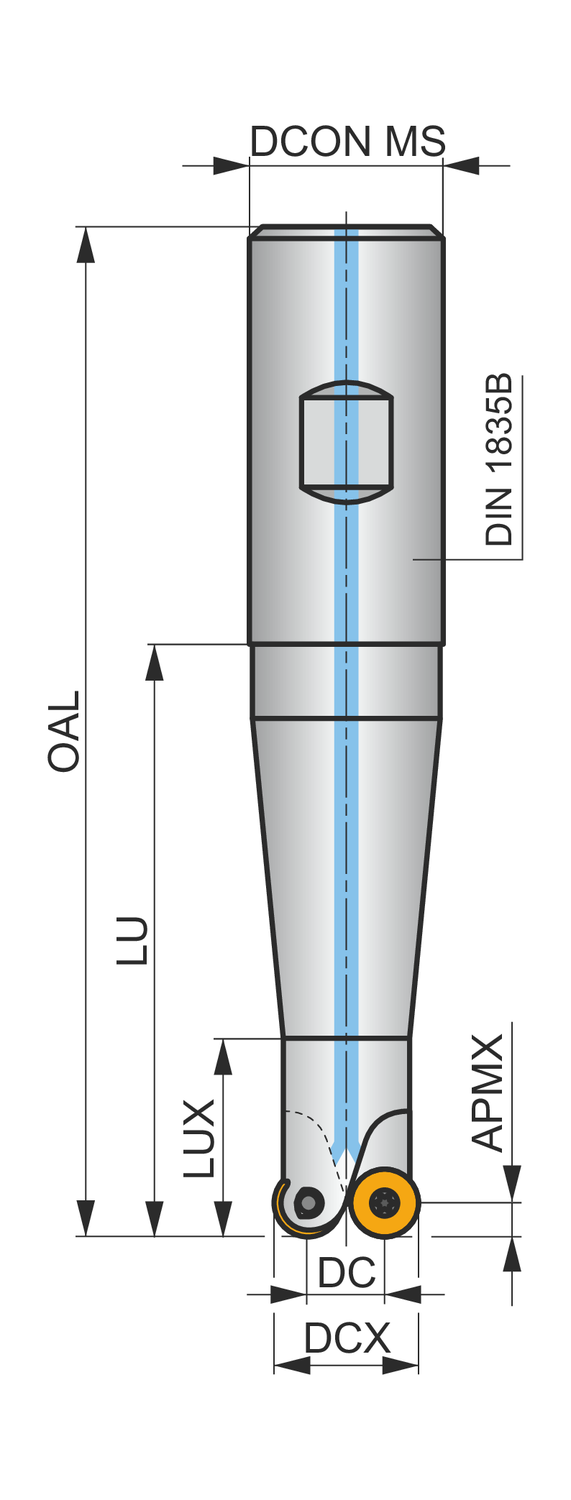

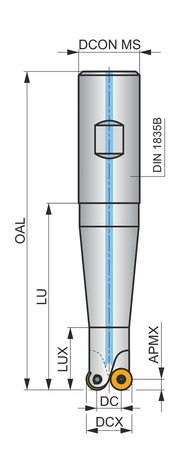

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)6.929"
Overall Length — mm (OAL)176.0 mm
Usable Length — mm (LU)120.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSRD07
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999272
EAN3603603827882
File Type Download
15E2R120B25-SRD07-CF — 3D Model STP Download
15E2R120B25-SRD07-CF — 2D Model DXF Download
15E2R120B25-SRD07-CF — Line Drawing PDF Download
