15E2R028M08-SRD07-CF
15E2R028M08-SRD07-CF
15E2R028M08-SRD07-CF

15E2R028M08-SRD07-CF

UGC DOR7999273
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$254.00 CAD - $254.00 CAD
$254.00 CAD
$254.00 CAD - $254.00 CAD
$254.00 CAD

Vendu en lots de : 1

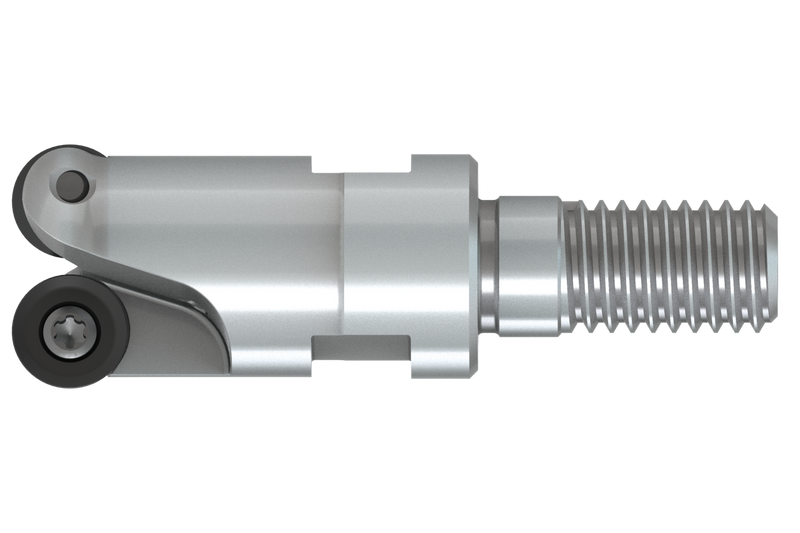

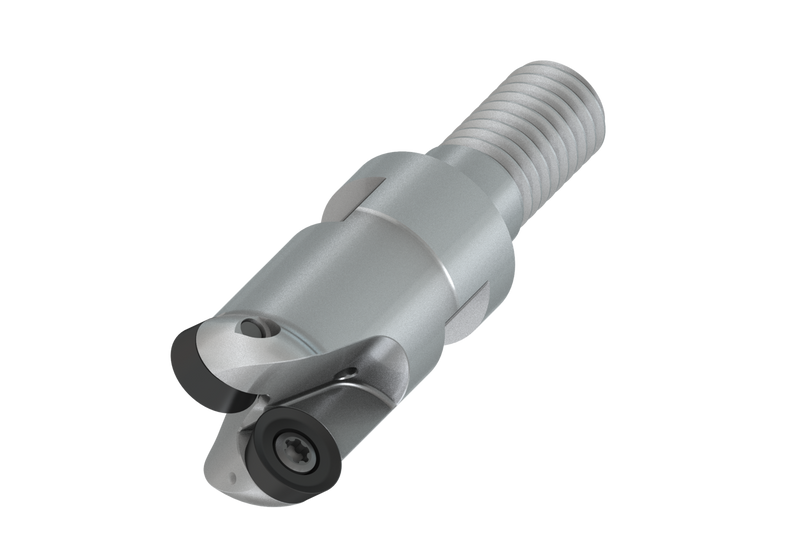

Fraise à copier avec géométrie positive/négative qui utilise 2 plaquettes simple face RD.. 0702MO.. ou RD.. 07T1MO.., diamètre de coupe maximal de 15 mm avec queue filetée M8 pour les porte-outils modulaires standard, longueur fonctionnelle de 28 mm et longueur de dépassement de 46 mm, arrosage interne pour le surfaçage, la copiage, l'usinage en rampe, le plongée progressive et l'usinage hélicoïdal avec une profondeur de coupe maximale de 2 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)15E2R028M08-SRD07-CF
Product Number7999273
Product FamilySRD07
Insert Geometry
Depth of Cut Max — mm (APMX)2.0 mm

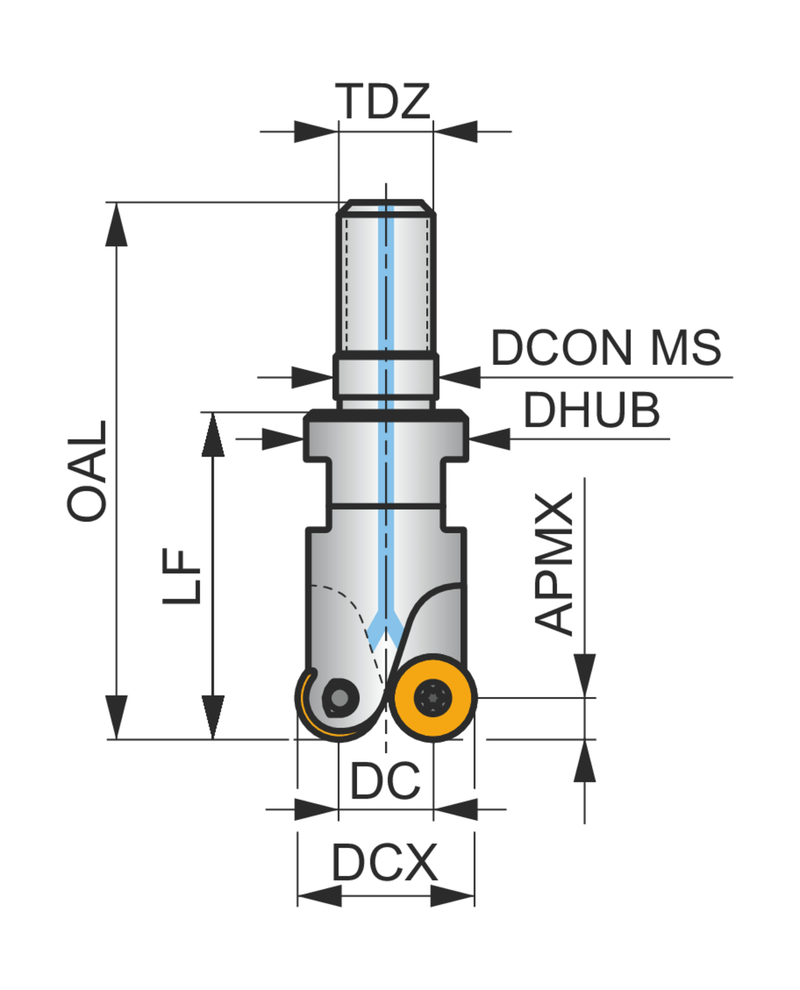

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)1.811"
Overall Length — mm (OAL)46.0 mm
Functional Length — mm (LF)28.0 mm
Connection Dia. — in (DCON)0.335"
Connection Dia. — mm (DCON)8.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M8
Tool Information
Tool DesignSRD07
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999273
EAN3603603827899
File Type Download
15E2R028M08-SRD07-CF — 3D Model STP Download
15E2R028M08-SRD07-CF — 2D Model DXF Download
15E2R028M08-SRD07-CF — Line Drawing PDF Download
