20E4R028M10-SRD07-CF
20E4R028M10-SRD07-CF
20E4R028M10-SRD07-CF

20E4R028M10-SRD07-CF

UGC DOR7999275
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$385.00 CAD - $385.00 CAD
$385.00 CAD
$385.00 CAD - $385.00 CAD
$385.00 CAD

Vendu en lots de : 1

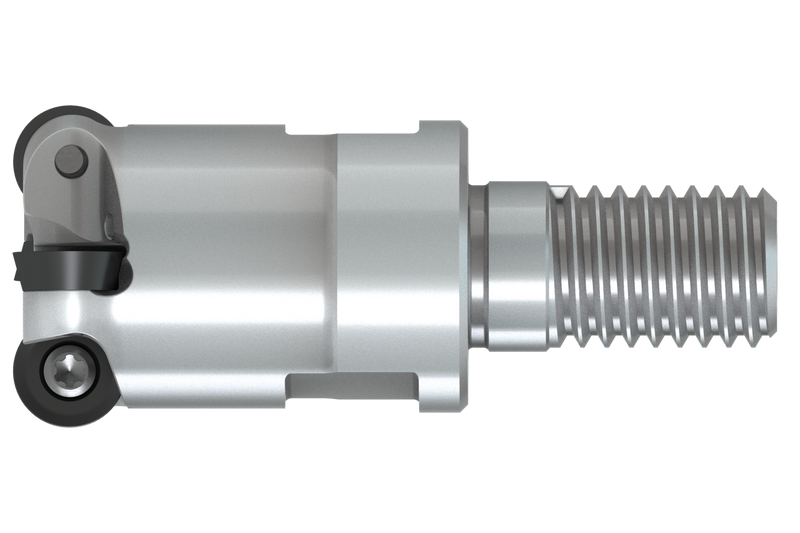

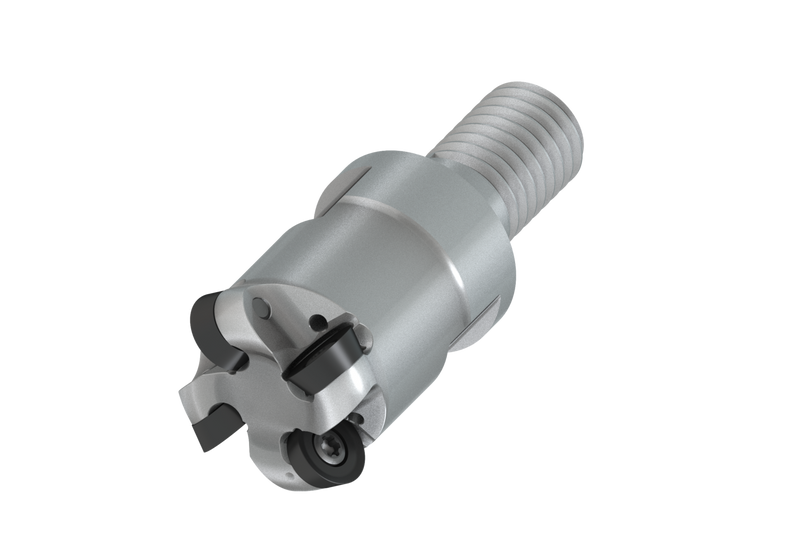

Fraise à surfacer à copier avec double géométrie négative utilisant 4 plaquettes simple-face RD.. 0702MO.. ou RD.. 07T1MO.., diamètre de coupe maximum 20mm avec queue filetée M10 pour porte-outils modulaires standards, longueur fonctionnelle de 28mm et longueur de saillie de 47mm, arrosage central pour le surfaçage, le copiage, l'usinage en rampe, le plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 2mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20E4R028M10-SRD07-CF
Product Number7999275
Product FamilySRD07
Insert Geometry

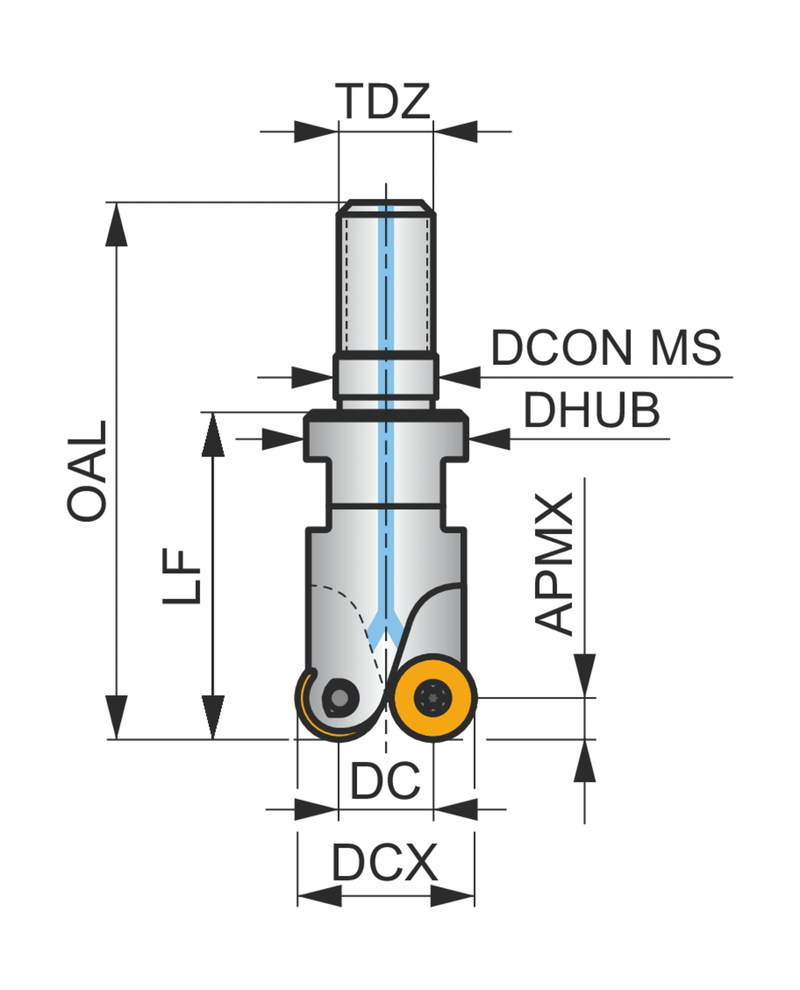

Depth of Cut Max — mm (APMX)2.0 mm
Dimensions
Cutting Diameter — in (DC)0.512"
Cutting Diameter — mm (DC)13.0 mm
Overall Length — in (OAL)1.85"
Overall Length — mm (OAL)47.0 mm
Functional Length — mm (LF)28.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M10
Tool Information
Tool DesignSRD07
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999275
EAN3603603827912
File Type Download
20E4R028M10-SRD07-CF — 3D Model STP Download
20E4R028M10-SRD07-CF — 2D Model DXF Download
20E4R028M10-SRD07-CF — Line Drawing PDF Download
