25E5R028M12-SRD07-CF
25E5R028M12-SRD07-CF
25E5R028M12-SRD07-CF

25E5R028M12-SRD07-CF

UGC DOR7999276
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$445.00 CAD - $445.00 CAD
$445.00 CAD
$445.00 CAD - $445.00 CAD
$445.00 CAD

Vendu en lots de : 1

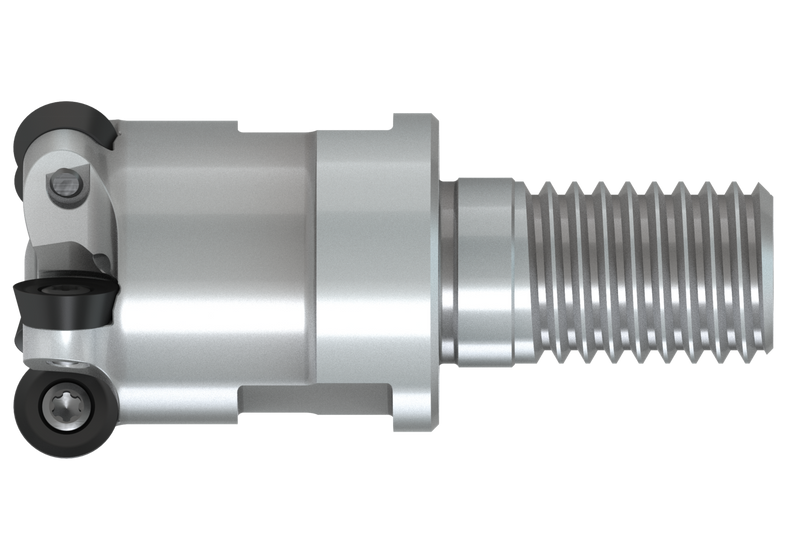

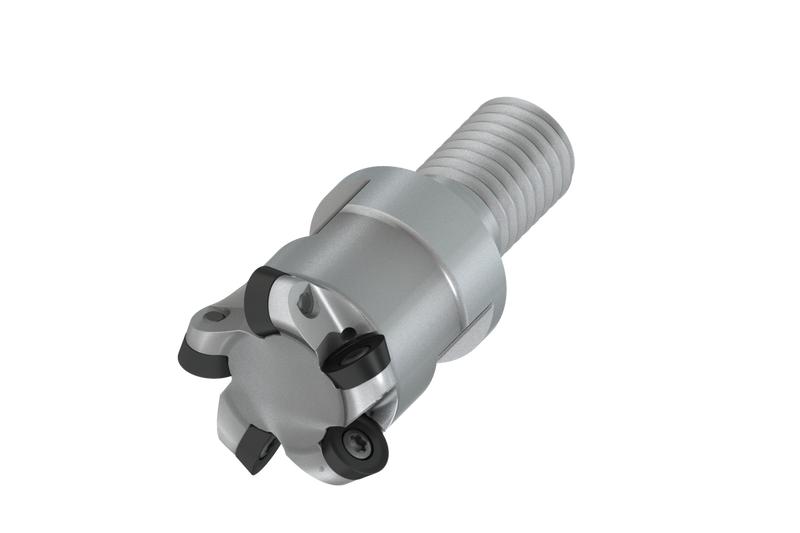

Fraise à copier avec géométrie double négative qui utilise 5 plaquettes simple face RD.. 0702MO.. ou RD.. 07T1MO.., diamètre de coupe maximal de 25mm avec queue filetée M12 pour porte-outils modulaires standards, longueur fonctionnelle de 28mm et longueur en porte-à-faux de 50mm, arrosage par l'intérieur pour le surfaçage, la copie, l'usinage en ramping, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 2mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25E5R028M12-SRD07-CF
Product Number7999276
Product FamilySRD07

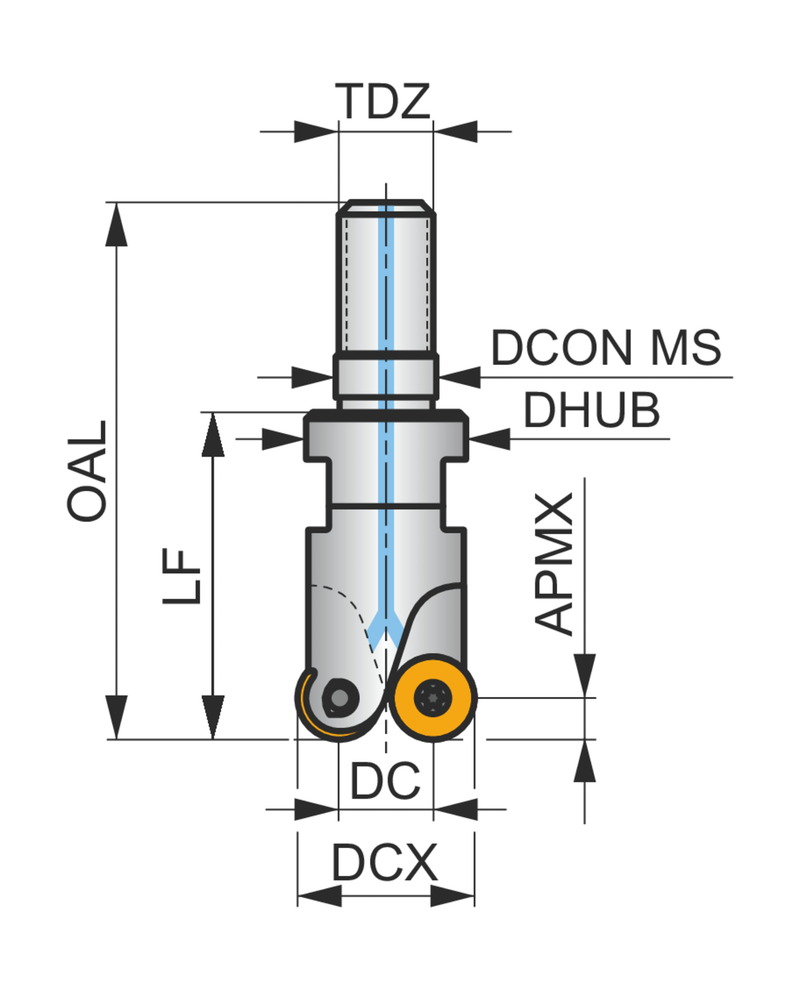

Insert Geometry
Depth of Cut Max — mm (APMX)2.0 mm
Dimensions
Cutting Diameter — in (DC)0.709"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Functional Length — mm (LF)28.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)M12
Tool Information
Tool DesignSRD07
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999276
EAN3603603827929
File Type Download
25E5R028M12-SRD07-CF — 3D Model STP Download
25E5R028M12-SRD07-CF — 2D Model DXF Download
25E5R028M12-SRD07-CF — Line Drawing PDF Download
