12E3R020M06-SRD05-CF
12E3R020M06-SRD05-CF
12E3R020M06-SRD05-CF

12E3R020M06-SRD05-CF

UGC DOR7999278
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$329.00 CAD - $329.00 CAD
$329.00 CAD
$329.00 CAD - $329.00 CAD
$329.00 CAD

Vendu en lots de : 1

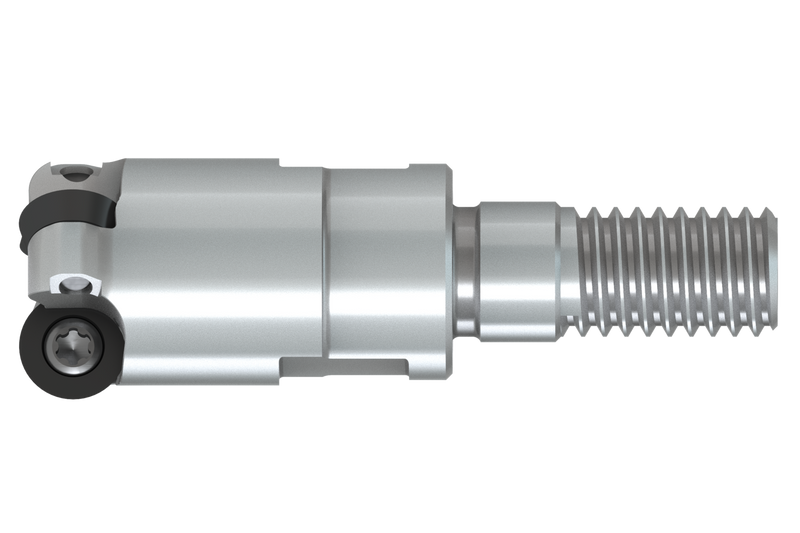

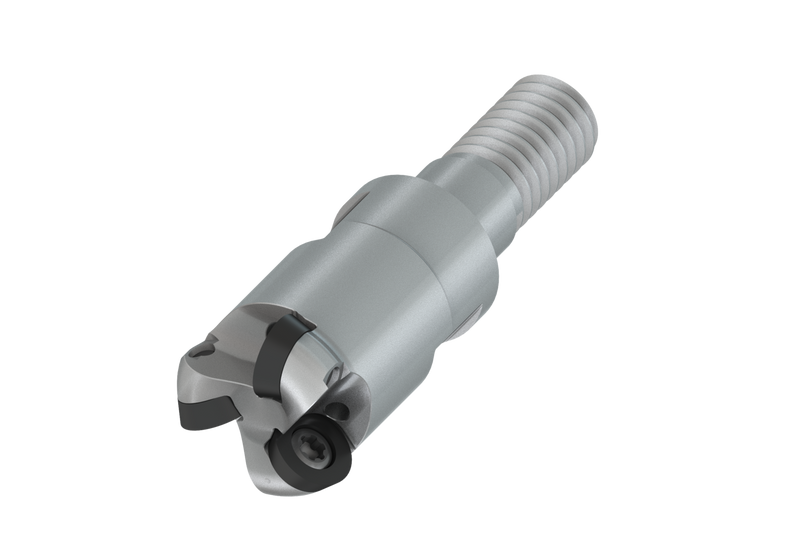

Fraise à surfacer à copier avec géométrie positive/négative qui utilise 3 plaquettes simple face RD.. 0501MO.., diamètre de coupe jusqu'à 12 mm maximum avec queue filetée M6 pour porte-outils modulaires standard, longueur fonctionnelle de 20 mm et longueur de dépassement de 35 mm, arrosage central pour le surfaçage, le fraisage en plongée, le ramping, le fraisage progressif en plongée et le fraisage hélicoïdal avec une profondeur de coupe maximale de 1,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)12E3R020M06-SRD05-CF
Product Number7999278
Product FamilySRD05

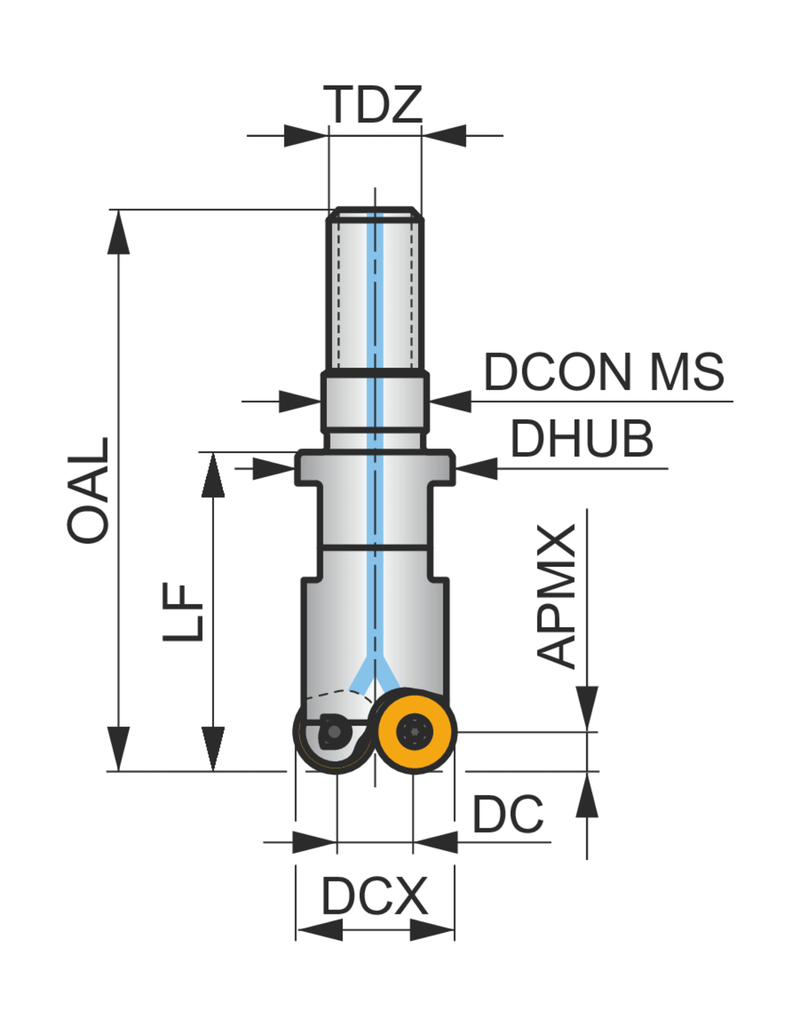

Insert Geometry
Depth of Cut Max — mm (APMX)1.5 mm
Dimensions
Cutting Diameter — in (DC)0.276"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)1.378"
Overall Length — mm (OAL)35.0 mm
Functional Length — mm (LF)20.0 mm
Connection Dia. — in (DCON)0.256"
Connection Dia. — mm (DCON)6.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)M6
Tool Information
Tool DesignSRD05
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999278
EAN3603603827943
File Type Download
12E3R020M06-SRD05-CF — 3D Model STP Download
12E3R020M06-SRD05-CF — 2D Model DXF Download
12E3R020M06-SRD05-CF — Line Drawing PDF Download
