15E4R020M08-SRD05-CF
15E4R020M08-SRD05-CF
15E4R020M08-SRD05-CF

15E4R020M08-SRD05-CF

UGC DOR7999279
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$385.00 CAD - $385.00 CAD
$385.00 CAD
$385.00 CAD - $385.00 CAD
$385.00 CAD

Vendu en lots de : 1

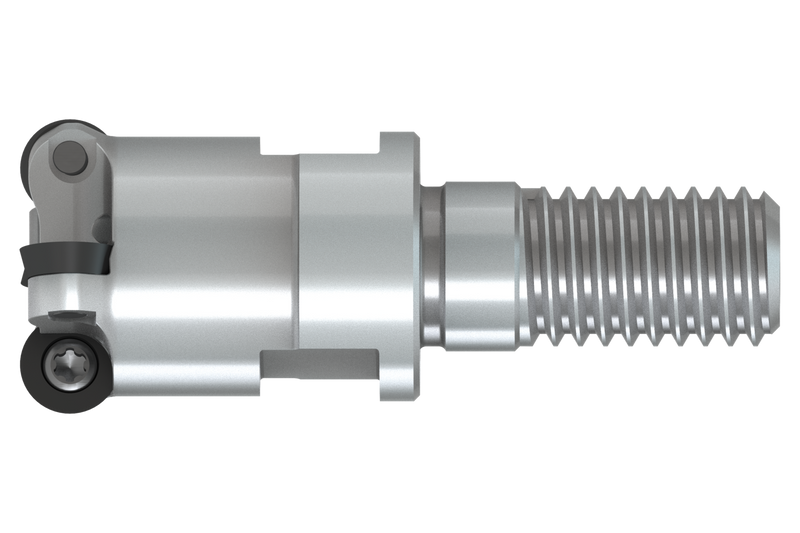

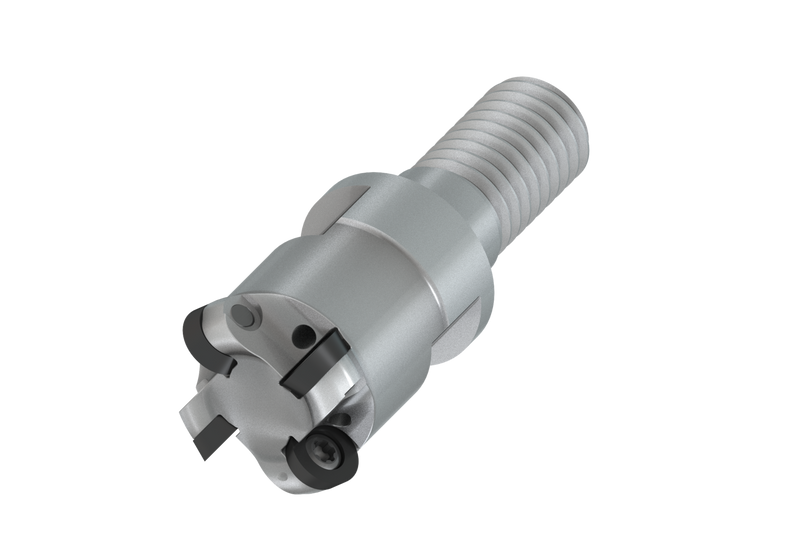

Fraise à copier avec géométrie positive/négative qui utilise 4 plaquettes simple-face RD... 0501MO..., diamètre de coupe maximal de 15 mm avec queue filetée M8 pour porte-outils modulaires standard, longueur fonctionnelle de 20 mm et en saillie de 38 mm, arrosage central pour le surfaçage, la copiage, l'usinage en ramping, le plongée progressive et l'usinage hélicoïdal avec une profondeur de coupe maximale de 1,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)15E4R020M08-SRD05-CF
Product Number7999279
Product FamilySRD05
Insert Geometry

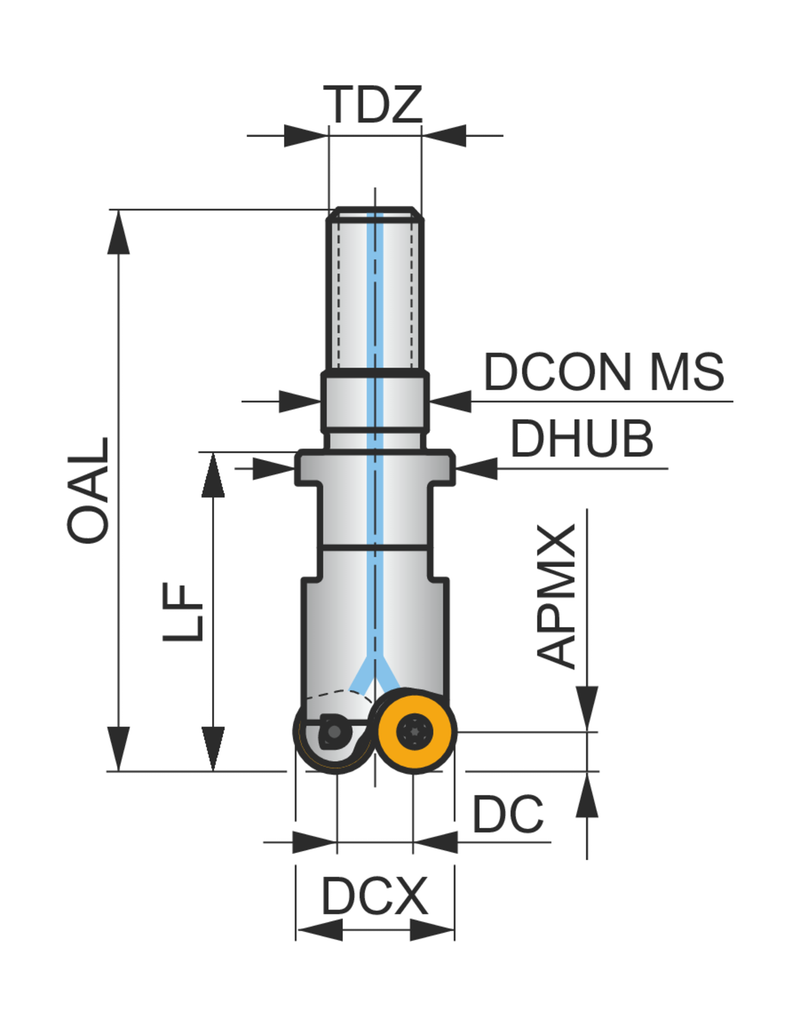

Depth of Cut Max — mm (APMX)1.5 mm
Dimensions
Cutting Diameter — in (DC)0.394"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)1.496"
Overall Length — mm (OAL)38.0 mm
Functional Length — mm (LF)20.0 mm
Connection Dia. — in (DCON)0.335"
Connection Dia. — mm (DCON)8.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M8
Tool Information
Tool DesignSRD05
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999279
EAN3603603827950
File Type Download
15E4R020M08-SRD05-CF — 3D Model STP Download
15E4R020M08-SRD05-CF — 2D Model DXF Download
15E4R020M08-SRD05-CF — Line Drawing PDF Download
