42E4R042M16-SCRD12-CF
42E4R042M16-SCRD12-CF
42E4R042M16-SCRD12-CF

42E4R042M16-SCRD12-CF

UGC DOR7999323
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$436.00 CAD - $436.00 CAD
$436.00 CAD
$436.00 CAD - $436.00 CAD
$436.00 CAD

Vendu en lots de : 1

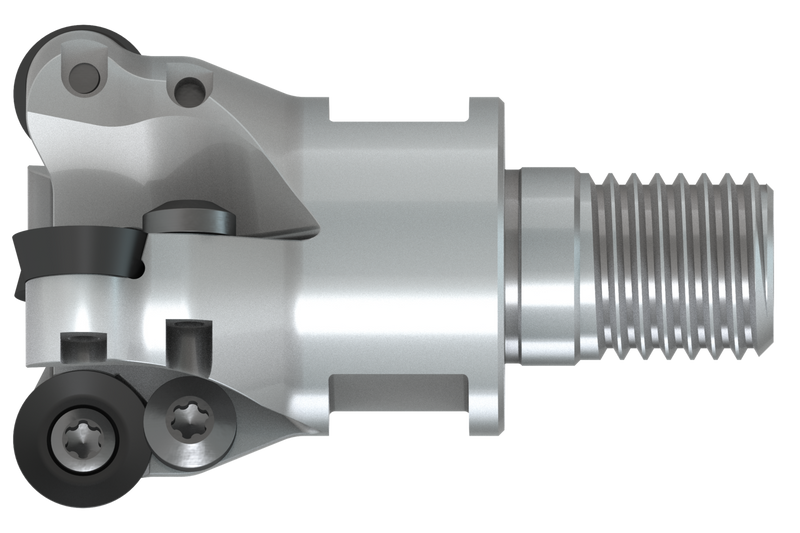

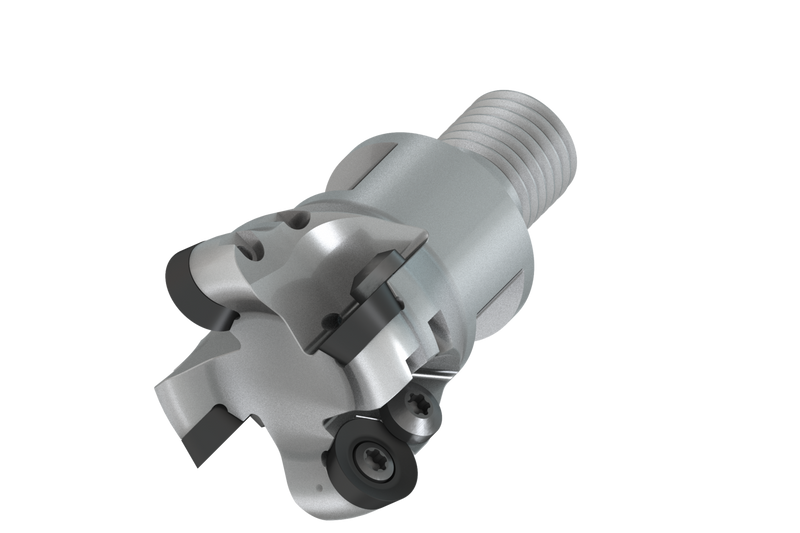

Fraise à surfacer à copier à double géométrie négative qui utilise 4 plaquettes simple face RD... 12T3MOT ou RDHT 12T3MO-FA, diamètre de coupe maximal de 42 mm avec queue filetée M16 pour les porte-outils modulaires standard, longueur fonctionnelle de 42 mm et longueur de dépassement de 65 mm, arrosage central pour le surfaçage, le fraisage en plongée, le fraisage en ramping, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 3 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)42E4R042M16-SCRD12-CF
Product Number7999323
Product FamilySRD12

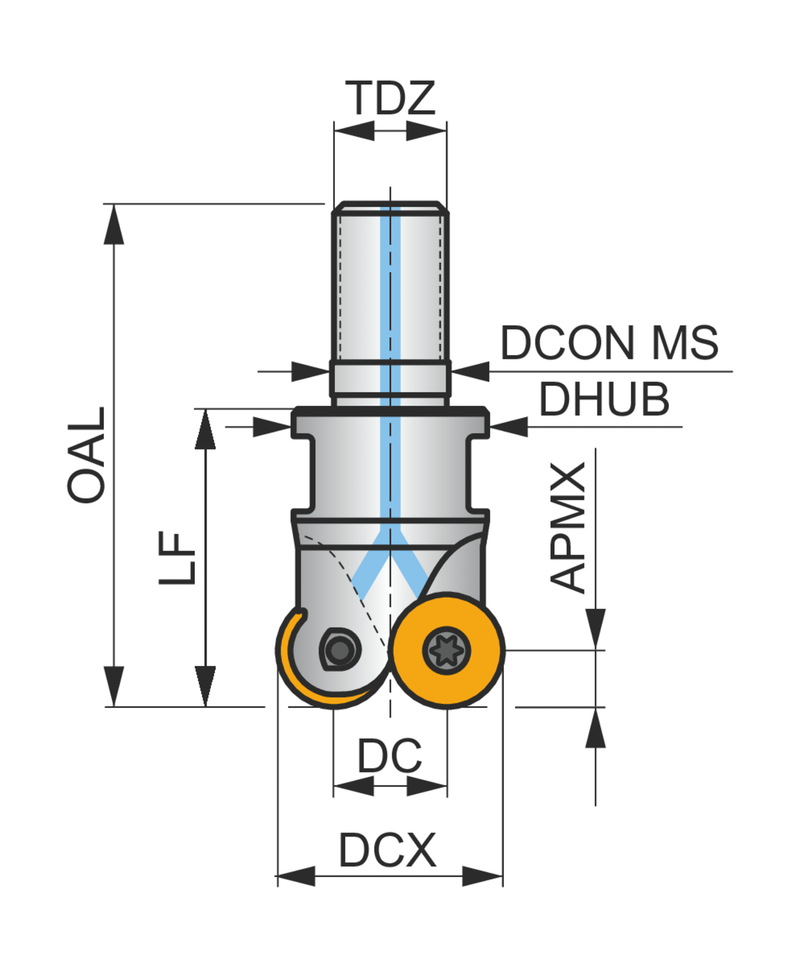

Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm
Dimensions
Cutting Diameter — in (DC)1.181"
Cutting Diameter — mm (DC)30.0 mm
Overall Length — in (OAL)2.559"
Overall Length — mm (OAL)65.0 mm
Functional Length — mm (LF)42.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSRD12
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999323
EAN3603603827998
File Type Download
42E4R042M16-SCRD12-CF — 3D Model STP Download
42E4R042M16-SCRD12-CF — 2D Model DXF Download
42E4R042M16-SCRD12-CF — Line Drawing PDF Download
