50A05R-SCMORD12-CF
50A05R-SCMORD12-CF
50A05R-SCMORD12-CF

50A05R-SCMORD12-CF

UGC DOR7999325
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$530.00 CAD - $530.00 CAD
$530.00 CAD
$530.00 CAD - $530.00 CAD
$530.00 CAD

Vendu en lots de : 1

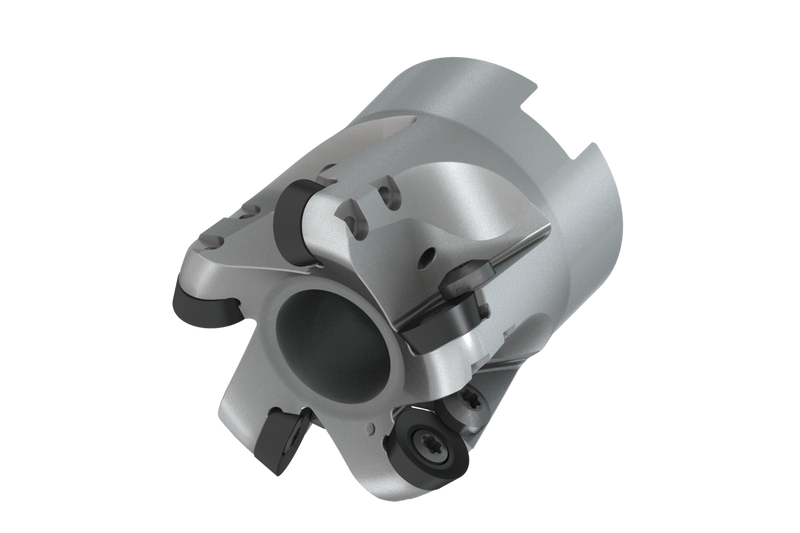

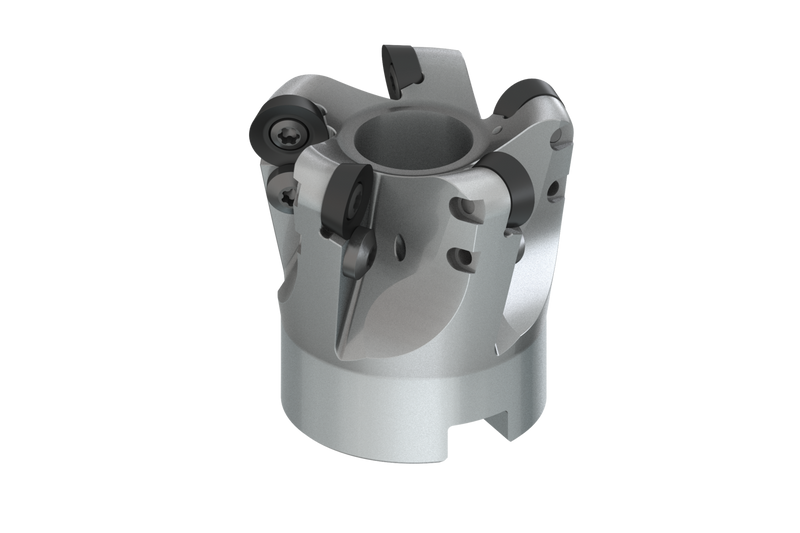

Fraise à copier avec géométrie double positive qui utilise 5 plaquettes simple face RD.. 12T3MOT ou RDHT 12T3MO-FA, diamètre de coupe maximum 50mm avec alésage de connexion de 22mm selon DIN 8030-A, longueur fonctionnelle 50mm et arrosage interne pour le surfaçage, le copiage, le ramping, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 3mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A05R-SCMORD12-CF
Product Number7999325
Product FamilySRD12
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

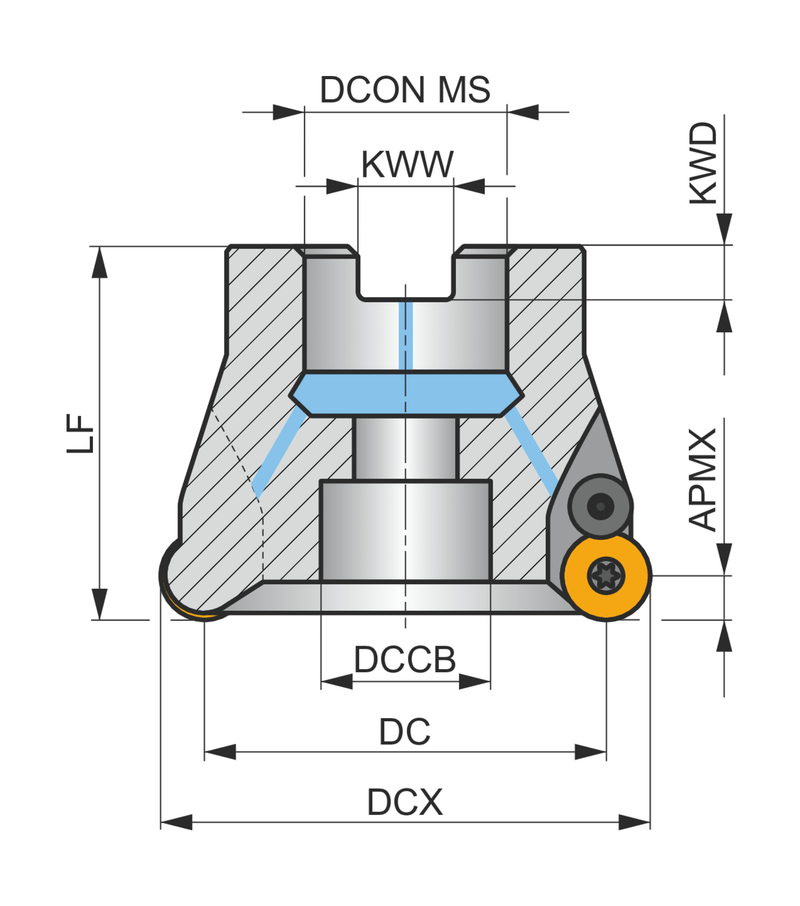

Dimensions
Cutting Diameter — in (DC)1.496"
Cutting Diameter — mm (DC)38.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSRD12
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999325
EAN3603603830011
File Type Download
50A05R-SCMORD12-CF — 3D Model STP Download
50A05R-SCMORD12-CF — 2D Model DXF Download
50A05R-SCMORD12-CF — Line Drawing PDF Download
